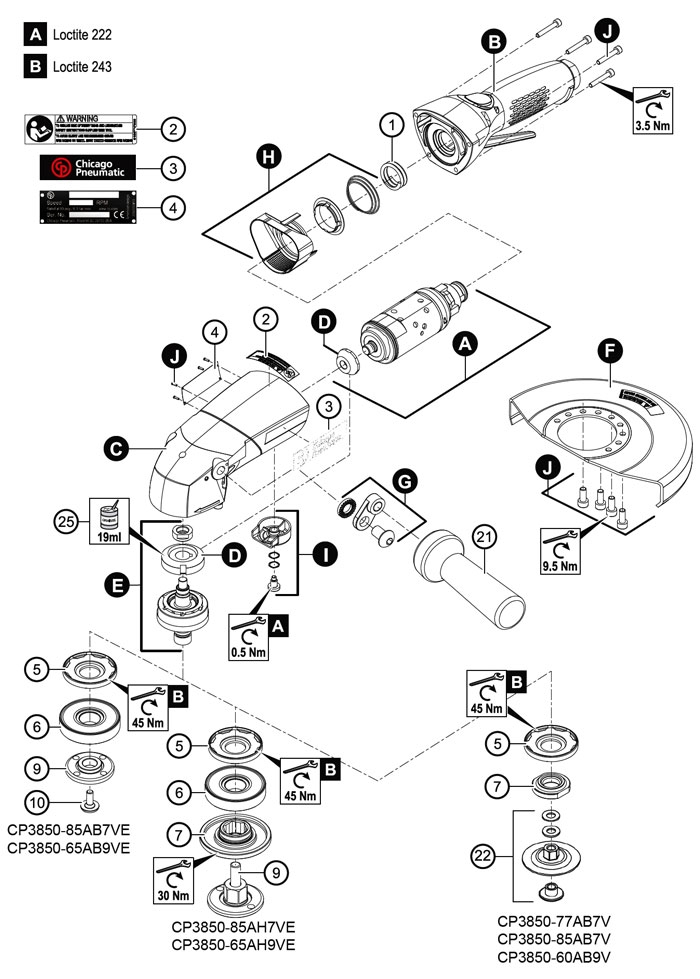

Chicago Pneumatic CP3850-60AB Sander Repair Parts



Index
No.
Part No. Description No.
Req'd
1
6156811670
Spring cylindrical
1
2
6158713860
Warning label
1
3
2050553403
CP plate
1
4
2050553413
Name plate
1
5
6156731760
Ring screw
1
6
6159901810
Autobalancer
(for CP3850-85AB7VE & 65AB9VE)
1
6
6159901940
Autobalancer
(for CP3850-85AH7VE & 65AH9VE)
1
7
6155031530
Rear flange
(for CP3850-77AB7V, 85AB7V & 60AB9V)
1
7
6155031640
Rear flange
(for CP3850-85AH7VE & 65AH9VE)
1
8
6156080490
Nut 5/8" UNC27
(for CP3850-77AB7V, 85AB7V & 60AB9V)
1
9
6155020670
Front flange
(for CP3850-85AB7VE & 65AB9VE)
1
9
6155020850
Front flange
(for CP3850-85AH7VE & 65AH9VE)
1
10
6156140760
Safety screw
(for CP3850-85AB7VE & 65AB9VE)
1
21
6155760660
Vibration-damping side handle
1
22
C087920
Wheel adaptor
(for CP3850-77AB7V, 85AB7V & 60AB9V)
1
A
6153942825
Motor complete 8500 rpm
(for CP3850-85AB7VE & 85AH7VE)
1
A
6153942815
Motor complete 7700 rpm
(for CP3850-77AB7V & 85AB7V)
1
A
6153942805
Motor complete 6500 rpm
(for CP3850-65AB9VE & 65AH9VE)
1
A
6153942795
Motor complete 6000 rpm
(for CP3850-60AB9V)
1
A8
6154570570
Governor 15,000 rpm
(for CP3850-85AB9VE, 85AH7VE & 60AB9V)
1
A8
6154570560
Governor 14,000 rpm
(for CP3850-77AB7V & 85AB7V)
1
A8
6154570580
Governor 16,000 rpm
(for CP3850-65AB9VE & 65AH9VE)
1
A1
6153977315
Rear End Plate Kit
-
-
-
Rear end plate
1
-
-
Shaft
1
-
-
Valve
1
-
-
Screw
2
-
-
Needle (2 x 8)
1
-
-
O-Ring (19.1 x 1.6) 1
-
-
Waved washer
1
-
-
Ball bearing
1
A2
6153977325
Front End Plate Kit
-
-
-
Front end plate
1
-
-
Spacer
1
-
-
Ball bearing
1
-
-
O-Ring (35.1 x 1.6) 1
A3
6153977335
Governor Housing Kit
-
-
-
Pin spiral (2 x 8)
2
-
-
O-Ring (15.6 x 1.78) 1
-
-
Governor housing
1
-
-
Piston
4
A4
2050553543
Motor Service Kit
-
A7
6154340665
Blade kit
1
-
-
Waved washer
1
-
-
Ball bearing
1
-
-
Ball bearing
1
-
-
O-Ring (35.1 x 1.6) 1
-
-
Pin spiral (2 x 8)
2
-
-
O-Ring (15.6 x 1.78)
1
A5
6154001550
Cylinder
1
A6
6154261310
Rotor
1
A7
6154340665
Blade Kit
1
B
6153900575
Handle complete
1
B1
6153977355
Inlet Kit
-
-
-
Spring conical
1
-
-
Ball 021
1
-
-
O-Ring (25 x 2.5)
1
-
-
Ball seat
1
-
-
Screen
1
B2
6153977365
Latch Lever Kit
-
-

Latch lever
1
-

Latch lever spring
1
-

Grooved pin (4 x 26) G02
1
B3
6153977375
Lever Kit
-
-
-
Lever
1
-
-
Needle (6 x 59.8)
1
-
-
Grooved pin (4 x 36) G02
1
-
-
Spring cylindrical
1
B4
6157460740
Bushing inlet 1/2" NPT
1
B5
6157301910
Inlet bushing
1
B6
466703
Ball
1
C
6153932905
Housing complete
1
C1
6153974060
Stopfinger complete
1
D1
6153977395
Bevel Gear Paired Kit 1
(for CP3850-85AB7VE, 85AH7VE, 77AB7V & 85AB7V)
-
-
-
Pinion 1
-
-
Bevel gear 1
D2
6153977405
Bevel Gear Paired Kit 2
(for CP3850-65AB9VE, 65AH9VE, & 60AB9V)
-
-
-
Pinion
1
-
-
Bevel gear
1
E1
6153977175
Spindle 5/8" 6500 rpm
(for CP3850-65AB9VE)
1
E2
6153977185
Spindle H 6500 rpm
(for CP3850-65AH9VE)
1
E3
6153977195
Spindle H 8500 rpm
(for CP3850-85AH7VE)
1
E4
6153977205
Spindle 5/8" 8500 rpm
(for CP3850-85AB7VE)
1
E5
6153977215
Spindle 5/8" 7700 rpm
(for CP3850-77AB7V & 85AB7V)
1
E6
6153977225
Spindle 5/8" 6000 rpm
(for CP3850-60AB9V)
1
E9
2050553553
Spindle Service Kit
-
-
-
Ball bearing
1
-
-
Parallel key (4 x 4 x 6 x h9)
1
-
-
Locking nut
1
-
-
Grease deflector
1
E10
6155011290
Spindle 5/8" for autobalancer
(for CP3850-85AB7VE & 65AB9VE)
1
E11
6155011280
Spindle H for autobalancer
(for CP3850-85AH7VE & 65AH9VE)
1
E12
6155011300
Spindle 5/8" US
(for CP3850-77AB7V, 85AB7V & 60AB9V)
1
E13
6155011310
Spindle 5/8" for autobalancer
-
F1
6155042115
Guard 7" Kit
(for CP3850-85AB7VE & 85AH7VE)
-
-
-
Guard 7"
1
-
-
Guard warning label
1
-
-
Screw hex head cap (M5 x 12) 4
F2
6155042125
Guard 9" Kit
(for CP3850-65AB9VE & 65AH9VE)
-
-
-
Guard 9"
1
-
-
Guard warning label 1
-
-
Screw hex head cap (M5 x 12) 4
F3
6155042135
Guard 7" US Kit
(for CP3850-77AB7V & 85AB7V)
-
-
-
Guard 7" US 1
-
-
Guard warning label 1
-
-
Screw hex head cap (M5 x 12) 4
F4
2050559613
Guard 9" US Kit
(for CP3850-60AB9V)
-
-
-
Guard 9" US
1
-
-
Guard warning label 1
-
-
Screw hex head cap (M5 x 12)
4
G
6153977415
Rotating Handle Support Kit
-
-

Screw hex button (M10 x 16)
1
-

Handle bracket
1
-

Rotating spacer
1
H
6153977425
Valve Kit
-
-
-
Partition
1
-
-
Vlave
1
-
-
Spring conical
1
I
6153977435
Rotating Exhaust Kit
-
-
-
Rotating exhaust
1
-
-
Washer head screw
1
-
-
M4 washer curved spring
2
J
6153977445
Screw Kit
-
-

Screw hex head cap (M4 x 25)
4
-

Drive screw
4
-

Screw hex head cap (M5 x 12)
4
K
2050553433
Global Service Kit
-
-
-
Latch lever spring

-
-
Needle (6 x 59.8)

-
-
Grooved pin (4 x 36) G02
-
-
Grooved pin (4 x 36) G02

-
-
O-Ring (25 x 2.5)
-
-
Spring cylinderical

-
-
O-Ring (47.35 x 1.78)
-
-
O-Ring (32.1 x 1.6)

-
-
Needle bearing

-
12
6155421040
Nut
-
13
6155031460
Rear flange balancer
-
15
6158020100
Pin spanner (35 mm)
-
16
6158010770
Spanner flat
-
17
6158020560
Hexagon wrench (6 mm)
-
18
6156140340
Safety screw
-
21
6155760660
Vibration-damping side handle
-
22
6159901490
Grease gun
-
25
6159901480
Grease for bevel gear (1 kg)
-
14
C087920
Wheel adapter
-
11
6155031030
Rear flange
-
12
6155421040
Nut
-
15
6158020100
Pin spanner (35 mm)
-
16
6158010770
Spanner flat
-
17
6158020560
Hexagon wrench (6 mm)
-
18
6156140340
Safety screw
-
