You are here: Home > Chicago Pneumatic Air Sanders and Polishers > Chicago Pneumatic CP3650-120AB Sander Repair Parts

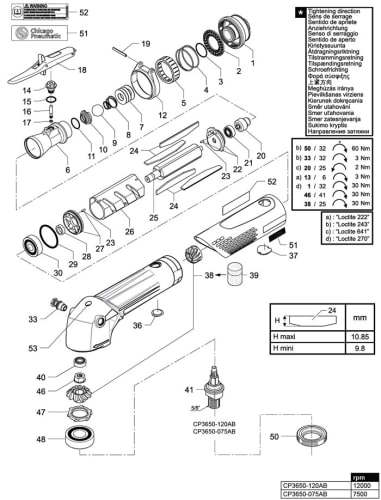

Chicago Pneumatic CP3650-120AB Sander Repair Parts



Index
No.
Part No. Description No.
Req'd
A
2050556023
Silencer Kit
-
2
-
Silencer
1
3
-
O-Ring
1
5
-
Valve
1
B
6153967360
Bushing Complete
-
14
-
Bushing
1
15
-
O-Ring
1
16
-
Pin
1
17
-
O-Ring
1
C
2050556033
Valve Kit
-
8
-
Spring conical
1
9
-
Ball
1
10
-
Valve seat
1
11
-
O-Ring
1
D
2050556043
Rear Endplate Kit
-
21
-
Bearing
1
22
-
Rear endplate
1
E
2050556063
Blades Kit
-
24
-
Blades
4
F
2050556053
Front Endplate Kit
-
27
-
Front endplate
1
28
-
Plate spacer
1
29
-
O-Ring
1
30
-
Bearing
1
G
6153933290
Housing Complete Kit (7,500 rpm)
-
32
-
Housing
1
33
-
Stopfinger complete
1
53
-
Greaser
1
31
-
Insulator (7,500 rpm)
1
37
-
External cover
1
51
-
Left side brand name plate
1
52
-
Warning label
1
36
-
Cover
1
1
-
Adapter
1
39
396.001
Grease kit (5 g)
1
G
6153933320
Housing Complete Kit (12,000 rpm)
-
32
-
Housing
1
33
-
Stopfinger complete
1
53
-
Greaser
1
31
-
Insulator (12,000 rpm)
1
37
-
External cover
1
51
-
Left side brand name plate
1
52
-
Warning label
1
36
-
Cover
1
1
-
Adapter
1
39
396.001 Grease kit (5 g) 1
H
399.480
Bevel Gear Paired Set (120AB) -
38
-
Bevel gear 1
39
-
Grease kit (5 g) 1
H
6153971710
Bevel Gear Paired Set (075AB)
-
38
-
Bevel gear
1
39
-
Grease kit (5 g)
1
I
2050556083
Output Bearing Kit
-
40
-
Bearing 1
46
-
Nut
1
47
-
Deflector
1
48
-
Bearing 1
J
2050556073
Motor Bearing Kit
-
30
-
Bearing
1
21
-
Bearing
1
K
2050556013
Small Parts Kit
-
46
-
Nut
1
47
-
Defelctor
1
23
-
Pin
1
19
-
Pin
1
4
-
Spring cylindrical
1
-
1
6153967390
Adapter
1
7
6156452290
Disc spring
1
12
6155960040
Lever bracket
1
18
6153967350
Safety lever
1
20
6154570490
Governor 19K 1
20
6154570500
Governor 15K
1
25
6154261200
Rotor
1
26
6154001480
Cylinder
1
41
6155011130
Shaft 5/8"
1
46
605.86
Nut
1
50
673.98
Plug
1
L
2050556003
Tune-up Kit
-
-
2050556063
Blade Kit
-
3
-
O-Ring
1
11
-
O-Ring 1
15
-
O-Ring 1
17
-
O-Ring 1
29
-
O-Ring 1
Sort By:
2050556003 Chicago Pneumatic Tune Up Kit Cp3650 2050556003 Chicago Pneumatic Tune Up Kit Cp3650

2050556003 Chicago Pneumatic Tune Up Kit Cp3650

Price $40.70
2050556013 Chicago Pneumatic Small Part Kit Cp3650 2050556013 Chicago Pneumatic Small Part Kit Cp3650

2050556013 Chicago Pneumatic Small Part Kit Cp3650

Price $30.48
2050556023 Chicago Pneumatic Silencer Kit 2050556023 Chicago Pneumatic Silencer Kit

2050556023 Chicago Pneumatic Silencer Kit

Price $49.40
2050556033 Chicago Pneumatic Valve Kit 2050556033 Chicago Pneumatic Valve Kit

2050556033 Chicago Pneumatic Valve Kit

Price $18.96
2050556043 Chicago Pneumatic Rear End Plate Kit 2050556043 Chicago Pneumatic Rear End Plate Kit

2050556043 Chicago Pneumatic Rear End Plate Kit

Price $121.83
2050556053 Chicago Pneumatic Front End Plate Kit 2050556053 Chicago Pneumatic Front End Plate Kit

2050556053 Chicago Pneumatic Front End Plate Kit

Price $149.77
2050556063 Chicago Pneumatic Blade Kit (Set Of 4) 2050556063 Chicago Pneumatic Blade Kit (Set Of 4)

2050556063 Chicago Pneumatic Blade Kit (Set Of 4)

Price $35.80
2050556073 Chicago Pneumatic Motor Bearing Kits 2050556073 Chicago Pneumatic Motor Bearing Kits

2050556073 Chicago Pneumatic Motor Bearing Kits

Price $73.40
2050556083 Chicago Pneumatic Output Bearing Kit 2050556083 Chicago Pneumatic Output Bearing Kit

2050556083 Chicago Pneumatic Output Bearing Kit

Price $55.98
396.001 Chicago Pneumatic Grease Kit 396.001 Chicago Pneumatic Grease Kit (5 gram)

396.001 Chicago Pneumatic Grease Kit (5 gram)

Price $12.79
605.86 Chicago Pneumatic Nut 605.86 Chicago Pneumatic Nut

605.86 Chicago Pneumatic Nut

Price $8.74
6153933290 Chicago Pneumatic Housing Complete Kit 7500Rpm 6153933290 Chicago Pneumatic Housing Complete Kit 7500Rpm

6153933290 Chicago Pneumatic Housing Complete Kit 7500Rpm

Price $650.78
6153933320 Chicago Pneumatic Housing Complete Kit 12000Rpm 6153933320 Chicago Pneumatic Housing Complete Kit 12000Rpm

6153933320 Chicago Pneumatic Housing Complete Kit 12000Rpm

Price $650.78
6153967350 Chicago Pneumatic Safety Lever 6153967350 Chicago Pneumatic Safety Lever

6153967350 Chicago Pneumatic Safety Lever

Price $63.90
6153967360 Chicago Pneumatic Bushing Complete 6153967360 Chicago Pneumatic Bushing Complete

6153967360 Chicago Pneumatic Bushing Complete

Price $133.50
6153967390 Chicago Pneumatic Adapter Complete 6153967390 Chicago Pneumatic Adapter Complete

6153967390 Chicago Pneumatic Adapter Complete

Price $148.87
6153971710 Chicago Pneumatic Bevel Gear Paired Set 6153971710 Chicago Pneumatic Bevel Gear Paired Set

6153971710 Chicago Pneumatic Bevel Gear Paired Set

Price $328.50
6154001480 Chicago Pneumatic Cylinder 6154001480 Chicago Pneumatic Cylinder

6154001480 Chicago Pneumatic Cylinder

Price $418.19
6154261200 Chicago Pneumatic Rotor - 4 Blade 6154261200 Chicago Pneumatic Rotor - 4 Blade

6154261200 Chicago Pneumatic Rotor - 4 Blade

Price $380.30
6154570490 Chicago Pneumatic Governor 19K 6154570490 Chicago Pneumatic Governor 19K

6154570490 Chicago Pneumatic Governor 19K

Price $133.07
6154570500 Chicago Pneumatic Governor 15K 6154570500 Chicago Pneumatic Governor 15K

6154570500 Chicago Pneumatic Governor 15K

Price $184.65
6155011130 Chicago Pneumatic Output Shaft 5/8" Ka11120By 6155011130 Chicago Pneumatic Output Shaft 5/8" Ka11120By

6155011130 Chicago Pneumatic Output Shaft 5/8" Ka11120By

Price $240.46
6155960040 Chicago Pneumatic Lever Bracket 6155960040 Chicago Pneumatic Lever Bracket

6155960040 Chicago Pneumatic Lever Bracket

Price $142.50
6156452290 Chicago Pneumatic Disc Spring 6156452290 Chicago Pneumatic Disc Spring

6156452290 Chicago Pneumatic Disc Spring

Price $5.48
673.98 Chicago Pneumatic Plug 673.98 Chicago Pneumatic Plug

673.98 Chicago Pneumatic Plug

Price $65.32
CP3650-120AB Chicago Pneumatic 5" Disc 2.3Hp Industrial Angle Sander CP3650-120AB Chicago Pneumatic 5" Disc 2.3Hp Industrial Angle Sander

CP3650-120AB Chicago Pneumatic 5" Disc 2.3Hp Industrial Angle Sander - Industrial angle sander. Highest durability in demanding applications up to 2,000 hours maintenance intervals. Superior torque for maximal productivity. Superior ergonomics.

Price $1,243.89


Chicago Pneumatic CP3650-120AB Sander Repair Parts
