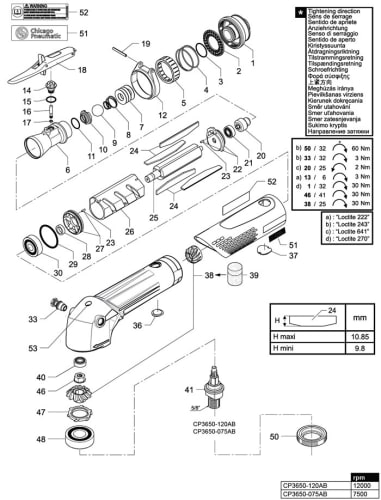

Chicago Pneumatic CP3650-075AB Sander Repair Parts

Index No.	Part No.	Description	No. Req'd
A	2050556023	Silencer Kit	-
2	-	Silencer	1
3	-	O-Ring	1
5	-	Valve	1
B	6153967360	Bushing Complete	-
14	-	Bushing	1
15	-	O-Ring	1
16	-	Pin	1
17	-	O-Ring	1
C	2050556033	Valve Kit	-
8	-	Spring conical	1
9	-	Ball	1
10	-	Valve seat	1
11	-	O-Ring	1
D	2050556043	Rear Endplate Kit	-
21	-	Bearing	1
22	-	Rear endplate	1
E	2050556063	Blades Kit	-
24	-	Blades	4
F	2050556053	Front Endplate Kit	-
27	-	Front endplate	1
28	-	Plate spacer	1
29	-	O-Ring	1
30	-	Bearing	1
G	6153933290	Housing Complete Kit (7,500 rpm)	-
32	-	Housing	1
33	-	Stopfinger complete	1
53	-	Greaser	1
31	-	Insulator (7,500 rpm)	1
37	-	External cover	1
51	-	Left side brand name plate	1
52	-	Warning label	1
36	-	Cover	1
1	-	Adapter	1
39	396.001	Grease kit (5 g)	1
G	6153933320	Housing Complete Kit (12,000 rpm)	-
32	-	Housing	1
33	-	Stopfinger complete	1
53	-	Greaser	1
31	-	Insulator (12,000 rpm)	1
37	-	External cover	1
51	-	Left side brand name plate	1
52	-	Warning label	1
36	-	Cover	1
1	-	Adapter	1
39	396.001	Grease kit (5 g)	1
H	399.480	Bevel Gear Paired Set (120AB)	-
38	-	Bevel gear	1
39	-	Grease kit (5 g)	1
H	6153971710	Bevel Gear Paired Set (075AB)	-
38	-	Bevel gear	1
39	-	Grease kit (5 g)	1
I	2050556083	Output Bearing Kit	-
40	-	Bearing	1
46	-	Nut	1
47	-	Deflector	1
48	-	Bearing	1
J	2050556073	Motor Bearing Kit	-
30	-	Bearing	1
21	-	Bearing	1
K	2050556013	Small Parts Kit	-
46	-	Nut	1
47	-	Defelctor	1
23	-	Pin	1
19	-	Pin	1
4	-	Spring cylindrical	1
-
1	6153967390	Adapter	1
7	6156452290	Disc spring	1
12	6155960040	Lever bracket	1
18	6153967350	Safety lever	1
20	6154570490	Governor 19K	1
20	6154570500	Governor 15K	1
25	6154261200	Rotor	1
26	6154001480	Cylinder	1
41	6155011130	Shaft 5/8"	1
46	605.86	Nut	1
50	673.98	Plug	1
L	2050556003	Tune-up Kit	-
-	2050556063	Blade Kit	-
3	-	O-Ring	1
11	-	O-Ring	1
15	-	O-Ring	1
17	-	O-Ring	1
29	-	O-Ring	1

Sort By:

2050556003 Chicago Pneumatic Tune Up Kit Cp3650

Price $40.70

2050556013 Chicago Pneumatic Small Part Kit Cp3650

Price $30.48

2050556023 Chicago Pneumatic Silencer Kit

Price $49.40

2050556033 Chicago Pneumatic Valve Kit

Price $18.96

2050556043 Chicago Pneumatic Rear End Plate Kit

Price $121.83

2050556053 Chicago Pneumatic Front End Plate Kit

Price $149.77

2050556063 Chicago Pneumatic Blade Kit (Set Of 4)

Price $35.80

2050556073 Chicago Pneumatic Motor Bearing Kits

Price $73.40

2050556083 Chicago Pneumatic Output Bearing Kit

Price $55.98

396.001 Chicago Pneumatic Grease Kit (5 gram)

Price $12.79

605.86 Chicago Pneumatic Nut

Price $8.74

6153933290 Chicago Pneumatic Housing Complete Kit 7500Rpm

Price $650.78

6153933320 Chicago Pneumatic Housing Complete Kit 12000Rpm

Price $650.78

6153967350 Chicago Pneumatic Safety Lever

Price $63.90

6153967360 Chicago Pneumatic Bushing Complete

Price $133.50

6153967390 Chicago Pneumatic Adapter Complete

Price $148.87

6153971710 Chicago Pneumatic Bevel Gear Paired Set

Price $328.50

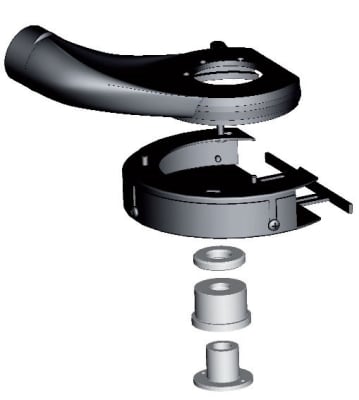

6153978300 Chicago Pneumatic Dust Extract Kit KA16 Cutting

6153978300 Chicago Pneumatic Dust Extract Kit Ka16 Cutting

Price $435.54

6154001480 Chicago Pneumatic Cylinder

Price $418.19

6154261200 Chicago Pneumatic Rotor - 4 Blade

Price $380.30

6154570490 Chicago Pneumatic Governor 19K

Price $133.07

6154570500 Chicago Pneumatic Governor 15K

Price $184.65

6155011130 Chicago Pneumatic Output Shaft 5/8" Ka11120By

Price $240.46

6155960040 Chicago Pneumatic Lever Bracket

Price $142.50

6156452290 Chicago Pneumatic Disc Spring

Price $5.48

673.98 Chicago Pneumatic Plug

Price $65.32

CP3650-075AB Chicago Pneumatic 7" Disc 2.3Hp Industrial Angle Sander

CP3650-075AB Chicago Pneumatic 7" Disc 2.3Hp Industrial Angle Sander - Industrial angle sander. Highest durability in demanding applications up to 2,000 hours maintenance intervals. Superior torque for maximal productivity. Superior ergonomics.

Price $1,217.07
