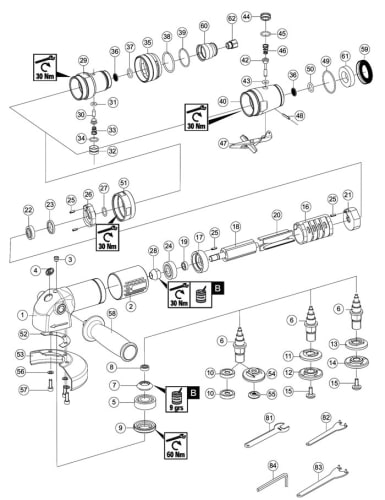

Chicago Pneumatic CP3450-12AC4 Angle Grinder Repair Parts



Index
No. 		Part No. Description No.
Req'd
1
 6155653010
 Housing
 1
2
 6155701000
 Rear sleeve
 1
3
 675.10
 Greaser
 1
4
 6158727970
 CP LOGO
 1
5
 758.120
 Bearing 6203 LLB K5 (17 x 40 x 12)
 1
6
 6155011210
 Output shaft M14 CP3450-12AA5 1
-
 6155011200
 Output shaft 5/8" P3450-12AB5
 1
-
 6155011190
 Output shaft 3/8" CP3450-12AC..
 1
7
 6154841590
 Spiral bevel gear
 1
8
 6157580630
 Bearing 625 ZZ (5 x 16 x 5)
 1
9
 6156740000
 Lock nut
 1
10
 2050556513
 Flange nut 3/8" CP3450-12AC.4
 2
54
 2050556483
 Rear flange 3/8" CP3450-12AC.4
 1
55
 2050556493
 Front flange nut 3/8" CP3450-12AC.4
 1
11
 6155031600
 Rear flange 5/8" CP3450-12AB5 1
12
 6155020780
 Flange nut 5/8" CP3450-12AB5
 1
13
 6155031590
 Rear flange M14 CP3450-12AA5 1
-
 2050533943
 Rear flange 3/8" CP3450-12AC45 1
14
 6155020770
 Flange nut M14 CP3450-12AA5 1
-
 2050533973
 Flange nut 3/8" CP3450-12AC45
 1
15
 6156140900
 Screw lock (for M14 & 5/8" spindles)
 1
16
 6154001460
 Cylinder
 1
17
 6154201430
 Front flange
 1
18
 6154261180
 Rotor
 1
19
 6156611030
 Adjust washer
 1
20
 2050547623
 Blades (set of 4)
 1
21
 6154221600
 Rear flange
 1
22
 6157581380
 Bearing 608Z (8 x 22 x7)
 1
23
 6156731330
 Motor end cap
 1
24
 6157510100
 Bearing 6200 (10 x 30 x 9)
 1
25
 6156350370
 Pin spring (3 x 10)
 4
26
 6153212340
 Pressing cover
 1
27
 6156582970
 O-Ring (11.8 x 1.8)
 1
28
 6154841580
 Gear
 1
29
 6153071580
 Rear body (CP3450-12ACR4) 1
30
 6153120950
 Valve stem (CP3450-12ACR4) 1
31
 6156583030
 O-Ring (6 x 2.65) (CP3450-12ACR4) 1
32
 6156700560
 Plug (CP3450-12ACR4) 1
33
 6156811440
 Switch spring (CP3450-12ACR4) 1
34
 6156582990
 O-Ring (12.5 x 1.8) (CP3450-12ACR4) 1
35
 6153071590
 Rotate switch (CP3450-12ACR4) 1
36
 6157440310
 Filter (CP3450-12ACR4) 1
37
 6156583040
 O-Ring (11.2 x 2.65) (CP3450-12ACR4) 1
38
 6156890390
 Ring snap RW35 (CP3450-12ACR4) 1
39
 6156583010
 O-Ring (30 x 1.8) (CP3450-12ACR4)
 1
40
 6153071560
 Rear body (safety lever type) includes helicoil
 1
42
 6153120940
 Valve stem
 1
43
 6156583030
 O-Ring (6 x 2.65) 1
44
 6156721530
 Plug
 1
45
 6156583000
 O-Ring (14 x 1.8) 1
46
 6156811440
 Switch spring
 1
47
 6153212370
 Safety lever assembly
 1
48
 6156350380
 Pin spring (3 x 20)
 1
49
 6156583020
 O-Ring (36 x 1.8)
 1
50
 6156583040
 O-Ring (11.2 x 2.65)
 1
51
 6156071530
 Nut
 1
52
 6156561870
 Guard joint
 1
53
 6155041880
 4" Guard CP3450-12..4 1
-
 6155042030
 4.5" Guard CP3450-12..45 1
-
 6155041860
 5" Guard CP3450-12..5
 1
56
 6156400290
 Washer plain Z5 U
 3
57
 6156160270
 Screw hex head cap M5 x 15
 3
58
 2050524063
 Side handle
 1
59
 2050541503
 Exhaust filter (safety lever type)
 1
60
 6157301880
 Exhaust hose adapter (CP3450-12ACR4)
 1
81
 2050556503
 Wrench
 2
82
 2050485003
 Pin wrench for 3/8"-24F nut
 1
83
 2050486673
 Pin wrench for 5/8"-11 & M14 nut
 1
84
 8951011464
 Hex. wrench 1/4" for Screw lock
 1
62
 2050546543
 Air inlet 3/8" (CP3450-12ACR4)
 1
-
 6158727840
 Warning label
 1
-
 6158727560
 Guard warning label
 1
-
 2050542213
 Spindle oil felt (not shown) 1
-
 2050542223
 Oil felt (not shown) 1
-
 6154320110
 Hose (CP3450-12ACR4)
(not shown)
 1
61
 2050543883
 Exhaust foam
 1
-
 6153973030
 Tune-up Kit
(incl 20, 22, 24, 27, 49)
-
 6154340650
 Blades Kit (50 pack)
