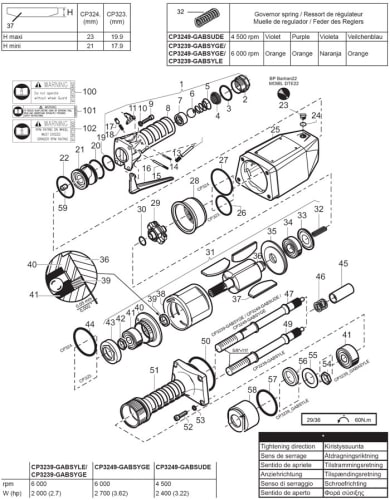

Chicago Pneumatic CP3249-GABSYG Grinder Repair Parts

Index No.	Part No.	Description	No. Req'd
1	395.61	Throttle handle complete	1
2	730.132	Adapter	1
3	6156581150	O-Ring	1
4	744.08	Strainer	1
5	6156810200	Spring	1
6	6157700190	Ball	1
7	6153210800	Seat	1
8	315.30	Throttle handle	1
9	616.99	Screw	4
10	645.35	Washer	4
11	6153210820	Latch lever	1
12	790.12	Pin	1
13	6156810190	Spring	1
14	638.06	Roll pin	1
15	6156380050	Roll pin	1
16	6153210830	Lever	1
17	321.81	Cover	1
18	681.18	Spring	1
19	658.107	O-Ring	1
20	658.112	O-Ring	1
21	321.72	Oil tank	1
22	658.130	O-Ring	1
23	614.02	Screw	1
24	650.16	O-Ring	1
25	6153962770	Motor housing (CP323.)	1
25	6153962780	Motor housing (CP324.)	1
26	658.117	O-Ring (CP323.)	1
27	658.118	O-Ring (CP324.)	1
28	6153211830	Governor housing (CP324.)	1
28	321.94	Governor housing (CP323.)	1
29	457.18	Governor	1
30	658.120	O-Ring	1
31	394.26	Complete motor (CP323.)	1
31	394.54	Complete motor (CP324.)	1
32	6156811030	Spring for governor (CP3249-GABSUDE)	1
32	6156811040	Spring for governor (CP3239-GABSYGE, CP3249-GABSYGE, CP3239-GABSYLE)	1
33	557.93	Flange	1
34	758.17	Ball bearing	1
35	422.121	Rear plate - end (CP323.)	1
35	422.129	Rear plate - end (CP324.)	1
36	426.46	Rotor (CP323.)	1
36	426.68	Rotor (CP324.)	1
37	434.42	Blade (CP323.)	3
37	434.48	Blade (CP324.)	3
38	400.110	Liner (CP323.)	1
38	400.120	Liner (CP324.)	1
39	661.75	Ring	1
40	420.119	Front plate - end (CP324.)	1
40	420.114	Front plate - end (CP323.)	1
41	754.17	Ball bearing	2
42	607.49	Nut	1
43	673.68	Plug	1
44	657.32	O-Ring (CP324.)	1
45	575.84	Coupling sleeve	1
46	680.99	Spring	1
48	501.36	Shaft (CP3239-GABSYGE, CP3249-GABSYGE, CP3249-GABSUDE)	1
49	6155010970	Shaft (CP3239-GABSYLE)	1
50	658.116	O-Ring (CP324.)	1
50	658.118	O-Ring (CP323.)	1
51	552.18	Handle (CP323.)	1
51	552.19	Handle (CP324.)	1
52	223133	Screw	4
53	640.06	Washer	4
54	607.49	Nut (CP3239-GABSYLE)	1
55	643.54	Washer	1
56	654.05	Felt (CP3239-GABSYGE, CP3249-GABSYGE, CP3249-GABSUDE, CP3239-GABSYLE)	1
57	658.113	O-Ring	1
58	673.69	Plug	1
58	673.70	Plug	1
59	675.06	Oiler	1
100	6158726840	Guard warning label	1
101	6158726110	Warning instruction	1
102	6158726900	Wheel speed warning label	1

Sort By:

223133 Chicago Pneumatic Screw M6X25Lg Socket Head Cap

Price $4.07

501.36 Chicago Pneumatic Shaft

Price $431.50

557.93 Chicago Pneumatic Flange

Price $18.06

575.84 Chicago Pneumatic Sleeve

Price $191.76

6153211830 Chicago Pneumatic Governor Housing

Price $90.17

6156811030 Chicago Pneumatic Spring

Price $111.66

6156811040 Chicago Pneumatic Spring

Price $105.94

6158726110 Chicago Pneumatic Warning Label

Price $10.12

6158726840 Chicago Pneumatic Warning Label

Price $5.34

6158726900 Chicago Pneumatic Warning Label

Price $8.67

616.99 Chicago Pneumatic Screw M5X16Lg Sckthdcap

Price $5.32

640.06 Chicago Pneumatic Washer 6Dia Iso7090-A

Price $5.32

643.54 Chicago Pneumatic Washer

Price $50.02

645.35 Chicago Pneumatic Spring Washer 5Dia

Price $5.32

654.05 Chicago Pneumatic Washer Felt 24X35X5

Price $8.19

657.32 Chicago Pneumatic O Ring 50.17 X 5.33

Price $5.32

658.107 Chicago Pneumatic O Ring 26 X 3

Price $5.32

658.113 Chicago Pneumatic O Ring 43.4 X 3.6

Price $6.71

658.116 Chicago Pneumatic O Ring 66 X 2

Price $5.36

658.118 Chicago Pneumatic O Ring 60X2

Price $5.32

673.69 Chicago Pneumatic Cap

Price $277.43

680.99 Chicago Pneumatic Spring

Price $18.07

754.17 Chicago Pneumatic Bearing 3203-Ano4-2Z

Price $68.10

CP3249-GABSYG Chicago Pneumatic 6" Disc 3.6Hp Industrial Straight Grinder

CP3249-GABSYG Chicago Pneumatic 6" Disc 3.6Hp Industrial Straight Grinder - Industrial straight wheel grinder. High productivity. Highest durability in demanding applications up to 2000 hours maintenance intervals.

Price $2,555.65
