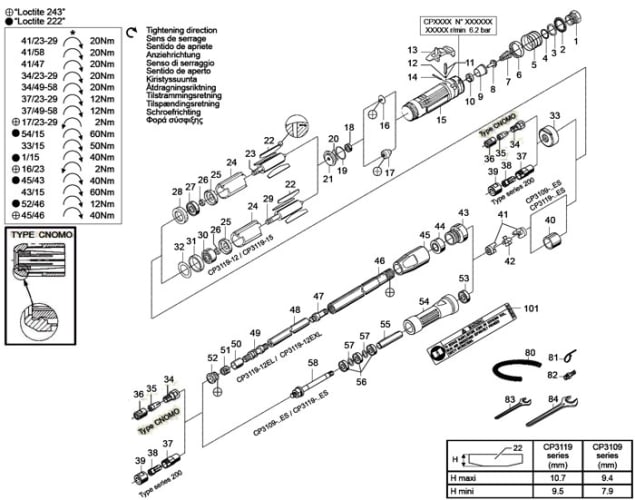

Chicago Pneumatic CP3109-24ES Die Grinder Repair Parts



Index
No. 		Part No. Description No.
Req'd
A
 2050541273
 Air Inlet Kit CP3109-.. & CP3119-.. -
1
 -
 Adapter 3/8" BSP
 1
2
 -
 Silencer
 1
3
 -
 Spacer
 1
4
 658.164
 O-Ring
 1
5
 -
 Spring
 1
6
 -
 Valve
 1
B
 2050541283 Throttle Kit CP3109-.. & CP3119-.. -
7
 -
 Spring-throttle
 1
8
 -
 Throttle
 1
9
 -
 Tube inlet
 1
10
 -
 Seat throttle
 1
C
 2050541293 Lever Kit CP3109-.. & CP3119-..
 -
11
 -
 Pin valve
 1
12
 -
 O-Ring
 1
13
 -
 Safety lever
 1
14
 -
 Roll pin
 1
D
 2050541553 Rear Plate Kit 3109-.. -
18
 6157581260
 Ball bearing 1
19
 656.148
 Gasket 1
20
 -
 Roll pin 2
21
 -
 Rear Plate 3119-.. 1
E
 2050541563 Rear Plate Kit 3119-.. -
18
 6157581260
 Ball bearing
 1
19
 656.148
 Gasket
 1
20
 -
 Roll pin
 1
21
 -
 Rear Plate 3119-..
 1
F
 2050541573 Front Plate Kit 3109-..
 -
25
 -
 Front plate CP3109-..
 1
26
 -
 Spacer
 1
27
 753.64
 Ball bearing
 1
G
 2050541583 Front Plate Kit CP3119-..
 -
25
 -
 Front plate CP3119-..
 1
26
 -
 Spacer
 3
27
 753.64
 Ball bearing
 1
H
 2050541593 Front Plate Kit CP3119-12 & CP3119-15
 -
25
 -
 Front plate CP3119-..
 1
26
 -
 Spacer
 3
30
 754.29
 Ball bearing
 1
I
 2050541353 600W Motor Kit CP3109-.. -
D
 2050541553 Rear plate kit CP3109-.. 2
F
 2050541573 Front plate kit
22
 434.53
 Blade CP3109-..
23
 426.84
 Rotor CP3109-..
24
 400.131
 Cylinder CP3109-.. 1
J
 2050541363 900W Motor Kit CP3119-.. -
E
 2050541563 Rear plate kit CP3119-.. 1
G
 2050541583 Front plate kit CP3119
22
 434.54
 Blade CP3119-.. 1
23
 426.85
 Rotor CP3119-.. 1
24
 400.132
 Cylinder CP3119-.. 1
K
 2050541373 900W Motor Kit CP3119-12 CP3119-15
 -
E
 2050541563 Rear plate kit CP3119-..
 1
H
 2050541593 Front plate kit CP3119-12 & CP3119-15 1
22
 434.54
 Blade CP3119-..
 1
29
 426.86
 Rotor CP3119-12 & CP3119-15
 1
24
 400.132
 Cylinder CP3119-..
 1
L
 2050541383 Extension Service Kit CP3119-xxES
 -
53
 -
 Ball bearing
 1
55
 -
 Wsher
 1
56
 -
 Ball bearing
 1
57
 -
 Washer
 1
M
 2050541393 Extension Service Kit CP3119-12EL & EXL
 -
44
 -
 Ball bearing 1
50
 -
 Cage 1
51
 -
 Needle 1
52
 -
 Plug
 1
N
 2050541603 Coupling Kit -
41
 -
 Coupling fork 1
42
 -
 Coupling
 1
O
 2050541683 Collet Holder Kit
 -
37
 -
 Collet holder
 1
39
 -
 Collet nut
 1
-
45
 566.404 Housing 1
43
 566.434 Housing 1
58
 501.96 Shaft 3/8" UNF
 1
47
 542.121 Shaft 1
49
 542.122 Shaft
 1
54
 566.432 Housing
 1
58
 501.96 Shaft 3/8" UNF
 1
15
 6153962340 Motor housing
 1
17
 6154570590
 Govenor 28K (CP3109-18 & 18ES) 1
17
 457.19
 Govenor 24K (CP3109-24 & 24ES) 1
17
 457.20
 Govenor 19K (CP3109-19 & 19ES) 1
17
 457.21
 Govenor 15K (CP3119-15 & 15ES) 1
17
 457.22
 Govenor 22K (CP3119-12 & 12ES) 1
17
 457.23
 Govenor 18K (CP3119-18 & 18ES) 1
17
 457.24
 Govenor 22K (CP3119-22 & 22ES)
 1
28
 645.132
 Spacer
 1
28
 645.136
 Spacer (CP3119-12EL & 12EXL) 1
31
 666.146
 Spacer
 1
32
 645.133
 Washer
 1
33
 672.130
 Cap (CP3109-XX / CP3119-XX)
 1
34
 523.18
 Chuck
 1
35
 6155260490
 CNOMO collet 6 mm
 1
36
 6156071360
 Nut collet
 1
38
 6155260630
 Series 200 resilient collet 1/4"
 1
40
 666.145
 Washer
 1
46
 579.50
 Tube (CP3119-12EL) 1
46
 579.51
 Tube (CP3119-12EXL) 1
48
 580.17
 Shaft (CP3119-12EL) 1
48
 580.18
 Shaft (CP3119-12EXL)
 1
80
 6158751130
 Exhaust hose (L=60" [1.5 m]
 1
81
 6158734150
 Hose clamp
 1
82
 6157040170
 Air hose nipple for 3/8" ID hose
 1
83
 6158010050
 Flat wrench 14 mm
 1
84
 6158010760
 Flat wrench 3/4" (19 mm)
 1
101
 6158726110
 Warning label
 1
