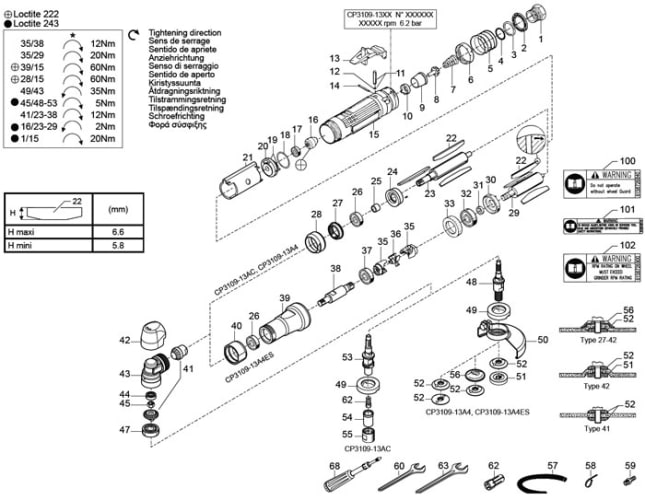

Index
No. |
Part No. |
Description |
No.
Req'd |
A
|
2050541273
|
Air Inlet Kit CP3109-.. &
CP3119-.. |
-
|
1
|
-
|
Addapter 3/8"
|
1
|
2
|
-
|
Silencer
|
1
|
3
|
-
|
Spacer
|
1
|
4
|
658.164
|
O-Ring
|
1
|
5
|
-
|
Spring
|
1
|
6
|
-
|
Vavle
|
1
|
B
|
2050541283
|
Throttle Kit CP3109-.. &
CP3119-.. |
-
|
7
|
-
|
Spring - throttle
|
1
|
8
|
-
|
Throttle
|
1
|
9
|
-
|
Tube inlet
|
1
|
10
|
-
|
Seat throttle
|
1
|
C
|
2050541293
|
Lever Kit CP3109-.. & CP3119-..
|
-
|
11
|
-
|
Pin vlave
|
1
|
12
|
-
|
O-Ring
|
1
|
13
|
-
|
Safety lever
|
1
|
14
|
-
|
Roll pin
|
1
|
D
|
2050541553
|
Rear Plate Kit
|
-
|
17
|
-
|
Ball bearing
|
1
|
18
|
656.148
|
Gasket
|
1
|
19
|
-
|
Roll pin
|
2
|
20
|
-
|
Rear plate
|
1
|
E
|
2050541653
|
Front Plate Kit CP3109-13AC &
13A4 |
-
|
24
|
-
|
Front plate CP3109-13AC &
13A4 |
1
|
25
|
-
|
Spacer CP3109-13AC & 13A4 |
1
|
26
|
-
|
Ball bearing
|
1
|
F
|
2050541573
|
Front Plate Kit CP3109..ES
|
-
|
30
|
-
|
Front plate CP3109-13A4ES |
1
|
31
|
-
|
Spacer CP3109-13A4ES |
1
|
32
|
753.64
|
Ball bearing CP3109-13A4ES |
1
|
G
|
2050541303
|
Motor Kit CP3109-13AC & 13A4 |
-
|
D
|
2050541553
|
Rear plate kit
|
1
|
E
|
2050541653
|
Front plate kit CP3109-13AC
& 13A4 |
1
|
21
|
400.131
|
Cylinder |
1
|
22
|
434.53
|
Blade |
3
|
23
|
6154260980
|
Rotor CP3109-13AC & 13A4 |
1
|
H
|
2050541343
|
Motor Kit
CP3109-13AC & 13A4 |
-
|
D
|
2050541553
|
Rear plate kit
|
1
|
F
|
2050541573
|
Front plate kit CP3109-13AC
& 13A4
|
1
|
21
|
400.131
|
Cylinder
|
1
|
22
|
434.53
|
Blade
|
3
|
29
|
426.84
|
Rotor CP3109-13AC & 13A4 |
1
|
I
|
2050541603
|
Coupling Kit
CP3109-13A4ES
|
-
|
35
|
-
|
Coupling fork
|
2
|
36
|
-
|
Coupling
|
1
|
J
|
2050541313
|
Bevel Gear Kit
|
-
|
41
|
-
|
Bevel gear
|
1
|
44
|
-
|
Ball bearing
|
1
|
45
|
-
|
Nut
|
1
|
47
|
-
|
Ball bearing
|
1
|
K
|
2050541323
|
Angle Head Kit CP3109-13A4 &
13A4ES
|
-
|
E
|
2050541313
|
Bevel gear kit
|
1
|
42
|
6155704290
|
Shield
|
1
|
43
|
595.230
|
Housing angle
|
1
|
48
|
-
|
Spindle wheel 3/8" CP3109-13A4
& 13A4ES |
1
|
49
|
-
|
Cap - angle housing CP3109-13A4
& 13A4ES
|
1
|
L
|
2050541333
|
Angle Head Kit CP3109-13AC
|
-
|
E
|
2050541313
|
Bevel gear kit
|
1
|
O
|
2050541413
|
Collet clamp kit
|
1
|
42
|
6155704290
|
Shield
|
1
|
43
|
595.230
|
Housing angle
|
1
|
49
|
-
|
Cap - angle housing CP3109-13A4
& 13A4ES
|
1
|
53
|
2050541433
|
Spindle - collet CP3109-13AC
|
1
|
62
|
6155260590
|
Series 300 resilient collet 1/4"
|
1
|
M
|
2050541633
|
Extension Kit CP3109-13A4ES |
-
|
37
|
-
|
Ball bearing CP3109-13A4ES |
1
|
38
|
-
|
Shaft CP3109-13A4ES |
1
|
39
|
-
|
Housing CP3109-13A4ES |
1
|
40
|
-
|
Sleeve CP3109-13A4ES
|
1
|
26
|
-
|
Ball bearing
|
1
|
N
|
2050541643
|
Plug Kit CP3109-13AC, CP3109-13A4 |
-
|
27
|
-
|
Spacer CP3109-13AC, CP3109-13A4 |
1
|
28
|
-
|
Plug CP3109-13AC, CP3109-13A4
|
1
|
O
|
2050541413
|
Collet Clamp Kit
|
-
|
54
|
-
|
Cap CP3109-13AC
|
1
|
55
|
-
|
Nut CP3109-13AC
|
1
|
-
|
15
|
6153962340
|
Motor housing
|
1
|
16
|
457.19
|
Govenor (24,000 rpm)
|
1
|
33
|
645.132
|
Spacer CP3109-13A4ES
|
1
|
50
|
6155041600
|
Wheel guard 4" CP3109-13A4,
CP3109-13A4ES
|
1
|
51
|
6156065150
|
Flange CP3109-13A4 CP3109-13A4ES |
1
|
52
|
6155020640
|
Flange CP3109-13A4 CP3109-13A4ES
|
1
|
56
|
6155031440
|
Rear flange type 27
|
1
|
57
|
6158726840
|
Exhaust hose (L=60" [1.5 m])
|
1
|
58
|
6158734150
|
Hose clamp
|
1
|
59
|
6157040170
|
Air hose nipple 3/8" for 5/8" ID
hose
|
1
|
60
|
6158010030
|
Flat wrench 7/16"
|
1
|
61
|
6158020080
|
20-3 mm pin wrench
(CP3109-13A4, 13A4ES)
|
1
|
62
|
6155260590
|
Series 300 resilient collet 1/4"
|
1
|
63
|
6158010320
|
Flat wrench CP3109-13AC
|
1
|
68
|
6159901490
|
Grease gun 0.8 oz (24 g)
|
1
|
100
|
6158726840
|
Warning guard label
|
1
|
101
|
6158726110
|
Warning instruction
|
1
|
102
|
6158726900
|
Warining wheel speed
|
1
|
-
|
2050541663
|
Tune-up Kit CP3109-13A4ES
(incl 4, 17, 18, 19, 22, 26, 32, 37, 44, 47)
|
-
|
2050541673
|
Tune-up Kit CP3109-13 AC/A4
(incl 4, 17, 18, 19, 22, 26, 44, 47) |
