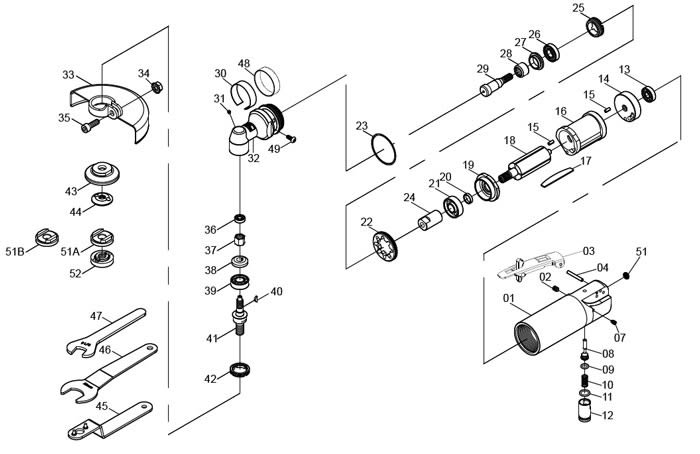

Chicago Pneumatic CP3040GABTIM Angle Grinder Repair Parts

Index No.	Part No.	Description	No. Req'd
A	2050562653	Throttle Kit (version D)	-
3	-	Throttle lever	1
4	-	Pin	1
B	2050545123	Valve Kit	-
7	-	Screw set	2
8	-	Valve throttle	1
9	-	O-Ring	1
10	-	Spring	1
11	-	O-Ring	1
12	-	Cap regulator	1
C	2050545133	Rear Plate Kit	-
13	2050544013	Bearing - ball	1
14	-	Plate rear end	1
D	2050545143	Front Plate Kit	-
19	-	Plate - front end	1
20	-	Spacer	1
21	2050544093	Bearing - ball	1
E	2050545153	Motor Kit	-
C	2050545133	Rear plate kit	1
D	2050545143	Front plate kit	1
15	-	Spring pin	2
16	2050544043	Cylinder	1
17	2050544053	Blade (set of 4)	1
18	2050544063	Rotor	1
22	-	Nut clamp	1
F	2050545163	Gear Kit CP3040GABTIM	-
36	2050544193	Bearing - ball	1
37	-	Nut	1
38	-	Gear	1
39	2050544223	Bearing - ball	1
29	-	Pinion CP3040GABTIM	1
28	-	Needle bearing	1
40	-	Key	1
G	2050545183	Coupling Kit (CP3040)	-
23	-	Washer	3
24	-	Coupling	1
25	-	Nut	1
26	2050544143	Bearing - ball	1
27	-	Spacer	1
H	2050545203	Angle Head Housing Kit (CP3040GABTIM)	-
30	-	Deflector	1
31	-	Fitting	1
32	-	Housing angle	1
48	-	Grid	1
49	-	Screw	1
I	2050545213	Guard Kit	-
34	-	Nut	1
35	-	Screw	1
33	-	Guard	1
J	2050545243	Small Parts Kit (CP9113 & CP3040 Series)	-
4	-	Pin	2
5	-	Spring	1
6	-	Pin	1
7	-	Screw set	2
15	-	Spring pin	2
26	-	Washer	3
43	-	Key	1
K	2050545223	Tune-up Kit (CP3040 Series)	-
9	-	O-Ring	1
11	-	O-Ring	1
17	2050544053	Blade (set of 4)	1
-
-	2050544323	Ball bearing	1
30	2040544453	Housing assembly	1
41	2050544243	Spindle	1
43	2050544263	Rear flange for 3/8" wheel type 42	1
44	2050544273	Flange nut for 3/8" wheel type 42	1
46	2050552943	Pin wrench	1
47	2050544523	Rear flange wrench 22mm	1
48	2050544513	Spindle wrench 9/16"	1
51A	2050552633	Rear flange for 5/8" wheel	1
51B	2050556473	Rear flange for 3/8" cut off wheel	1
52	2050552643	Flange nut	1
-	6158727980	Warning label	1
-	6158727560	Guard warning label	1
-	6158727550	Speed warning label	1

Sort By:

2050544013 Chicago Pneumatic Ball Bearing

Price $14.22

2050544043 Chicago Pneumatic Cylinder

Price $79.58

2050544053 Chicago Pneumatic Blades (Set Of 4)

Price $11.09

2050544063 Chicago Pneumatic Rotor

Price $66.37

2050544093 Chicago Pneumatic Ball Bearing

Price $20.66

2050544143 Chicago Pneumatic Ball Bearing

Price $27.21

2050544193 Chicago Pneumatic Ball Bearing Iso695Zz 13X5X4

Price $9.83

2050544223 Chicago Pneumatic Ball Bearing Iso6900Zz 22X10X6

Price $11.45

2050544243 Chicago Pneumatic Spindle

Price $65.84

2050544263 Chicago Pneumatic Adapter Wheel

Price $20.03

2050544273 Chicago Pneumatic Flange Nut 3/8"

Price $13.79

2050544323 Chicago Pneumatic Needle Bearing Isoba88Z

Price $35.80

2050544513 Chicago Pneumatic Spanner Wrench

Price $5.42

2050544523 Chicago Pneumatic Spanner Wrench

Price $5.42

2050545123 Chicago Pneumatic Valve Kit

Price $17.69

2050545133 Chicago Pneumatic Rear Plate Kit

Price $42.74

2050545143 Chicago Pneumatic Front Plate Kit

Price $47.20

2050545153 Chicago Pneumatic Motor Kit

Price $318.41

2050545163 Chicago Pneumatic Gear Kit Cp3040Gabtim

Price $277.64

2050545183 Chicago Pneumatic Coupling Kit Cp3040

Price $75.86

2050545203 Chicago Pneumatic Angle Head Kit Cp3040Gastim

Price $329.87

2050545213 Chicago Pneumatic Guard Kit

Price $24.31

2050545223 Chicago Pneumatic Tune-Up Kit Cp3040 Series

Price $209.00

2050545243 Chicago Pneumatic Small Part Kit

Price $22.10

2050552633 Chicago Pneumatic Rear Flange 5/8"

Price $13.79

2050552643 Chicago Pneumatic Front Flange 5/8"

Price $17.21

2050552943 Chicago Pneumatic Pin Wrench

Price $9.92

CP3040GABTIM Chicago Pneumatic Steel Body 1Hp 4" Disc Angle Grinder

CP3040GABTIM Chicago Pneumatic Steel Body 1Hp 4" Disc Angle Grinder - Industrial angle wheel grinder. High body durability. Withstands rough usage. Withstands extreme temperatures.

Price $514.88

Deal of the Day Price: $375.00
