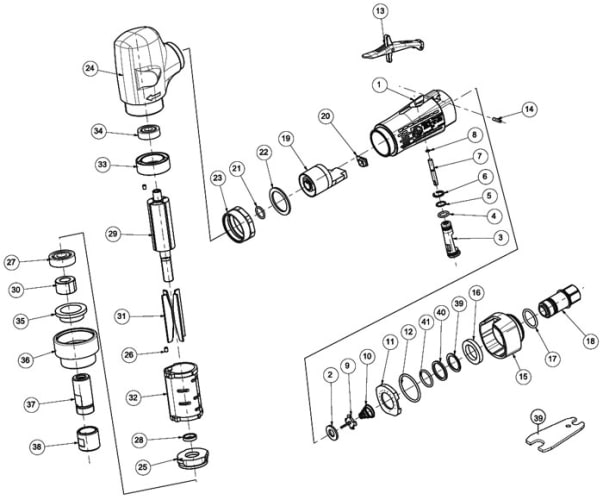

Chicago Pneumatic CP3030-518R Angle Grinder Repair Parts

Index No.	Part No.	Description	No. Req'd
A	6154600400	Regulator Assembly	-
3	-	Regulator	1
4	-	O-Ring (8.1 x 1.6)	1
5	-	O-Ring (8 x 1)	1
6	-	Spring ring WR9	1
7	-	Valve stem	1
8	-	O-Ring (2 x 1)	1
B	2050546343	Valve Kit	-
9	-	Tip valve	1
10	-	Spring	1
C	2050547893	Front Plate Assembly	-
25	-	Front plate	1
26	-	Pin spring (3 x 4)	1
27	6157580520	Bearing (10 x 26 x 8)	1
28	-	Washer	1
D	2050547933	Rear Plate Assembly	-
26	-	Pin spring (3 x 4)	1
33	-	Rear plate	1
34	6157581380	Bearing (8 x 22 x 7)	1
E	2050547943	Motor Assembly	-
C	2050547893	Front plate assembly	1
D	2050547933	Rear plate assembly	1
29	6154261240	Rotor	1
31	2050547803	Blades (set of 4)	1
32	6154001510	Cylinder	4
F	2050546413	Small Parts Kit	-
6	-	Spring ring WR9	1
8	-	O-Ring (2 x 1)	1
12	-	O-Ring (27 x 2)	1
14	-	Needle (2.5 x 11.8)	1
17	-	O-Ring (17 x 2)	1
21	-	O-Ring (10.5 x 1.5)	1
39	-	Ring	1
40	-	Spacer	1
41	-	O-Ring (15.6 x 1.78)	1
G	2050547923	Tune-up Kit	-
2	-	Seal	1
16	-	Felt	1
22	-	Paper gasket	1
31	2050547803	Blades (set of 4)	1
-
1	2050547773	Handle assembly (incl 15)	1
11	6155740650	Air control ring (18,000 rpm)	1
-	6155740610	Air control ring (20,000 rpm)	1
13	2050541493	Safety lever	1
15	-	Rear cap	1
18	2050542533	Inlet assembly	1
19	6153212410	Insert (incl 20)	1
23	6157301890	Nut	1
24	6155653230	Motor housing	1
30	6156080510	Rotor nut	1
35	6154600440	Block plate	1
36	6156731450	Cover	1
37	6155230230	Collet holder SIAL 200	1
38	6156071540	Collet nut SIAL 200	1
39	6158727980	Warning label	1

Sort By:

2050541493 Chicago Pneumatic Safety Lever

Price $22.11

2050542533 Chicago Pneumatic Inlet Assy

Price $27.98

2050546343 Chicago Pneumatic Valve Kit

Price $10.14

2050546413 Chicago Pneumatic Small Parts Kit

Price $7.14

2050547773 Chicago Pneumatic Handle Assy

Price $64.86

2050547923 Chicago Pneumatic Tune-Up Kit 500W

Discontinued

2050547933 Chicago Pneumatic Rear Plate Assembly 500W 7?

2050547933 Chicago Pneumatic Rear Plate Assembly 500W 7°

Price $89.93

2050547943 Chicago Pneumatic Motor Assembly 500W 7?

2050547943 Chicago Pneumatic Motor Assembly 500W 7°

Price $535.97

6154001510 Chicago Pneumatic Cylinder 500W

Price $137.13

6154261240 Chicago Pneumatic Rotor 500W

Price $113.53

6154600400 Chicago Pneumatic Regulator Assy

Price $42.70

6154600440 Chicago Pneumatic Blockplate7?500W

6154600440 Chicago Pneumatic Blockplate7°500W

Price $11.07

6155230230 Chicago Pneumatic Collet Holder.

Price $255.56

6155653230 Chicago Pneumatic Housingmachined500W

Price $117.96

6155740610 Chicago Pneumatic Air Control Ring 20 000 Rpm

Price $7.14

6155740650 Chicago Pneumatic Air Control Ring 18 000 Rpm

Price $7.14

6156071540 Chicago Pneumatic Collet Nut

Price $31.22

6156080510 Chicago Pneumatic Rotor Nut 500W

Price $23.60

6156731450 Chicago Pneumatic Cover7?500W

6156731450 Chicago Pneumatic Cover7°500W

Price $50.09

6157301890 Chicago Pneumatic Nut Connection 7?

6157301890 Chicago Pneumatic Nut Connection 7°

Price $26.53

6157580520 Chicago Pneumatic Ball Bearing

Price $12.28

CP3030-518R Chicago Pneumatic 1/4" (6.35mm) Collet 0.5Hp Angle Grinder

CP3030-518R Chicago Pneumatic 1/4" (6.35mm) Collet 0.5Hp Angle Grinder - Industrial die grinder. Industrial grade durability up to 1000 hours maintenance intervals. Operator comfort, high precision and easy maintenance.
