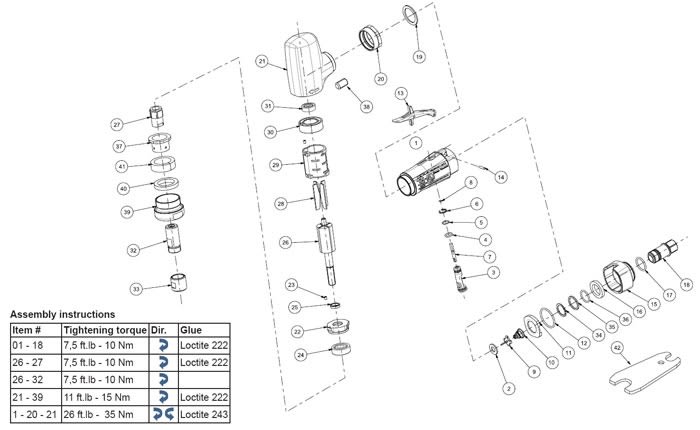

Chicago Pneumatic CP3030-424F Angle Grinder Repair Parts



Index
No.
Part No. Description No.
Req'd
A
6154600400
Regulator Assembly
-
3
-
Regulator
1
4
-
O-Ring (8.1 x 1.6) 1
5
-
O-Ring (8 x 1) 1
6
-
Spring ring WR9
1
7
-
Valve stem
1
8
-
O-Ring (2 x 1) 1
B
2050546343
Valve Kit
-
9
-
Tip vlave
1
10
-
Spring
1
C
2050547893
Front Plate Assembly
-
22
-
Front plate
1
23
-
Pin spring (3 x 4)
1
24
6157580520
Bearing (10 x 26 x 8)
1
25
-
Washer
1
D
2050547873
Rear Plate Assembly
-
23
-
Pin spring (3 x 4)
1
30
-
Rear plate
1
31
6157581390
Bearing (6 x 19 x 6)
1
E
2050547883
Motor Assembly
-
C
2050547893
Front plate assembly
1
D
2050547873
Rear plate assembly
1
26
6154261220
Rotor
1
28
2050547793
Blades (set of 4)
1
29
6154001490
Cylinder
1
F
2050546413
Small Parts Kit
-
6
-
Spring ring WR9
1
8
-
O-Ring (2 x 1) 1
12
-
O-Ring (27 x 2) 1
14
-
Needle (2.5 x 11.8)
1
17

O-Ring (17 x 2) 1
-
-
O-Ring (10.5 x 1.5) 1
34
6156880560
Ring
1
35
-
Spacer
1
36
-
O-Ring (15.6 x 1.78)
1
G
2050547863
Tune-up Kit
-
2
-
Seal
1
16
-
Felt
1
19
6156561910
Gaskets (set of 2)
1
28
2050547793
Blades (set of 4)
1
-
1
2050547773
Handle assembly (incl 15)
1
11
6159700940
Plate
1
13
2050541493
Safety lever
1
15
-
Rear cap
1
18
2050542533
Inlet assembly
1
20
6157301890
Nut
1
21
6155653220
Motor housing
1
27
6156080520
Rotor nut
1
32
6155230230
Collet holder SIAL 200 1
33
6156071540
Collet nut SIAL 200
1
37
2050549993
Air control ring (18,000 rpm) 1
-
2050550003
Air control ring (20,000 rpm) 1
-
2050550013
Air control ring (24,000 rpm)
1
38
6156190330
Screw
1
39
2050549043
Cover 7° 400W
1
40
2050549963
Ring felt
1
41
2050549973
Felt
1
42
2050548193
Spanner
2
-
6155260630
Collet 1/4"
1
-
6158727980
Warning label
1
Sort By:
2050541493 Chicago Pneumatic Safety Lever 2050541493 Chicago Pneumatic Safety Lever

2050541493 Chicago Pneumatic Safety Lever

Price $22.11
2050542533 Chicago Pneumatic Inlet Assy 2050542533 Chicago Pneumatic Inlet Assy

2050542533 Chicago Pneumatic Inlet Assy

Price $27.98
2050546343 Chicago Pneumatic Valve Kit 2050546343 Chicago Pneumatic Valve Kit

2050546343 Chicago Pneumatic Valve Kit

Price $10.14
2050546413 Chicago Pneumatic Small Parts Kit 2050546413 Chicago Pneumatic Small Parts Kit

2050546413 Chicago Pneumatic Small Parts Kit

Price $7.14
2050547773 Chicago Pneumatic Handle Assy 2050547773 Chicago Pneumatic Handle Assy

2050547773 Chicago Pneumatic Handle Assy

Price $64.86
2050547863 Chicago Pneumatic Tune-Up Kit 400W 2050547863 Chicago Pneumatic Tune-Up Kit 400W

2050547863 Chicago Pneumatic Tune-Up Kit 400W

Price $36.89
2050547873 Chicago Pneumatic Rear Plate Assembly 400W 7° 2050547873 Chicago Pneumatic Rear Plate Assembly 400W 7?

2050547873 Chicago Pneumatic Rear Plate Assembly 400W 7°

Price $104.67
2050547883 Chicago Pneumatic Motor Assembly 400W 7° 2050547883 Chicago Pneumatic Motor Assembly 400W 7?

2050547883 Chicago Pneumatic Motor Assembly 400W 7°

Price $483.38
2050548193 Chicago Pneumatic Spanner 400, 500W 2050548193 Chicago Pneumatic Spanner 400, 500W

2050548193 Chicago Pneumatic Spanner 400, 500W

Price $11.15
2050549043 Chicago Pneumatic Cover 7 Degree 400W Front 2050549043 Chicago Pneumatic Cover 7 Degree 400W Front

2050549043 Chicago Pneumatic Cover 7 Degree 400W Front

Price $24.45
2050549963 Chicago Pneumatic Ring Felt 2050549963 Chicago Pneumatic Ring Felt

2050549963 Chicago Pneumatic Ring Felt

Price $2.37
2050549973 Chicago Pneumatic Felt 2050549973 Chicago Pneumatic Felt

2050549973 Chicago Pneumatic Felt

Price $2.37
2050549993 Chicago Pneumatic Air Control Ring 18K Front 2050549993 Chicago Pneumatic Air Control Ring 18K Front

2050549993 Chicago Pneumatic Air Control Ring 18K Front

Price $13.72
2050550003 Chicago Pneumatic Air Control Ring 20K Front 2050550003 Chicago Pneumatic Air Control Ring 20K Front

2050550003 Chicago Pneumatic Air Control Ring 20K Front

Price $13.72
2050550013 Chicago Pneumatic Air Control Ring 24K Front 2050550013 Chicago Pneumatic Air Control Ring 24K Front

2050550013 Chicago Pneumatic Air Control Ring 24K Front

Price $13.72
6154001490 Chicago Pneumatic Cylinder 400W 6154001490 Chicago Pneumatic Cylinder 400W

6154001490 Chicago Pneumatic Cylinder 400W

Price $104.67
6154261220 Chicago Pneumatic Rotor 400W 6154261220 Chicago Pneumatic Rotor 400W

6154261220 Chicago Pneumatic Rotor 400W

Price $104.66
6154600400 Chicago Pneumatic Regulator Assy 6154600400 Chicago Pneumatic Regulator Assy

6154600400 Chicago Pneumatic Regulator Assy

Price $42.70
6155230230 Chicago Pneumatic Collet Holder. 6155230230 Chicago Pneumatic Collet Holder.

6155230230 Chicago Pneumatic Collet Holder.

Price $255.56
6155260630 Chicago Pneumatic Collet Ø1/4" Erickson Series 200 6155260630 Chicago Pneumatic Collet ?1/4" Erickson Series 200

6155260630 Chicago Pneumatic Collet Ø1/4" Erickson Series 200

Price $88.90
6155653220 Chicago Pneumatic Housing 400W 6155653220 Chicago Pneumatic Housing 400W

6155653220 Chicago Pneumatic Housing 400W

Price $128.30
6156071540 Chicago Pneumatic Collet Nut 6156071540 Chicago Pneumatic Collet Nut

6156071540 Chicago Pneumatic Collet Nut

Price $31.22
6156080520 Chicago Pneumatic Rotor Nut 400W 6156080520 Chicago Pneumatic Rotor Nut 400W

6156080520 Chicago Pneumatic Rotor Nut 400W

Price $32.44
6156190330 Chicago Pneumatic Screw M10X16 6156190330 Chicago Pneumatic Screw M10X16

6156190330 Chicago Pneumatic Screw M10X16

Price $2.31
6157301890 Chicago Pneumatic Nut Connection 7° 6157301890 Chicago Pneumatic Nut Connection 7?

6157301890 Chicago Pneumatic Nut Connection 7°

Price $26.53
6157580520 Chicago Pneumatic Ball Bearing 6157580520 Chicago Pneumatic Ball Bearing

6157580520 Chicago Pneumatic Ball Bearing

Price $12.28
6159700940 Chicago Pneumatic Plate 300W (Acr) 6159700940 Chicago Pneumatic Plate 300W (Acr)

6159700940 Chicago Pneumatic Plate 300W (Acr)

Price $2.31
CP3030-424F Chicago Pneumatic 1/4" (6.35mm) Collet 0.54Hp Angle Grinder CP3030-424F Chicago Pneumatic 1/4" (6.35mm) Collet 0.54Hp Angle Grinder

CP3030-424F Chicago Pneumatic 1/4" (6.35mm) Collet 0.54Hp Angle Grinder - Industrial die grinder. Industrial grade durability up to 1000 hours maintenance intervals. Operator comfort, high precision and easy maintenance.

Discontinued


Chicago Pneumatic CP3030-424F Angle Grinder Repair Parts
