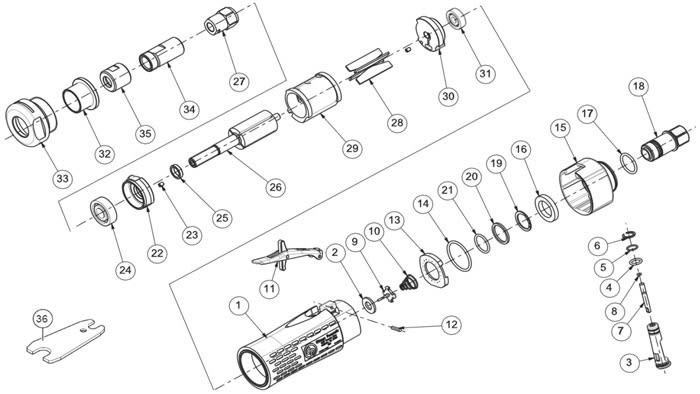

Chicago Pneumatic CP3000-420R Die Grinder Repair Parts

Index No.	Part No.	Description	No. Req'd
A	2050547823	Regulator Assembly	-
3	-	Regulator	1
4	-	O-Ring (8.1 x 1.6)	1
5	-	O-Ring (8 x 1)	1
6	-	Spring ring WR9	1
7	-	Valve stem	1
8	-	O-Ring (2 x 1)	1
B	2050546343	Valve Kit	-
9	-	Tip vlave	1
10	-	Spring	1
C	2050547893	Front Plate Assembly	-
22	-	Front plate	1
23	-	Pin spring (3 x 4)	1
24	6157580520	Bearing (10 x 26 x 8)	1
25	-	Washer	1
D	2050547843	Rear Plate Assembly	-
23	-	Pin spring (3 x 4)	1
30	-	Rear plate	1
31	6157581390	Bearing 626ZZ (6 x 19 x 6)	1
E	2050547853	Motor Assembly	-
C	2050547893	Front plate assembly	1
D	2050547843	Rear plate assembly	1
26	6154261220	Rotor	1
28	2050547793	Blades (set of 4)	1
29	6154001490	Cylinder	1
F	2050546413	Small Parts Kit	-
6	-	Spring ring WR9	1
8	-	O-Ring (2 x 1)	1
12	-	Needle (2.5 x 11.8)	1
14	-	O-Ring (27 x 2)	1
17	-	O-Ring (17 x 2)	1
19	-	Ring	1
20	-	Spacer	1
21	-	O-Ring (15.6 x 1.78)	1
-	2050547863	Tune-up Kit	-
2	-	Seal	1
16	-	Felt	1
28	2050547793	Blades (set of 4)	1
22	-	Paper gasket	1
-
1	2050547813	Handle assembly (incl 15)	1
11	2050541493	Safety lever	1
13	6155740750	Air control ring (15,000 rpm)	1
-	6155740700	Air control ring (18,000 rpm)	1
-	6155740710	Air control ring (20,000 rpm)	1
-	6155740730	Air control ring (24,000 rpm)	1
15	-	Rear cap	1
18	2050542533	Inlet assembly	1
27	6156080520	Rotor nut	1
32	6154600420	Block plate	1
33	6156731420	Cover	1
34	6155260630	Collet holder 1/4" SIAL 200	1
35	6156071540	Collet nut	1
36	2050548193	Spanner	2

Sort By:

2050541493 Chicago Pneumatic Safety Lever

Price $22.11

2050542533 Chicago Pneumatic Inlet Assy

Price $27.98

2050546343 Chicago Pneumatic Valve Kit

Price $10.14

2050546413 Chicago Pneumatic Small Parts Kit

Price $7.14

2050547813 Chicago Pneumatic Handle 400-500 W Assy

Price $89.93

2050547823 Chicago Pneumatic Regulator Assembly 400 500W

Price $38.40

2050547853 Chicago Pneumatic Motor Assembly 400W Straight

Price $481.93

2050547863 Chicago Pneumatic Tune-Up Kit 400W

Price $36.89

2050548193 Chicago Pneumatic Spanner 400, 500W

Price $11.15

6154001490 Chicago Pneumatic Cylinder 400W

Price $104.67

6154261220 Chicago Pneumatic Rotor 400W

Price $104.66

6154600420 Chicago Pneumatic Block Plate 400W

Price $14.20

6155260630 Chicago Pneumatic Collet ?1/4" Erickson Series 200

6155260630 Chicago Pneumatic Collet Ø1/4" Erickson Series 200

Price $88.90

6155740700 Chicago Pneumatic Air Control Ring

Price $7.14

6155740710 Chicago Pneumatic Air Control Ring 20 000 Rpm

Price $7.14

6155740730 Chicago Pneumatic Air Control Ring 24 000 Rpm

Price $7.14

6155740750 Chicago Pneumatic Air Control Ring 15 000 Rpm

Price $7.14

6156071540 Chicago Pneumatic Collet Nut

Price $31.22

6156080520 Chicago Pneumatic Rotor Nut 400W

Price $32.44

6156731420 Chicago Pneumatic Cover 400W Straight

Price $44.20

6157580520 Chicago Pneumatic Ball Bearing

Price $12.28

CP3000-420R Chicago Pneumatic 1/4" (6.35mm) Collet 0.54Hp Die Grinder

CP3000-420R Chicago Pneumatic 1/4" (6.35mm) Collet 0.54Hp Die Grinder - Industrial die grinder. Industrial grade durability up to 1000 hours maintenance intervals. Operator comfort, high precision, easy maintenance.

Price $392.00
