You are here: Home > Chicago Pneumatic Air Screwdrivers > Chicago Pneumatic CP2754 Screwdriver Repair Parts

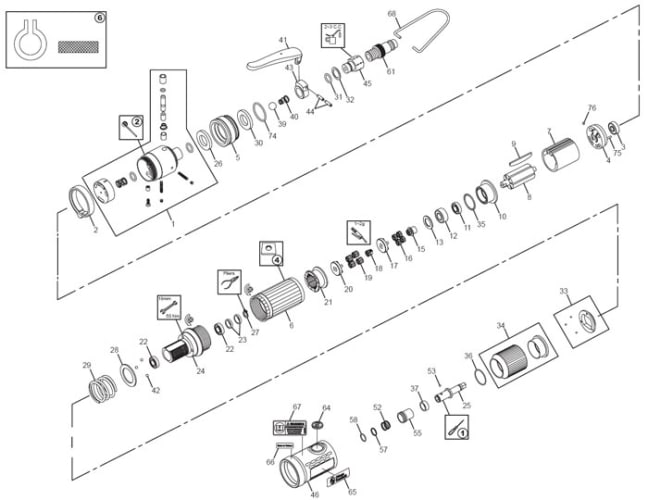

Chicago Pneumatic CP2754 Screwdriver Repair Parts



Index
No. 		Part No. Description No.
Req'd
1
 31102
 Bit holder, complete
 1
2
 436633
 Thread protecting ring
 1
3
 274093
 Gearbox nose
 1
4
 435923
 Clamp sleeve
 1
5
 61413
 Suspension bail
 1
6
 157513
 Spacer
 1
8
 94963
 Planet cage
 1
9
 304673
 Front bearing housing kit
 2
10
 436853
 Blades & bearings kit
 1
11
 437013
 Cylinder & end plates kit
 1
12
 36663
 Rotor
 1
13
 437043
 Rear bearing housing kit
 1
15
 437143
 Reverse valve & actuator
 1
16
 436963
 O-Ring kit
 1
17
 437123
 Valve kit
 1
18
 436983
 Filter & silencer kit
 1
19
 285763
 Exhaust cap
 1
20
 501193
 Air inlet bolt (BSP)
 1
-
 500343
 Air inlet bolt (NPT)
 -
21
 501683
 Exhaust helix
 1
22
 437093
 Trigger kit
 1
23
 437203
 Pistol grip, complete, (BSP)
 1
-
 6158726110
 Warning label
 1
Sort By:
157513 Chicago Pneumatic Spacer 9.6x13.5x4.8 157513 Chicago Pneumatic Spacer 9.6x13.5x4.8

157513 Chicago Pneumatic Spacer 9.6x13.5x4.8

Discontinued
274093 Chicago Pneumatic Internal Gear & Nose 274093 Chicago Pneumatic Internal Gear & Nose

274093 Chicago Pneumatic Internal Gear & Nose

Discontinued
285763 Chicago Pneumatic Exhaust (Was 501383) 285763 Chicago Pneumatic Exhaust (Was 501383)

285763 Chicago Pneumatic Exhaust (Was 501383)

Price $50.12
304673 Chicago Pneumatic Housing Assy-Front Brg Rev D 304673 Chicago Pneumatic Housing Assy-Front Brg Rev D

304673 Chicago Pneumatic Housing Assy-Front Brg Rev D

Price $86.96
36663 Chicago Pneumatic Rotor 6T 36663 Chicago Pneumatic Rotor 6T

36663 Chicago Pneumatic Rotor 6T

Price $305.80
435923 Chicago Pneumatic Clamp Sleeve 435923 Chicago Pneumatic Clamp Sleeve

435923 Chicago Pneumatic Clamp Sleeve

Price $174.59
436853 Chicago Pneumatic Kit - Blades & Bearings 436853 Chicago Pneumatic Kit - Blades & Bearings

436853 Chicago Pneumatic Kit - Blades & Bearings

Price $79.61
436963 Chicago Pneumatic Kit - O Ring 436963 Chicago Pneumatic Kit - O Ring

436963 Chicago Pneumatic Kit - O Ring

Price $23.52
436983 Chicago Pneumatic Kit - Filter & Silencer 436983 Chicago Pneumatic Kit - Filter & Silencer

436983 Chicago Pneumatic Kit - Filter & Silencer

Price $25.09
437013 Chicago Pneumatic Kit - Cylinder & End Plates 437013 Chicago Pneumatic Kit - Cylinder & End Plates

437013 Chicago Pneumatic Kit - Cylinder & End Plates

Price $61.95
437043 Chicago Pneumatic Kit - Rear Bearing Housing 437043 Chicago Pneumatic Kit - Rear Bearing Housing

437043 Chicago Pneumatic Kit - Rear Bearing Housing

Price $109.13
437093 Chicago Pneumatic Kit - Trigger 437093 Chicago Pneumatic Kit - Trigger

437093 Chicago Pneumatic Kit - Trigger

Price $122.33
437123 Chicago Pneumatic Kit - Valve 437123 Chicago Pneumatic Kit - Valve

437123 Chicago Pneumatic Kit - Valve

Price $60.46
437143 Chicago Pneumatic Kit - Rev Valve & Actuator 437143 Chicago Pneumatic Kit - Rev Valve & Actuator

437143 Chicago Pneumatic Kit - Rev Valve & Actuator

Price $69.29
437203 Chicago Pneumatic Pistol Grip Cpte 1/4 Bsp (Red) 437203 Chicago Pneumatic Pistol Grip Cpte 1/4 Bsp (Red)

437203 Chicago Pneumatic Pistol Grip Cpte 1/4 Bsp (Red)

Price $931.17
500343 Chicago Pneumatic Air Inlet Bolt - Npt 500343 Chicago Pneumatic Air Inlet Bolt - Npt

500343 Chicago Pneumatic Air Inlet Bolt - Npt

Discontinued
501683 Chicago Pneumatic Exhaust Helix 501683 Chicago Pneumatic Exhaust Helix

501683 Chicago Pneumatic Exhaust Helix

Price $8.65
61413 Chicago Pneumatic Suspension Ring For 33.5mmdia 61413 Chicago Pneumatic Suspension Ring For 33.5mmdia

61413 Chicago Pneumatic Suspension Ring For 33.5mmdia

Price $19.33
6158726110 Chicago Pneumatic Warning Label 6158726110 Chicago Pneumatic Warning Label

6158726110 Chicago Pneumatic Warning Label

Price $10.12
94963 Chicago Pneumatic Cage Planet 94963 Chicago Pneumatic Cage Planet

94963 Chicago Pneumatic Cage Planet

Price $339.81
CP2754 Chicago Pneumatic 1/4" Female Hex Drive Quick Change Pistol Grip Screwdriver Direct Drive Clutch CP2754 Chicago Pneumatic 1/4" Female Hex Drive Quick Change Pistol Grip Screwdriver Direct Drive Clutch

CP2754 Chicago Pneumatic 1/4" Female Hex Drive Quick Change Pistol Grip Screwdriver Direct Drive Clutch - Robust construction & Simple maintenance. Comfortable handling and noise level (77dBA only!). Fast screw rundown for productivity. Excellent for intensive soft draw applications.

Discontinued


Chicago Pneumatic CP2754 Screwdriver Repair Parts
