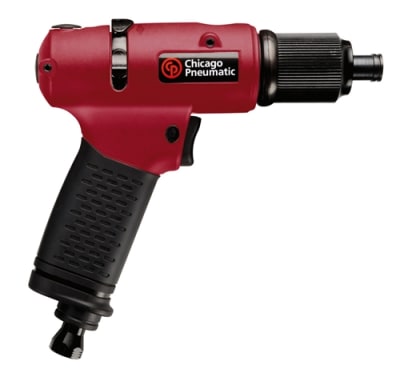

Chicago Pneumatic CP2612 Screwdriver Repair Parts

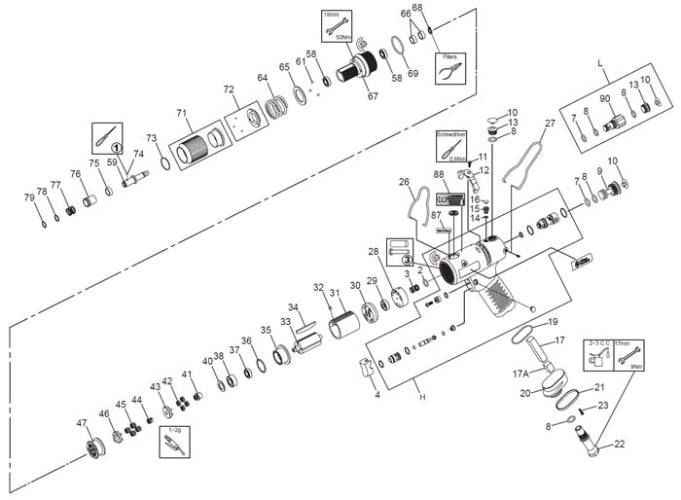

Index
No. |
Part No. |
Description |
No.
Req'd |
A
|
8940168404
|
Rear Inlet Kit
|
-
|
7
|
-
|
O-Ring
|
1
|
8
|
-
|
O-Ring
|
1
|
9
|
-
|
Screw cap
|
1
|
10
|
-
|
Hex rubber pad
|
1
|
B
|
8940168405
|
Top Inlet Kit
|
-
|
8
|
-
|
O-Ring
|
1
|
10
|
-
|
Hex rubber pad |
1
|
13
|
-
|
Screw cap |
1
|
C
|
8940168406
|
Air Inlet Kit
|
-
|
8
|
-
|
O-Ring |
1
|
17
|
-
|
First silencer
|
1
|
17A
|
-
|
Second silencer
|
1
|
19
|
-
|
O-Ring |
1
|
20
|
-
|
Exhaust deflector
|
1
|
22
|
-
|
Air inlet bushing (NPT)
|
1
|
23
|
-
|
Screw
|
1
|
D
|
8940168467
|
Motor Kit
|
-
|
31
|
-
|
Cylinder
|
1
|
32
|
-
|
Key
|
1
|
33
|
-
|
6T rotor
|
1
|
34
|
8940168087
|
Balde (set of 36)
|
1
|
D1
|
8940168408
|
End Plate Kit
|
-
|
29
|
-
|
Ball bearing
|
1
|
30
|
-
|
End plate
|
1
|
D2
|
8940168410
|
Front Plate Kit
|
-
|
35
|
-
|
Front plate
|
1
|
36
|
-
|
Ball (set of 36)
|
1
|
37
|
-
|
Ball bearing
|
1
|
38
|
-
|
Ball bearing |
1
|
40
|
-
|
Washer
|
1
|
E
|
8940168210
|
Gear Kit
|
-
|
47
|
-
|
Internal gear
|
1
|
E1
|
8940168468
|
First Stage Kit
|
-
|
41
|
-
|
21T main gear
|
1
|
42
|
-
|
10T plant gear (set of 7)
|
1
|
43
|
-
|
Third gear cage
|
1
|
E2
|
8940168413
|
Second Stage Kit
|
-
|
44
|
-
|
21T main gear
|
1
|
45
|
-
|
10T plate gear (set of 7)
|
1
|
46
|
-
|
Third gear cage
|
1
|
F
|
8940168418
|
Clutch Kit
|
-
|
58
|
-
|
Ball bearing
|
2
|
61
|
-
|
Ball
|
3
|
64
|
-
|
Torque
|
1
|
65
|
-
|
Washer
|
1
|
72
|
-
|
Regulation washer assembly
|
1
|
G
|
8940168211
|
Anvil Kit
|
-
|
59
|
-
|
Anvil (6.35 Hex)
|
1
|
66
|
-
|
Bushing
|
2
|
68
|
-
|
C-Ring
|
1
|
69
|
-
|
O-Ring
|
1
|
73
|
-
|
C-Ring
|
1
|
74
|
-
|
Ball
|
2
|
75
|
-
|
Bushing
|
1
|
G1
|
8940168722
|
Quick Change Kit
|
-
|
76
|
-
|
Bit slide sleeve
|
1
|
77
|
-
|
Spring
|
1
|
78
|
-
|
Washer
|
1
|
79
|
-
|
C-Ring
|
1
|
H
|
8940168160
|
Pistol Housing Kit
|
-
|
I
|
8940168723
|
Button Kit
|
-
|
4
|
-
|
Button (black)
|
1
|
11
|
-
|
Set screw and washer
|
1
|
12
|
-
|
Switch
|
1
|
J
|
8940168724
|
Cap Kit
|
-
|
14
|
-
|
O-Ring
|
1
|
15
|
-
|
Screw
|
1
|
16
|
-
|
Hex rubber pad
|
1
|
K
|
8940168726
|
Clutch Housing Kit
|
-
|
67
|
-
|
Clutch housing
|
1
|
71
|
-
|
Torque ring assembly
|
1
|
L
|
8940168747
|
Valve Kit
|
-
|
2
|
-
|
Valve O-Ring
|
1
|
3
|
-
|
Spring
|
1
|
28
|
-
|
Valve
|
1
|
N
|
8940168729
|
Suspension Ring Kit
|
-
|
26
|
-
|
Suspension ring
|
1
|
27
|
-
|
Suspension ring |
1
|
-
|
21
|
8940168074
|
Color ring
|
1
|
87
|
-
|
Made in Taiwan Label
|
1
|
88
|
8940168100
|
Warning label
|
1
|
M
|
8940168414
|
Optional Air Inlet
(incl 7, 8, 10, 13, 90)
|
-
|
90
|
-
|
Additional air inlet
|
1
|
-
|
8940168416
|
Tune-up Kit
(incl 2, 3, 7, 8, 14, 17, 17A,
19, 29, 34, 37, 38, 68, 69, 73)
|
-
|
|
|
