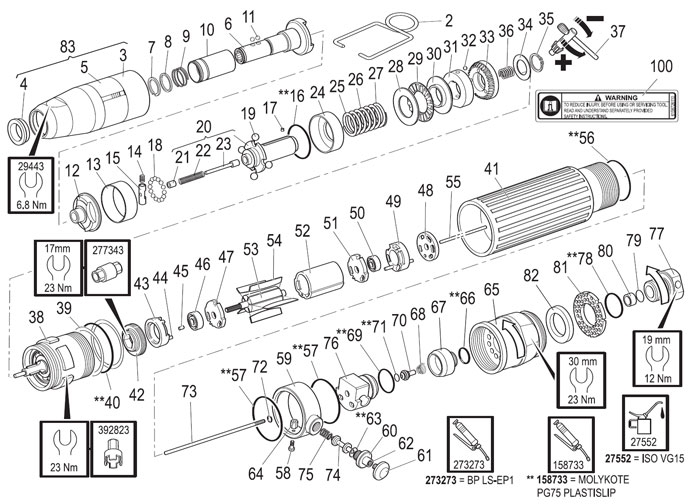

Chicago Pneumatic CP2007 Screwdriver Repair Parts
Index
No. |
Part No. |
Description |
No.
Req'd |
2
|
2050482253
|
Suspension bail
|
1
|
3
|
2050480063
|
Clutch case
|
1
|
4
|
2050481463
|
Bearing, spindle
|
2
|
5
|
76713
|
Clip, spring
|
1
|
6
|
370693
|
Bit holder, 1/4" Hex
|
1
|
7
|
2050481663
|
Circlip
|
1
|
8
|
2050481933
|
Spacer
|
1
|
9
|
301013
|
Spring
|
1
|
10
|
2050481653
|
Sleeve, quick release coupling
|
1
|
11
|
280313
|
Ball, steel
|
2
|
12
|
301273
|
Clutch cam
|
1
|
13
|
2050481593
|
Retaining sleeve
|
1
|
14
|
307123
|
Spring
|
1
|
15
|
2050481583
|
Latch pin
|
1
|
16
|
239753
|
O-Ring
|
1
|
17
|
301283
|
Roller
|
1
|
18
|
72228
|
Ball, 3/32
|
14
|
19
|
66868
|
Ball, 5/32
|
4
|
20
|
301163
|
Clutch spindle
|
1
|
21
|
301193
|
Plug
|
1
|
22
|
301203
|
Spring |
1
|
23
|
301183
|
Push rod
|
1
|
24
|
301253
|
Ball cup
|
1
|
25
|
179133
|
Spring (black)
|
1
|
26
|
179923
|
Spring (white)
|
1
|
27
|
304853
|
Spring (natural)
|
1
|
28
|
301313
|
Thrust washer
|
1
|
29
|
301303
|
Thrust race
|
1
|
30
|
301213
|
Thrust washer
|
1
|
31
|
2050481573
|
Lock ring
|
1
|
32
|
72408
|
Ball, 1/8"
|
3
|
33
|
301223
|
Adjusting ring
|
1
|
34
|
2050481503
|
Washer
|
1
|
35
|
42353
|
Circlip
|
1
|
36
|
252563
|
Spring |
1
|
37
|
29932
|
Chuck key
|
1
|
38
|
2050481233
|
Gearbox module (1100 rpm) complete
|
1
|
39
|
2050481763
|
Spacer
|
2
|
40
|
380763
|
O-Ring |
1
|
41
|
2050480193
|
Case, motor
|
1
|
42
|
2050481673
|
Nut
|
1
|
43
|
2050481523
|
Housing, front bearing
|
1
|
44
|
259953
|
Pin, drive
|
1
|
45
|
2050481708
|
Location pin
|
1
|
46
|
33433
|
Single row ball journal
|
1
|
47
|
2050481543
|
Plate, front bearing
|
1
|
48
|
2050481603
|
Transfer plate
|
1
|
49
|
459313
|
Housing, rear bearing
|
1
|
50
|
8843
|
Bearing
|
1
|
51
|
2050481533
|
Plate, rear bearing
|
1
|
52
|
285503
|
Cylinder
|
1
|
53
|
391613
|
Rotor, 9T
|
1
|
54
|
461613
|
Blade, rotor dry
|
5
|
55
|
2050481723
|
Push rod
|
1
|
56
|
402993
|
O-Ring |
1
|
57
|
203423
|
O-Ring |
2
|
58
|
457753
|
Screw, pan head, posidrive M2
|
1
|
59
|
457713
|
Collar
|
1
|
60
|
2050481963
|
Bush, plunger
|
1
|
61
|
2050481973
|
Button
|
1
|
62
|
457703
|
Plunger
|
1
|
63
|
280163
|
O-Ring |
1
|
64
|
2050481993
|
Key
|
1
|
65
|
2050480033
|
Housing, exhaust
|
1
|
66
|
41513
|
O-Ring |
1
|
67
|
391993
|
Connecting tube
|
1
|
68
|
311103
|
Spring |
1
|
69
|
402253
|
O-Ring |
1
|
70
|
2050481913
|
Valve top
|
1
|
71
|
166063
|
O-Ring |
1
|
72
|
392483
|
O-Ring |
1
|
73
|
457763
|
Pushrod
|
1
|
74
|
2050481983
|
Valve
|
1
|
75
|
457673
|
Spring, valve
|
1
|
76
|
457733
|
Valve block
|
1
|
77
|
393643
|
Adapter
|
1
|
78
|
392493
|
O-Ring |
1
|
79
|
176303
|
Filter
|
1
|
80
|
392953
|
Retainer
|
1
|
81
|
316223
|
Plate, exhaust
|
1
|
82
|
395123
|
Silencing felt
|
1
|
83
|
2050480823
|
Clutch case module
|
1
|
100
|
6158726110
|
Warning label
|
1
|
|
|
