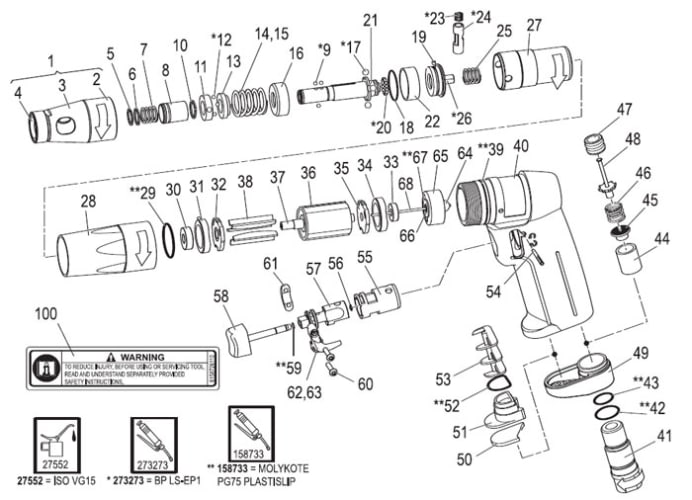

Chicago Pneumatic CP2005 Screwdriver Repair Parts
Index
No. |
Part No. |
Description |
No.
Req'd |
1
|
2050480843
|
Clutch case module complete
|
1
|
2
|
2050480043
|
Clutch case
|
1
|
3
|
443643
|
Cover, clutch adjustment
|
1
|
4
|
443753
|
Bearing, plain |
1
|
5
|
443773
|
Circlip |
1
|
6
|
2050481893
|
Ring |
1
|
7
|
301013
|
Spring
|
1
|
8
|
2050481863
|
Sleeve
|
1
|
9
|
280313
|
Ball
|
3
|
10
|
347733
|
Circlip
|
1
|
11
|
443543
|
Ring, adjustment
|
1
|
12
|
280313
|
Ball
|
4
|
13
|
2050481853
|
Ring, locking
|
1
|
14
|
461913
|
Spring, clutch (1.5 - 4.7 Nm)
|
1
|
15
|
443523
|
Spring, clutch (0.4 - 2.5 Nm) |
1
|
16
|
301253
|
Cup, ball
|
1
|
17
|
182493
|
Ball
|
4
|
18
|
239753
|
O-Ring
|
1
|
19
|
301283
|
Roller
|
1
|
20
|
280313
|
Ball
|
14
|
21
|
443563
|
Spindle, clutch
|
1
|
22
|
2050481593
|
Retaining
sleeve
|
1
|
23
|
307123
|
Spring
|
1
|
24
|
2050481583
|
Latch pin
|
1
|
25
|
301013
|
Spring
|
1
|
26
|
443513
|
Cam, clutch
|
1
|
27
|
2050481243
|
Gearbox module
|
1
|
28
|
2050480163
|
Housing,
gearbox
|
1
|
29
|
315263
|
O-Ring
|
1
|
30
|
33433
|
Bearing
|
1
|
31
|
458993
|
Housing, front
bearing
|
1
|
32
|
2050481543
|
Plate front
bearing
|
1
|
33
|
8843
|
Bearing
|
1
|
34
|
475203
|
Housing, rear
bearing
|
1
|
35
|
2050481533
|
Palte, rear
bearing
|
1
|
36
|
285503
|
Cylinder
|
1
|
37
|
285323
|
Rotor, 9T
|
1
|
38
|
461613
|
Blade, rotor
|
5
|
39
|
203423
|
O-Ring
|
1
|
40
|
2050480133
|
Pistol grip
|
1
|
41
|
2050481753
|
Air inlet bolt
|
1
|
42
|
99853
|
O-Ring |
1
|
43
|
54213
|
O-Ring |
1
|
44
|
2050481633
|
Spacer
|
1
|
45
|
500933
|
Air strainer
|
1
|
46
|
501103
|
Spring
|
1
|
47
|
345163
|
Valve seat
|
1
|
48
|
349403
|
Valve
sub-assembly
|
1
|
49
|
307763
|
Exhaust cap
|
1
|
50
|
307793
|
Diffuser
element
|
1
|
51
|
307753
|
Element
retainer
|
1
|
52
|
268513
|
O-Ring |
1
|
53
|
311283
|
Exhaust helix
|
1
|
54
|
458933
|
Pin
|
1
|
55
|
2050482013
|
Valve sleeve
|
1
|
56
|
2050481623
|
Clip
|
1
|
57
|
2050482023
|
Valve
|
1
|
58
|
458913
|
Actuator shaft
and button assembly
|
1
|
59
|
308653
|
O-Ring |
1
|
60
|
462233
|
Screw
|
2
|
61
|
2050482043
|
Clamp
|
1
|
62
|
467703
|
Spring plunger
|
1
|
63
|
462893
|
Actuator
|
1
|
64
|
252393
|
Ball, Nitrile
|
1
|
65
|
2050482053
|
Valve seat
|
1
|
66
|
458973
|
Valve stem
|
1
|
67
|
320413
|
O-Ring |
1
|
68
|
2050482063
|
Push rod
|
1
|
100
|
6158726110
|
Warning label
|
1
|
|
|
