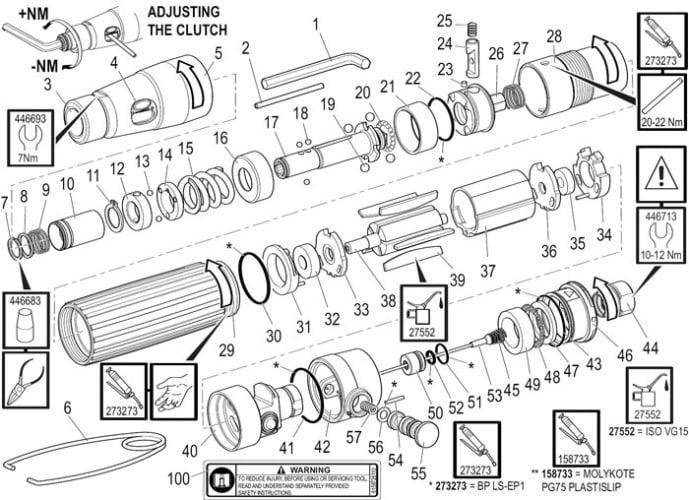

Chicago Pneumatic CP2003 Screwdriver Repair Parts
Index
No. |
Part No. |
Description |
No.
Req'd |
1
|
69773
|
Allen key
|
1
|
2
|
2050481883
|
Rod
|
1
|
3
|
443753
|
Bearing, plain
|
1
|
4
|
443643
|
Cover, clutch adjustment
|
1
|
5
|
2050480043
|
Case, clutch
|
1
|
6
|
2050481873
|
Suspension bail
|
1
|
7
|
443773
|
Circlip, ext.
|
1
|
8
|
2050481893
|
Ring
|
1
|
9
|
301013
|
Spring
|
1
|
10
|
2050481863
|
Sleeve
|
1
|
11
|
347733
|
Circlip
|
1
|
12
|
443543
|
Ring, adjustment
|
1
|
13
|
280313
|
Ball, (2.5 mm)
|
3
|
14
|
2050481853
|
Ring, locking
|
1
|
15
|
443523
|
Spring, clutch
|
1
|
16
|
301253
|
Cup, ball
|
1
|
17
|
443563
|
Spindle, clutch
|
1
|
18
|
280313
|
Ball, (2.5 mm) |
3
|
19
|
182493
|
Ball, (4 mm) |
4
|
20
|
280313
|
Ball, (2.5 mm) |
14
|
21
|
2050481593
|
Retaining
sleeve |
1
|
22
|
239753
|
O-Ring |
1
|
23
|
301283
|
Roller |
1
|
24
|
2050481583
|
Latch pin |
1
|
25
|
307123
|
Spring |
1
|
26
|
443513
|
Cam, clutch |
1
|
27
|
301013
|
Spring |
1
|
28
|
2050481303
|
Gearbox, 1100
rpm, complete |
1
|
29
|
2050480183
|
Motor case |
1
|
30
|
315263
|
O-Ring
|
1
|
31
|
443423
|
Housing, front
bearing
|
1
|
32
|
33433
|
Bearing
|
1
|
33
|
2050481543
|
Plate, front
bearing
|
1
|
34
|
459313
|
Housing, rear
bearing |
1
|
35
|
8843
|
Bearing |
1
|
36
|
2050481533
|
Plate, rear
bearing
|
1
|
37
|
285503
|
Cylinder
|
1
|
38
|
285323
|
Rotor, 9T, short
|
1
|
39
|
461613
|
Blade, rotor dry
|
5
|
40
|
443173
|
Control top
|
1
|
41
|
380763
|
O-Ring
|
1
|
42
|
2050482373
|
Housing, button reverse
|
1
|
43
|
315263
|
O-Ring |
1
|
44
|
2050482423
|
Bolt, inlet
complete, (1/8 BSP)
|
1
|
45
|
443393
|
Spring, conical
|
1
|
46
|
2050482363
|
Housing,
external exhaust button reverse
|
1
|
47
|
443363
|
Felt, exhaust
|
1
|
48
|
2050481813
|
Baffle plate,
exhaust
|
1
|
49
|
443353
|
Element,
exhaust
|
1
|
50
|
2050481803
|
Seat, valve
adjustable
|
1
|
51
|
314203
|
O-Ring |
1
|
52
|
251733
|
O-Ring |
1
|
53
|
443253
|
Valve, one
shot and push rod, complete
|
1
|
54
|
259953
|
Pin, spiral
|
1
|
55
|
443283
|
Valve, button
reverse
|
1
|
56
|
314203
|
O-Ring |
1
|
57
|
314183
|
Spring
|
1
|
100
|
6158726110
|
Warning label
|
1
|
|
|
