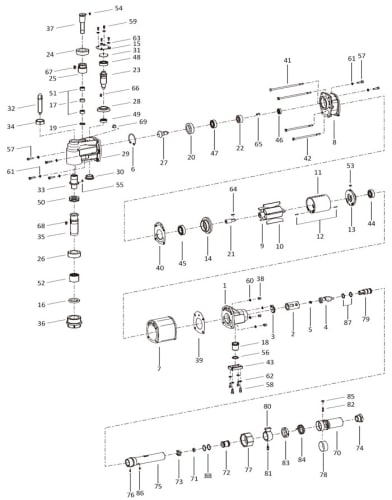

Chicago Pneumatic CP1720R32 Corner Drill Repair Parts



Index
No. 		Part No. Description No.
Req'd
1
 5412102936
 Housing cover
 1
7
 5412102937
 Housing
 1
8
 5412102938
 Housing lower cover
 1
9
 5412051577
 Rotor
 1
10
 5412051579
 Rotor Blade
 5
11
 5412051580
 Cylinder
 1
16
 5412051586
 Felt ring
 1
29
 5412102939
 No. 1 gear case
 1
30
 5412051599
 Gear case cover
 1
36
 5412051605
 Socket nut
 1
69
 5412055403
 Plug
 1
70
 5412051559
 Throttle vlave handle
 1
74
 5412070541
 Throttle vlave cover (NPT)
 1
75
 5412051342
 Throttle vlave stem
 1
A
 8940170563
 Reverse Kit
 -
2
 -
 Reverse valve bushing
 1
3
 -
 Reverse valve washer
 1
4
 -
 Reverse valve 1
5
 -
 Reverse valve sheet
 1
79
 -
 Reverse valve rod
 1
80
 -
 Reverse valve lever
 1
81
 -
 Small screw
 1
86
 -
 Needle roller
 1
87
 -
 O-Ring
 2
B
 8940170564
 Upper Plate Kit
 -
12
 -
 Spring pin
 1
13
 -
 Cylinder upper plate
 1
44
 -
 Ball bearing
 1
53
 -
 Pin
 1
C
 8940170565
 Lower Plate Kit
 -
12
 -
 Spring pin
 1
14
 -
 Cylinder lower plate
 1
45
 -
 Ball bearing
 1
D
 8940170566
 Bearing Cover Kit
 -
15
 -
 Bearing cover
 1
59
 -
 Screw
 4
63
 -
 Spring washer
 4
E
 8940170567
 No. 1 Pinion Gear Kit
 -
21
 -
 No. 1 pinion
 1
22
 -
 No. 1 gear
 1
F
 8940170568
 No. 2 Pinion Gear Kit
 -
23
 -
 No. 2 pinion
 1
24
 -
 No. 2 gear
 1
25
 -
 No. 3 pinion
 1
26
 -
 No. 3 gear
 1
G
 8940170569
 Bevel Kit
 -
27
 -
 Bevel pinion
 1
28
 -
 Bevel gear
 1
H
 8940170570
 Exhaust Kit
 -
18
 -
 Exhaust cover
 1
43
 -
 Exhaust cover holder
 1
56
 -
 O-Ring
 1
58
 -
 Cap screw
 4
62
 -
 Spring washer
 4
I
 8940170571
 Packing Kit
 -
39
 -
 Packing (A)
 1
40
 -
 Packing (B)
 1
J
 8940170572
 Bevel No. 1 Bearing Kit
 -
20
 -
 Bearing case
 1
46
 -
 Ball bearing
 1
47
 -
 Ball bearing 1
K
 8940170573
 Bevel No. 2 Service Kit
 -
31
 -
 Bearing holder
 1
48
 -
 Ball bearing 1
49
 -
 Ball bearing 1
L
 8940170574
 Bevel No. 3 Service Kit
 -
17
 -
 Bearing spacer
 1
19
 -
 Washer
 1
50
 -
 Thrust bearing
 1
51
 -
 Needle bearing
 2
52
 -
 Needle bearing
 1
M
 8940170575
 Screw Kit
 -
38
 -
 Hexagon nut
 4
41
 -
 Half-cut head bolt
 2
42
 -
 Half-cut head bolt 2
57
 -
 Cap screw
 6
58
 -
 Cap screw 4
59
 -
 Screw
 4
60
 -
 Spring washer
 4
61
 -
 Spring washer 6
62
 -
 Spring washer 4
63
 -
 Spring washer 4
N
 8940170576
 Throttle Valve Kit
 -
71
 -
 Throttle valve
 1
72
 -
 Throttle valve rod
 1
73
 -
 Throttle valve sheet
 1
77
 -
 Throttle valve stem nut
 1
78
 -
 Throttle valve handle band
 1
82
 -
 Small screw (B)
 1
83
 -
 Throttle handle step
 1
84
 -
 Throttle valve handle spring
 1
85
 -
 Guide roller
 1
88
 -
 O-Ring
 2
O
 8940170577
 Mt. Socket Kit
 -
35
 -
 Mt. socket
 1
68
 -
 Key
 1
P
 8940170578
 No. 2 Gear Spindle Kit
 -
37
 -
 No. 2 gear spindle
 1
54
 -
 Spring pin
 1
Q
 8940170579
 Feed Kit
 -
32
 -
 Feed screw
 1
33
 -
 Feed sleeve
 1
34
 -
 Feed sleeve nut
 1
55
 -
 Spring pin
 1
R
 8940170580
 Tune-up Kit
 -
S
 8940170581
 Small Parts Kit
 -
Sort By:
5412051342 Chicago Pneumatic Throttle Valve Stem Cp1720-R32 5412051342 Chicago Pneumatic Throttle Valve Stem Cp1720-R32

5412051342 Chicago Pneumatic Throttle Valve Stem Cp1720-R32

Discontinued
5412051559 Chicago Pneumatic Throttle Valve Handle Cp1720-R32 5412051559 Chicago Pneumatic Throttle Valve Handle Cp1720-R32

5412051559 Chicago Pneumatic Throttle Valve Handle Cp1720-R32

Discontinued
5412051577 Chicago Pneumatic Rotor Cp1720-R32 5412051577 Chicago Pneumatic Rotor Cp1720-R32

5412051577 Chicago Pneumatic Rotor Cp1720-R32

Discontinued
5412051579 Chicago Pneumatic Rotor Blade Cp1720-R32 5412051579 Chicago Pneumatic Rotor Blade Cp1720-R32

5412051579 Chicago Pneumatic Rotor Blade Cp1720-R32

Discontinued
5412051580 Chicago Pneumatic Cylinder Cp1720-R32 5412051580 Chicago Pneumatic Cylinder Cp1720-R32

5412051580 Chicago Pneumatic Cylinder Cp1720-R32

Discontinued
5412051586 Chicago Pneumatic Felt Ring Cp1720-R32 5412051586 Chicago Pneumatic Felt Ring Cp1720-R32

5412051586 Chicago Pneumatic Felt Ring Cp1720-R32

Discontinued
5412051599 Chicago Pneumatic Gear Case Cover Cp1720-R32 5412051599 Chicago Pneumatic Gear Case Cover Cp1720-R32

5412051599 Chicago Pneumatic Gear Case Cover Cp1720-R32

Discontinued
5412051605 Chicago Pneumatic Socket Nut Cp1720-R32 5412051605 Chicago Pneumatic Socket Nut Cp1720-R32

5412051605 Chicago Pneumatic Socket Nut Cp1720-R32

Discontinued
5412055403 Chicago Pneumatic Pulg Cp1720-R32 5412055403 Chicago Pneumatic Pulg Cp1720-R32

5412055403 Chicago Pneumatic Pulg Cp1720-R32

Discontinued
5412070541 Chicago Pneumatic Throttle Valve Cover Cp1720-R32 5412070541 Chicago Pneumatic Throttle Valve Cover Cp1720-R32

5412070541 Chicago Pneumatic Throttle Valve Cover Cp1720-R32

Discontinued
5412102936 Chicago Pneumatic Housing Cover Cp1720-R32 5412102936 Chicago Pneumatic Housing Cover Cp1720-R32

5412102936 Chicago Pneumatic Housing Cover Cp1720-R32

Discontinued
5412102937 Chicago Pneumatic Housing Cp1720-R32 5412102937 Chicago Pneumatic Housing Cp1720-R32

5412102937 Chicago Pneumatic Housing Cp1720-R32

Discontinued
5412102938 Chicago Pneumatic Housing Lower Cover Cp1720-R22 5412102938 Chicago Pneumatic Housing Lower Cover Cp1720-R22

5412102938 Chicago Pneumatic Housing Lower Cover Cp1720-R22

Discontinued
5412102939 Chicago Pneumatic Gear Case Cp1720-R32 5412102939 Chicago Pneumatic Gear Case Cp1720-R32

5412102939 Chicago Pneumatic Gear Case Cp1720-R32

Discontinued
8940170563 Chicago Pneumatic Reverse Kit Cp1720-R32 8940170563 Chicago Pneumatic Reverse Kit Cp1720-R32

8940170563 Chicago Pneumatic Reverse Kit Cp1720-R32

Price $307.90
8940170564 Chicago Pneumatic Upper Plate Kit Cp1720-R32 8940170564 Chicago Pneumatic Upper Plate Kit Cp1720-R32

8940170564 Chicago Pneumatic Upper Plate Kit Cp1720-R32

Price $184.34
8940170565 Chicago Pneumatic Lower Plate Kit Cp1720-R32 8940170565 Chicago Pneumatic Lower Plate Kit Cp1720-R32

8940170565 Chicago Pneumatic Lower Plate Kit Cp1720-R32

Price $154.71
8940170567 Chicago Pneumatic No.1 Pinion Geear Kit Cp1720-R32 8940170567 Chicago Pneumatic No.1 Pinion Geear Kit Cp1720-R32

8940170567 Chicago Pneumatic No.1 Pinion Geear Kit Cp1720-R32

Price $153.10
8940170568 Chicago Pneumatic No.2 Pinion Gear Kit Cp1720-R32 8940170568 Chicago Pneumatic No.2 Pinion Gear Kit Cp1720-R32

8940170568 Chicago Pneumatic No.2 Pinion Gear Kit Cp1720-R32

Price $482.52
8940170569 Chicago Pneumatic Bevel Kit Cp1720-R32 8940170569 Chicago Pneumatic Bevel Kit Cp1720-R32

8940170569 Chicago Pneumatic Bevel Kit Cp1720-R32

Price $301.56
8940170570 Chicago Pneumatic Exhaust Kit Cp1720-R32 8940170570 Chicago Pneumatic Exhaust Kit Cp1720-R32

8940170570 Chicago Pneumatic Exhaust Kit Cp1720-R32

Price $108.64
8940170571 Chicago Pneumatic Packing Kit Cp1720-R32 8940170571 Chicago Pneumatic Packing Kit Cp1720-R32

8940170571 Chicago Pneumatic Packing Kit Cp1720-R32

Price $36.22
8940170572 Chicago Pneumatic No.1 Bearing Kit Cp1720-R32 8940170572 Chicago Pneumatic No.1 Bearing Kit Cp1720-R32

8940170572 Chicago Pneumatic No.1 Bearing Kit Cp1720-R32

Price $77.38
8940170573 Chicago Pneumatic No.2 Service Kit Cp1720-R32 8940170573 Chicago Pneumatic No.2 Service Kit Cp1720-R32

8940170573 Chicago Pneumatic No.2 Service Kit Cp1720-R32

Price $67.46
8940170574 Chicago Pneumatic No.3 Service Kit Cp1720-R32 8940170574 Chicago Pneumatic No.3 Service Kit Cp1720-R32

8940170574 Chicago Pneumatic No.3 Service Kit Cp1720-R32

Price $195.88
8940170575 Chicago Pneumatic Screw Kit Cp1720-R32 8940170575 Chicago Pneumatic Screw Kit Cp1720-R32

8940170575 Chicago Pneumatic Screw Kit Cp1720-R32

Price $158.03
8940170576 Chicago Pneumatic Throttle Valve Kit Cp1720-R32 8940170576 Chicago Pneumatic Throttle Valve Kit Cp1720-R32

8940170576 Chicago Pneumatic Throttle Valve Kit Cp1720-R32

Price $264.98
8940170577 Chicago Pneumatic Mt Socket Kit Cp1720-R32 8940170577 Chicago Pneumatic Mt Socket Kit Cp1720-R32

8940170577 Chicago Pneumatic Mt Socket Kit Cp1720-R32

Price $162.95
8940170578 Chicago Pneumatic No.2 Gear Spindle Kit Cp1720-R32 8940170578 Chicago Pneumatic No.2 Gear Spindle Kit Cp1720-R32

8940170578 Chicago Pneumatic No.2 Gear Spindle Kit Cp1720-R32

Price $107.02
8940170579 Chicago Pneumatic Feed Kit Cp1720-R32 8940170579 Chicago Pneumatic Feed Kit Cp1720-R32

8940170579 Chicago Pneumatic Feed Kit Cp1720-R32

Price $212.27
8940170581 Chicago Pneumatic Small Parts Kit Cp1720-R32 8940170581 Chicago Pneumatic Small Parts Kit Cp1720-R32

8940170581 Chicago Pneumatic Small Parts Kit Cp1720-R32

Price $121.74
CP1720R32 Chicago Pneumatic 1-1/4" (32mm) 2.2Hp Reversible Corner Drill CP1720R32 Chicago Pneumatic 1-1/4" (32mm) 2.2Hp Reversible Corner Drill

CP1720R32 Chicago Pneumatic 1-1/4" (32mm) 2.2Hp Reversible Corner Drill - Designed for super-intensive duty and high durability with precision. Ideal for drilling, reaming & tapping of mild steel, cast iron.

Price $4,279.24
