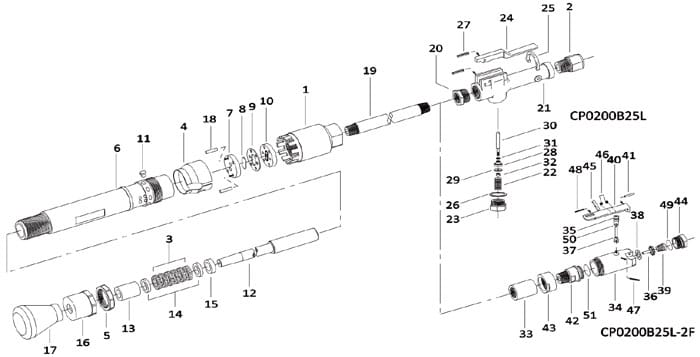

Chicago Pneumatic CP0200B25L Rammer Repair Parts
Index
No. |
Part No. |
Description |
No.
Req'd |
1
|
5412055485
|
Cap
|
1
|
2
|
5412054493
|
Inlet bushing
|
1
|
3
|
5412055488
|
Felt ring
|
6
|
4
|
5412055489
|
Exhaust cover
|
1
|
5
|
5412055490
|
Lock nut
|
1
|
6
|
5412102973
|
Cylinder (CP0200B25L)
|
1
|
6
|
5412102974
|
Cylinder (CP0200B25L-2F) |
1
|
11
|
5412055496
|
Locking clutch
|
1
|
12
|
5412055497
|
Piston
|
1
|
16
|
5412055501
|
Grand
|
1
|
17
|
5412055535
|
Rubber butt
|
1
|
19
|
5412055487
|
Pipe
|
1
|
20
|
5412055502
|
Socket joint
|
1
|
21
|
5412055477
|
Throttle valve body
|
1
|
33
|
5412054336
|
Scoket joint
|
1
|
34
|
5412058775
|
Throttle valve body
|
1
|
42
|
5412058781
|
Throttle valve stem
|
1
|
43
|
5412058783
|
Throttle valve stem nut
|
1
|
44
|
5412076996
|
Inlet joint (NPT)
|
1
|
A
|
8940170216
|
Valve Kit
|
-
|
7
|
-
|
Valve sheet
|
1
|
8
|
-
|
Valve
|
1
|
9
|
-
|
Valve case
|
1
|
10
|
-
|
Valve cover
|
1
|
18
|
-
|
Pin
|
2
|
B
|
8940170217
|
Packing Kit
|
-
|
13
|
-
|
Piston bushing
|
1
|
14
|
-
|
Leather packing
|
2
|
15
|
-
|
Packing sheet
|
1
|
C
|
8940170221
|
Throttle B25L Kit
|
-
|
22
|
-
|
Throttle valve spring
|
1
|
23
|
-
|
Throttle valve cover
|
1
|
26
|
-
|
Packing
|
1
|
28
|
-
|
Throttle valve |
1
|
29
|
-
|
Throttle valve collar
|
1
|
30
|
-
|
Throttle valve rod
|
1
|
31
|
-
|
Plain washer
|
1
|
32
|
-
|
Nut
|
1
|
D
|
8940170222
|
Lever B25L Kit
|
-
|
24
|
-
|
Throttle valve lever
|
1
|
25
|
-
|
Stop ring
|
1
|
27
|
-
|
Spring pin
|
2
|
E
|
8940170202
|
Throttle Kit 2F Model
|
-
|
35
|
-
|
Throttle valve bushing
|
1
|
37
|
-
|
Throttle valve rod
|
1
|
47
|
-
|
Spring pin
|
1
|
50
|
-
|
O-Ring
|
1
|
F
|
8940170203
|
Throttle Valve Kit 2F Model
|
-
|
36
|
-
|
Throttle valve |
1
|
38
|
-
|
Throttle valve sheet
|
1
|
39
|
-
|
Throttle valve spring
|
1
|
49
|
-
|
O-Ring
|
1
|
G
|
8940170204
|
Safety Lever Kit 2F Model
|
-
|
40
|
-
|
Throttle valve lever
|
1
|
41
|
-
|
Throttle valve lever pin
|
1
|
45
|
-
|
Lock key
|
1
|
46
|
-
|
Lock spring
|
1
|
48
|
-
|
Spring pin
|
1
|
H
|
8940170210
|
Tune-up Kit
|
-
|
49
|
-
|
O-Ring
|
1
|
50
|
-
|
O-Ring |
1
|
51
|
-
|
O-Ring |
1
|
I
|
8940170223
|
Small Parts Kit B25L
(incl 8, 18, 27)
|
-
|
J
|
8940170279
|
Small Parts Kit B25L-2F
(incl 8, 18, 41, 46, 47, 48)
|
-
|
|
|
|
