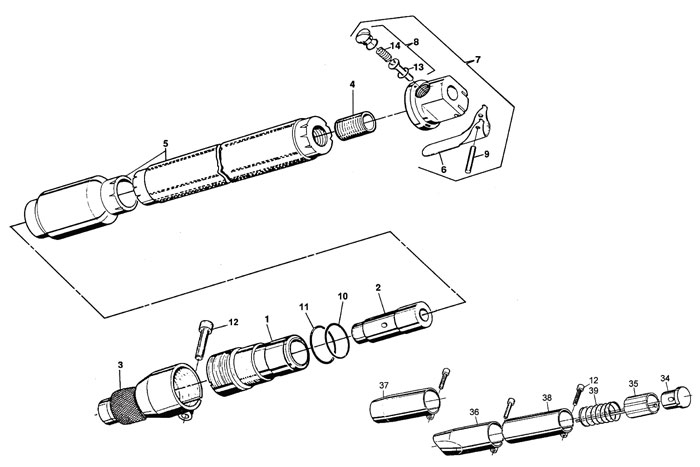

Chicago Pneumatic B20L Long Reach Scaler Repair Parts



Index
No. 		Part No. Description No.
Req'd
1
 113.522
 Body cylinder
 1
2
 143.524
 Piston
 1
3
 615 250526 0
 5/8" hex tool retainer
 1
4
 250.549
 Threaded adapter
 1
5
 320.524
 Cover assembly (B20L)
 1
5
 320.525
 Cover assembly (B20L-1)
 1
6
 321.574
 Throttle lever
 1
7
 395.518
 Valve body assembly (6-8-9)
 1
8
 399.745
 Valve stem set (13-14)
 1
9
 637.116
 Roll pin
 1
10
 658.242
 O-Ring
 1
11
 658.243
 O-Ring 1
12
 616.05
 Screw
 1
13
 658.239
 O-Ring 1
14
 681.578
 Valve spring
 1
-
 -
 Nameplate
 1
Sort By:
113.522 Chicago Pneumatic Body Cylinder B20 113.522 Chicago Pneumatic Body Cylinder B20

113.522 Chicago Pneumatic Body Cylinder B20

Price $894.64
143.524 Chicago Pneumatic Piston B19M 143.524 Chicago Pneumatic Piston B19M

143.524 Chicago Pneumatic Piston B19M

Price $233.01
395.518 Chicago Pneumatic Valve 395.518 Chicago Pneumatic Valve

395.518 Chicago Pneumatic Valve

Price $533.70
399.745 Chicago Pneumatic Assembly Kit 399.745 Chicago Pneumatic Assembly Kit

399.745 Chicago Pneumatic Assembly Kit

Price $106.12
6152505260 Chicago Pneumatic Hex Tool Retainer 6152505260 Chicago Pneumatic Hex Tool Retainer

6152505260 Chicago Pneumatic Hex Tool Retainer

Price $330.69
616.05 Chicago Pneumatic Screw M8X30Lg Sckthdcap 616.05 Chicago Pneumatic Screw M8X30Lg Sckthdcap

616.05 Chicago Pneumatic Screw M8X30Lg Sckthdcap

Price $3.98
658.239 Chicago Pneumatic O Ring B15M 658.239 Chicago Pneumatic O Ring B15M

658.239 Chicago Pneumatic O Ring B15M

Price $14.99
658.242 Chicago Pneumatic O Ring B19M 658.242 Chicago Pneumatic O Ring B19M

658.242 Chicago Pneumatic O Ring B19M

Price $14.99
681.578 Chicago Pneumatic Valve Spring 681.578 Chicago Pneumatic Valve Spring

681.578 Chicago Pneumatic Valve Spring

Price $7.23
B20L Chicago Pneumatic Light Weight Long Reach Scaler (55") with 5/8" Hexagonal Shank B20L Chicago Pneumatic Light Weight Long Reach Scaler (55") with 5/8" Hexagonal Shank

B20L Chicago Pneumatic Light Weight Long Reach Scaler (55") with 5/8" Hexagonal Shank - Three tools in one: chipping, scraping, de-scaling using wide range of accessories. High efficiancy low air consumption. Light weight thanks to aluminum structure. Ideal for chipping, scraping, de-scaling in vertical application.

Discontinued


Chicago Pneumatic B20L Long Reach Scaler Repair Parts
