Chicago Pneumatic B20L-1 Long Reach Scaler Repair Parts

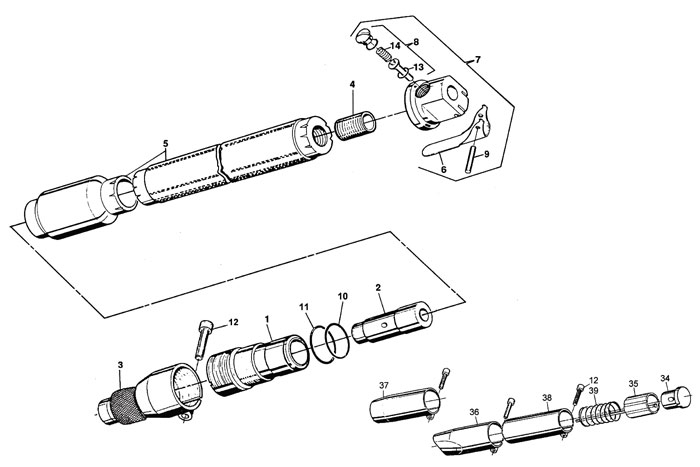

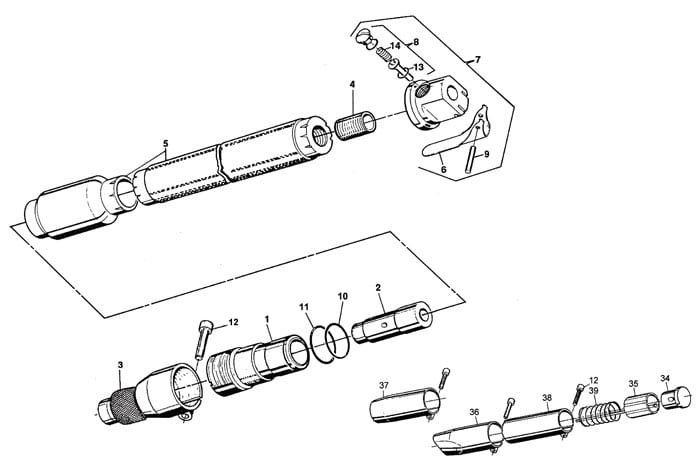

Index No.	Part No.	Description	No. Req'd
1	113.522	Body cylinder	1
2	143.524	Piston	1
3	615 250526 0	5/8" hex tool retainer	1
4	250.549	Threaded adapter	1
5	320.524	Cover assembly (B20L)	1
5	320.525	Cover assembly (B20L-1)	1
6	321.574	Throttle lever	1
7	395.518	Valve body assembly (6-8-9)	1
8	399.745	Valve stem set (13-14)	1
9	637.116	Roll pin	1
10	658.242	O-Ring	1
11	658.243	O-Ring	1
12	616.05	Screw	1
13	658.239	O-Ring	1
14	681.578	Valve spring	1
-	-	Nameplate	1

Sort By:

113.522 Chicago Pneumatic Body Cylinder B20

Price $894.64

143.524 Chicago Pneumatic Piston B19M

Price $233.01

395.518 Chicago Pneumatic Valve

Price $533.70

399.745 Chicago Pneumatic Assembly Kit

Price $106.12

6152505260 Chicago Pneumatic Hex Tool Retainer

Price $330.69

616.05 Chicago Pneumatic Screw M8X30Lg Sckthdcap

Price $3.98

658.239 Chicago Pneumatic O Ring B15M

Price $14.99

658.242 Chicago Pneumatic O Ring B19M

Price $14.99

681.578 Chicago Pneumatic Valve Spring

Price $7.23

B20L-1 Chicago Pneumatic Light Weight Long Reach Scaler (67") with 5/8" Hexagonal Shank

B20L-1 Chicago Pneumatic Light Weight Long Reach Scaler (67") with 5/8" Hexagonal Shank - Three tools in one: chipping, scraping, de-scaling using wide range of accessories. High efficiency low air consumption. Light weight thanks to aluminum structure. Ideal for chipping, scraping, de-scaling in vertical application.

Discontinued
