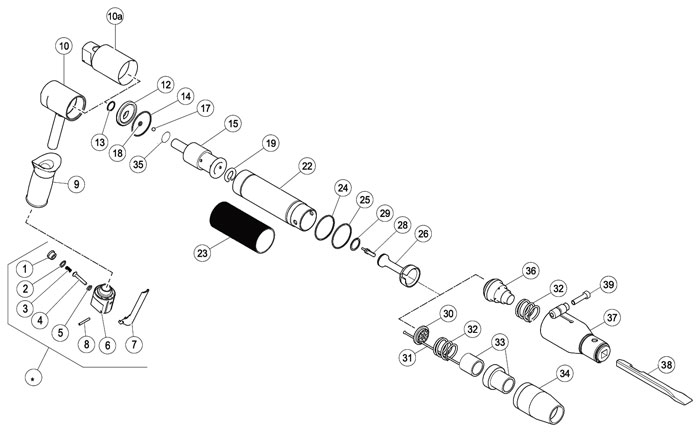

Index
No. |
Part No. |
Description |
No.
Req'd |
1
|
672.522
|
Valve Cap
|
1
|
2
|
658.238
|
Valve Cap O-Ring
|
1
|
3
|
681.578
|
Valve Spring
|
1
|
4
|
312.531
|
Valve Stem
|
1
|
5
|
658.239
|
Valve Seat O-Ring
|
1
|
6
|
307.516
|
Valve Body
|
1
|
7
|
321.574
|
Throttle Lever
|
1
|
7a
|
6153212470
|
Safety Lever (B16 only)
|
1
|
8
|
6156350410
|
Roll Pin
|
1
|
*
|
395.518
|
Valve Body Assembly
(incl items 1-8)
|
1
|
9
|
6153000480
|
Rubber Handle Grip
|
1
|
17
|
6157700570
|
Ball (Polyurethane) (6 mm
dia)
|
1
|
18
|
6156583260
|
Ball Retaining O-Ring
|
1
|
10
|
6155731350
|
Cover Assembly (Pistol
Grip) (B18)
|
1
|
-
|
6155731370
|
Cover Assembly (Pistol
Grip) (B19)
|
1
|
10a
|
6155731360 |
Cover Assembly
(Inline) (B16)
|
1
|
12
|
6155961060
|
Guide Plate (B16,
B18) |
1
|
12
|
6155961070
|
Guide Plate (B19) |
1
|
13
|
6156500340
|
Guide Plate Seal
(B16, B18) |
1
|
13
|
6156500350
|
Guide Plate Seal
(B19) |
1
|
14
|
658.243
|
Guide Plate O-Ring
(B16, B18) |
1
|
14
|
658.243
|
Guide Plate O-Ring
(B19) |
1
|
15
|
6154001530
|
Cylinder (B16, B18) |
1
|
15
|
6154001540
|
Cylinder Sub Assembly
(B19) |
1
|
19
|
6156452390
|
Piston Cushion
(B16, B18) |
1
|
19
|
6156452400
|
Piston Cushion
(B19) |
1
|
22
|
6154320090
|
Intermediate Tube
(B16, B18) |
1
|
22
|
6154320100
|
Intermediate Tube (B19) |
1
|
23
|
6155731380
|
Intermediate Tube Outer Sleeve
(B16, B18) |
1
|
23
|
6155731390
|
Intermediate Tube Outer Sleeve
(B19) |
1
|
24
|
6156870670
|
Circlip (B19) |
1
|
25
|
658.243
|
Front Tube Locking O-Ring
(B16, B18) |
1
|
25
|
658.243
|
Front Tube Locking O-Ring
(B19) |
1
|
26
|
6151430550
|
Piston (B16, B18) |
1
|
26
|
6151430560
|
Piston (B19) |
1
|
28
|
6151550170
|
Valve Pin
|
1
|
29
|
6156583310
|
Piston Ring (B16, B18) |
1
|
29
|
6156583320
|
Piston Ring (B19) |
1
|
30
|
6152520130
|
Needle Holder (3mm) (B16,
B18) |
1
|
30
|
6152520140
|
Needle Holder (3mm) (B19) |
1
|
31
|
6158046160
|
Needle Chisel (3mm) (B16,
B18) |
19
|
31
|
6158046170
|
Needle Chisel (3mm) (B19) |
28
|
32
|
6156901000
|
Front Spring (B16, B18) |
1
|
32
|
6156901010
|
Front Spring (B19) |
1
|
33
|
6155961030
|
Front Tube Insert + Spacer
(B16, B18) |
1
|
33
|
6155961040
|
Front Tube Insert (B19) |
1
|
34
|
6155751210
|
Front Tube (B16, B18) |
1
|
34
|
6155751220
|
Front Tube (B19) |
1
|
35
|
6156452410
|
Cylinder Stem Reaction Ring
(B16, B18) |
1
|
35
|
6156452420
|
Cylinder Stem Reaction Ring
(B19) |
1
|
36
|
6152505600
|
Anvil (B16, B18) |
1
|
36
|
6152505610
|
Anvil (B19) |
1
|
37
|
6152520150
|
Chisel Holder (B16, B18)
|
1
|
37
|
6152520160
|
Chisel Holder (B19)
|
1
|
38
|
6158046180
|
Chisel, width 3/4" (19mm),
length 7" (178mm) (B18BV, B19BV)
|
1
|
38
|
6158046220
|
Chisel, width 3/4" (19mm),
length 10" (254mm) (B16BV)
|
1
|
39
|
-
|
Screw (B16BV, B18BV, B19BV)
|
1
|
-
|
-
|
Nameplate
|
1
|
