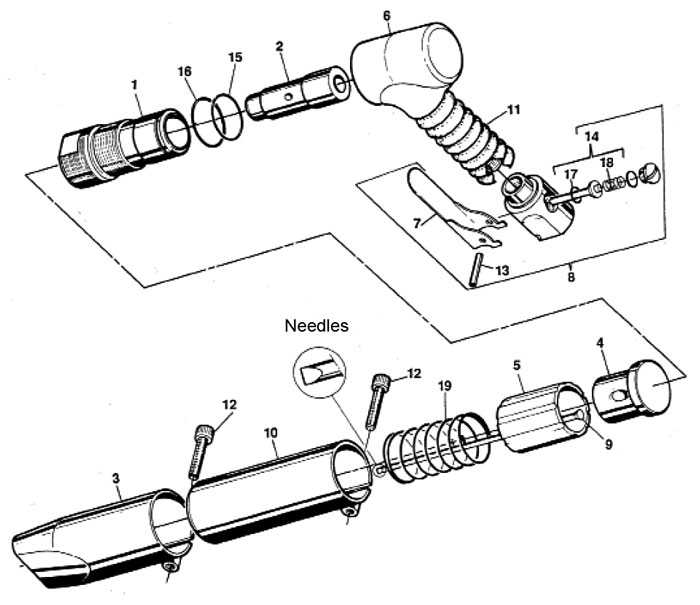

Chicago Pneumatic B18M Needle Scaler Repair Parts



Index
No. 		Part No. Description No.
Req'd
1
 113.521
 Body (Cylinder) (B18)
1
1
 113.522
 Body (Cylinder) (B19) 1
2
 143.523
 Piston (B18) 1
2
 143.524
 Piston (B19) 1
3
 6152505120
 Sleeve Adjustment (B18M) 1
3
 250.518
 Tube, straight front (B19M) 1
4
 6152505130
 Anvil (B18) 1
4
 250.516
 Anvil (B19) 1
5
 6152505140
 Needle holder (ø3 mm) (B18M) 1
5
 250.517
 Needle holder (ø3 mm) (B19M) 1
6
 303.516
 Handle (B18) 1
6
 303.517
 Handle (B19) 1
7
 321.574
 Throttle lever
 1
8
 395.518
 Valve body assembly
 1
9
 -
 Needle chisel poing (B18M) 1
10
 566.543
 Intermediate tube (B19M) 1
10
 566.544
 Intermediate tube (B18M) 1
11
 570.536
 Grip
 1
12
 615.05
 Screw (M8 x 30)
 2
13
 637.116
 Pin, lever (ø3 x 24)
 1
14
 399.745
 Valve stem set (17-18)
 1
15
 658.420
 O-Ring (B18) 1
15
 658.242
 O-Ring (B19) 1
16
 658.241
 O-Ring (B18) 1
16
 658.243
 O-Ring (B19)
 1
17
 658.239
 O-Ring 1
18
 681.578
 Valve spring
 1
19
 681.579
 Spring - compression (B18M)
 1
19
 681.580
 Spring - compression (B19M)
 1
-
 -
 Name Plate
 1
Sort By:
113.522 Chicago Pneumatic Body Cylinder B20 113.522 Chicago Pneumatic Body Cylinder B20

113.522 Chicago Pneumatic Body Cylinder B20

Price $894.64
143.524 Chicago Pneumatic Piston B19M 143.524 Chicago Pneumatic Piston B19M

143.524 Chicago Pneumatic Piston B19M

Price $233.01
395.518 Chicago Pneumatic Valve 395.518 Chicago Pneumatic Valve

395.518 Chicago Pneumatic Valve

Price $533.70
399.745 Chicago Pneumatic Assembly Kit 399.745 Chicago Pneumatic Assembly Kit

399.745 Chicago Pneumatic Assembly Kit

Price $106.12
566.544 Chicago Pneumatic Intermediate Tube 566.544 Chicago Pneumatic Intermediate Tube

566.544 Chicago Pneumatic Intermediate Tube

Price $230.72
570.536 Chicago Pneumatic Grip 570.536 Chicago Pneumatic Grip

570.536 Chicago Pneumatic Grip

Price $54.46
658.239 Chicago Pneumatic O Ring B15M 658.239 Chicago Pneumatic O Ring B15M

658.239 Chicago Pneumatic O Ring B15M

Price $14.99
658.241 Chicago Pneumatic O Ring B18M 658.241 Chicago Pneumatic O Ring B18M

658.241 Chicago Pneumatic O Ring B18M

Price $16.37
658.242 Chicago Pneumatic O Ring B19M 658.242 Chicago Pneumatic O Ring B19M

658.242 Chicago Pneumatic O Ring B19M

Price $14.99
681.578 Chicago Pneumatic Valve Spring 681.578 Chicago Pneumatic Valve Spring

681.578 Chicago Pneumatic Valve Spring

Price $7.23
681.579 Chicago Pneumatic Compression Spring 681.579 Chicago Pneumatic Compression Spring

681.579 Chicago Pneumatic Compression Spring

Price $16.53
B18M Chicago Pneumatic Pistol Grip Needle Scaler B18M Chicago Pneumatic Pistol Grip Needle Scaler

B18M Chicago Pneumatic Pistol Grip Needle Scaler - Great size and power to guarantee maximum comfort to the operation in a wide range of applications. Adjustable front tube grants extended needle life.

Price $466.97
