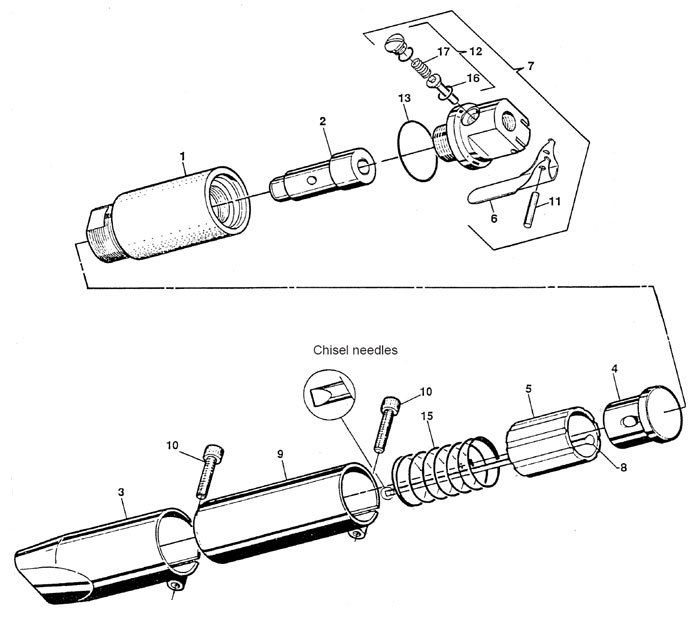

Chicago Pneumatic B16M Needle Scaler Repair Parts



Index
No. 		Part No. Description No.
Req'd
1
 113.520
 Body (B15)
 1
1
 113.523
 Body (B16) 1
2
 143.523
 Piston (B16)
 1
2
 143.525
 Piston (B15) 1
3
 6152505120
 Sleeve Adjustment (B16M)
 1
3
 6152505220
 Sleeve Adjustment (B15M) 1
4
 6152505130
 Anvil (B16M)
 1
4
 6152505200
 Anvil (B15M) 1
5
 6152505140
 19 Needle holder (ø3 mm) (B16M)
1
5
 6152505210
 12 Needle holder (ø3 mm) (B15M) 1
6
 321.574
 Throttle lever
 1
7
 395.519
 Valve body assembly (B15) (6-11-12)
1
7
 395.520
 Valve body assembly (B16) (6-11-12)
1
8
Needle chisel point (B16M) 1
8
Needle chisel point (B15M) 1
9
 566.542
 Intermediate tube (B15M) 1
9
 566.544
 Intermediate tube (B16M) 1
10
 616.05
 Screw
 2
11
 637.116
 Pin lever
 1
12
 399.745
 Valve stem set (16-17)
 1
13
 658.240
 O-Ring (B15) 1
13
 658.244
 O-Ring (B16) 1
15
 681.579
 Spring - Compression (B16M) 1
15
 681.581
 Spring - Compression (B15M) 1
16
 658.239
 O-Ring 1
17
 681.578
 Spring
 1
-
Nameplate
 1
