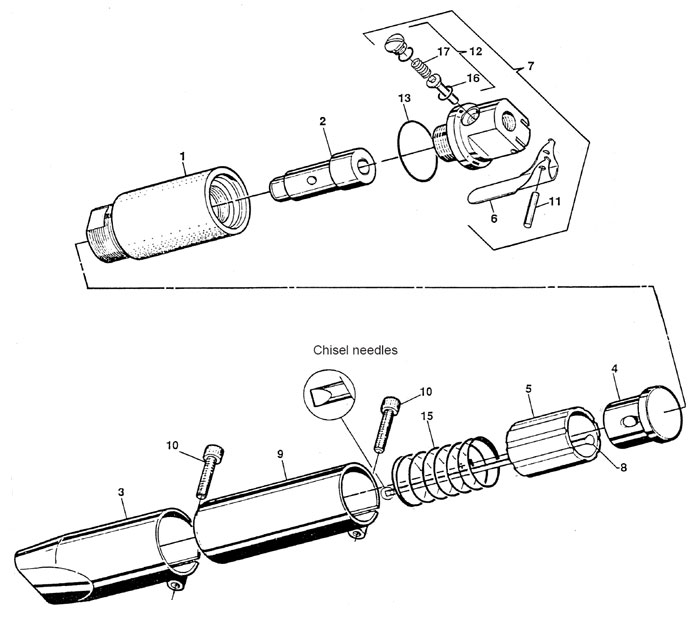

Chicago Pneumatic B15B Chisel Scaler Repair Parts



Index
No. 		Part No. Description No.
Req'd
1
 113.520
 Body (B15)
 1
1
 113.523
 Body (B16) 1
2
 143.523
 Piston (B16)
 1
2
 143.525
 Piston (B15) 1
3
 6152505120
 Sleeve Adjustment (B16M)
 1
3
 6152505220
 Sleeve Adjustment (B15M) 1
4
 6152505130
 Anvil (B16M)
 1
4
 6152505200
 Anvil (B15M) 1
5
 6152505140
 19 Needle holder (ø3 mm) (B16M)
 1
5
 6152505210
 12 Needle holder (ø3 mm) (B15M) 1
6
 321.574
 Throttle lever
 1
7
 395.519
 Valve body assembly (B15) (6-11-12)
 1
7
 395.520
 Valve body assembly (B16) (6-11-12)
 1
8
Needle chisel point (B16M) 1
8
Needle chisel point (B15M) 1
9
 566.542
 Intermediate tube (B15M) 1
9
 566.544
 Intermediate tube (B16M) 1
10
 616.05
 Screw
 2
11
 637.116
 Pin lever
 1
12
 399.745
 Valve stem set (16-17)
 1
13
 658.240
 O-Ring (B15) 1
13
 658.244
 O-Ring (B16) 1
15
 681.579
 Spring - Compression (B16M) 1
15
 681.581
 Spring - Compression (B15M) 1
16
 658.239
 O-Ring 1
17
 681.578
 Spring
 1
-
Nameplate
 1
Sort By:
143.525 Chicago Pneumatic Piston B15M 143.525 Chicago Pneumatic Piston B15M

143.525 Chicago Pneumatic Piston B15M

Price $156.99
395.519 Chicago Pneumatic Valve Body Assembly B15 395.519 Chicago Pneumatic Valve Body Assembly B15

395.519 Chicago Pneumatic Valve Body Assembly B15

Price $578.26
399.745 Chicago Pneumatic Assembly Kit 399.745 Chicago Pneumatic Assembly Kit

399.745 Chicago Pneumatic Assembly Kit

Price $106.12
566.542 Chicago Pneumatic Intermediate Tube 566.542 Chicago Pneumatic Intermediate Tube

566.542 Chicago Pneumatic Intermediate Tube

Price $226.69
566.544 Chicago Pneumatic Intermediate Tube 566.544 Chicago Pneumatic Intermediate Tube

566.544 Chicago Pneumatic Intermediate Tube

Price $230.72
616.05 Chicago Pneumatic Screw M8X30Lg Sckthdcap 616.05 Chicago Pneumatic Screw M8X30Lg Sckthdcap

616.05 Chicago Pneumatic Screw M8X30Lg Sckthdcap

Price $3.98
658.239 Chicago Pneumatic O Ring B15M 658.239 Chicago Pneumatic O Ring B15M

658.239 Chicago Pneumatic O Ring B15M

Price $14.99
658.244 Chicago Pneumatic O Ring B16M 658.244 Chicago Pneumatic O Ring B16M

658.244 Chicago Pneumatic O Ring B16M

Price $14.99
681.578 Chicago Pneumatic Valve Spring 681.578 Chicago Pneumatic Valve Spring

681.578 Chicago Pneumatic Valve Spring

Price $7.23
681.579 Chicago Pneumatic Compression Spring 681.579 Chicago Pneumatic Compression Spring

681.579 Chicago Pneumatic Compression Spring

Price $16.53
681.581 Chicago Pneumatic Compression Spring 681.581 Chicago Pneumatic Compression Spring

681.581 Chicago Pneumatic Compression Spring

Price $16.53
B15B Chicago Pneumatic Chisel Scaler B15B Chicago Pneumatic Chisel Scaler

B15B Chicago Pneumatic Chisel Scaler - Great accessibility for hard to reach areas. One hand operation. Versatile tool.

Price $524.80
