Chicago Pneumatic B14A Piston Scaler Repair Parts

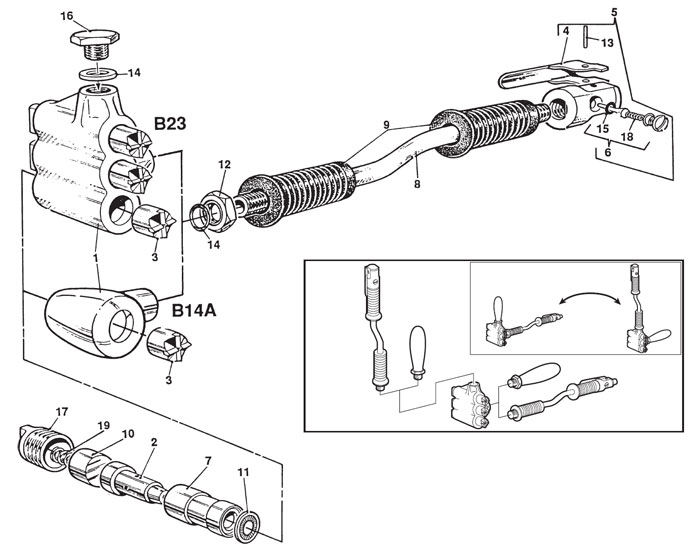

Index No.	Part No.	Description	No. Req'd
1	120.512	Scaler body (B23)	1
1	120.513	Scaler body (B14A)	1
2	143.528	Piston (B14A)	1
-	-	Piston (B23)	3
3	615 250545 0	Cross bit, round shank (B14A)	1
-	-	Cross bit, round shank (B23)	3
4	321.574	Throttle lever	1
5	395.521	Valve body assembly (4-6-13)	1
6	399.745	Valve stem set (15-18)	1
7	400.529	Cylinder (B14A)	1
-	-	Cylinder (B23)	3
8	570.552	Handle tube	1
9	570.553	Grip	1
10	577.522	Buffer ring (B14A)	1
-	-	Buffer ring (B23)	3
11	595.553	Brush seal (B14A)	1
-	-	Brush seal (B23)	3
12	607.521	Locknut	1
13	637.116	Roll pin	1
14	650.31	Sealing washer (B14A)	1
-	-	Sealing washer (B23)	3
15	658.239	O-Ring	1
16	671.538	Cap (B23)	1
17	671.539	Threaded adapter (B14A)	1
-	-	Threaded adapter (B23)	3
18	681.578	Valve spring	1
19	681.600	Compression spring (B14A)	1
-	-	Compression spring (B23)	3
-	-	Nameplate	1

Sort By:

143.528 Chicago Pneumatic Piston

Price $231.53

395.521 Chicago Pneumatic Valve Body B20

Price $682.59

399.745 Chicago Pneumatic Assembly Kit

Price $106.12

400.529 Chicago Pneumatic Cylinder

Price $291.17

577.522 Chicago Pneumatic Buffer Ring

Price $74.90

595.553 Chicago Pneumatic Brush B14A B23

Price $32.83

658.239 Chicago Pneumatic O Ring B15M

Price $14.99

681.578 Chicago Pneumatic Valve Spring

Price $7.23

B14A Chicago Pneumatic Piston Scaler / Chipper

B14A Chicago Pneumatic Piston Scaler / Chipper - Light weight and easy to handle thanks to simple design. Designed for versatile removal application including tight spot. Ideal for removal of thick scale, heavy corrosion, and hard coating.

Price $625.00
