CP9882 Chicago Pneumatic Riveter

CP9882 Chicago Pneumatic Riveter

Price $181.14
Part #: 8941098820


Product Code: CPTCP9882
Qty:

Description Prop65

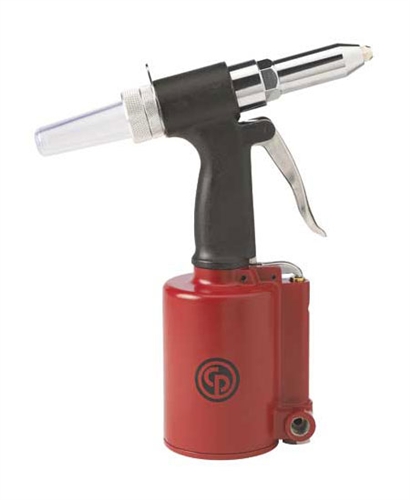

CP9882 Riveter - This air riveter has a compact size, simplistic construction, can utilize up to 3/16" (4.8mm) rivets and delivers heavy pulling up to 2,200 lbs (1,000 kg) of force. This is the ideal tool for softer material applications like aluminum, copper and other soft materials.
Product Features
  • Air riveter
  • for General Maintenance
  • Compact size
  • 3/16" (4.8 mm) max. capacity
  • For rivets in Aluminum, copper and softer materials
  • Heavy pulling: up to 2,200 lbs (1,000 kg)
  • Transparent container with holes for quick release of rivet ends
  • Includes: nose pieces for rivets 3/32", 1/8", 5/32" and 3/16" (2.4, 3.2, 4 and 4.8 mm)
  • Simple construction for easy maintenance
  • Great for trailer panels, number plates, and any type of panels maintenance

Specifications:

  • Model: CP9882
  • Max axial pulling load: 2,200 lb (1,000 kg)
  • Net weight: 3.3 lb (1.5 kg)
  • Length: 8.9" (225mm)
  • Average air consumption: 1 cfm (0.4 l/s)
  • Actual air consumption: 4 cfm (1.9 l/s)
  • Actual air consumption: 4 cfm (114 l/min)
  • Air inlet thread size: 0.25"
  • Min. hose size: 3/8" (10mm)
  • Noise level: 62 db(A)
  • Sound DBA pressure: 73 db(A)
  • Vibration (ISO-8662-12): <2.5 m/sē
  • Vibration-ISO-28927-8_ms2: <2.5 m/sē
  • Vibration-K-ISO-28927-8_ms2: - m/sē
