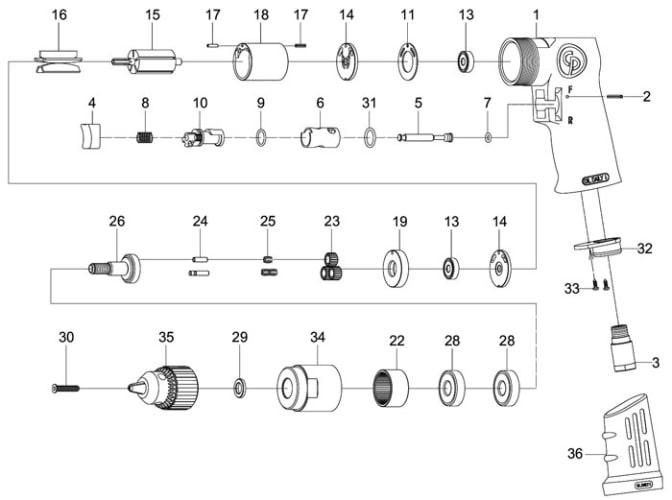

CP9790 Air Drill Repair Parts


Index
No.
 Part No.
Description
No.
Req'd
1
2050485823
Motor Housing
1
2
2050485833
Spring Pin
1
3
2050485103
Air Inlet
1
4
2050486783
Trigger
1
5
2050485843
Valve Stem
1
6
2050485853
Reverse Bushing
1
7
2050485133
O-Ring
1
8
2050485143
Valve Spring
1
9
2050485863
O-Ring
1
10
2050485873
Reverse Lever
1
11
2050485883
Motor Gasket
1
13
2050486803
Ball Bearing
2
14
2050485893
End Plate
2
15
2050485903
Rotor
1
16
2050485913
Rotor Blade Set
5
17
2050485923
Spring Pin
2
18
2050485933
Cylinder
1
19
2050485943
Spacer
1
22
2050485953
Internal Gear
1
23
2050485963
Planet Gear Set
3
24
2050484163
Pin
3
25
2050496733
Needle Bearing
3
26
2050485433
Work Spindle
1
28
2050486953
Ball Bearing
2
29
2050485223
Washer
1
30
2050487173
Chuck Screw
1
31
2050487773
O-Ring
1
32
2050485163
Exhaust Deflector
1
33
2050484193
Screw
2
34
2050485443
Clamp Nut
1
35
2050486973
Industrial Key Chuck (3/8") & Key (not shown)
1
39
2050485993
Rubber Grip
1
100
6158727980
Warning Label (not shown)
1
-
2050506543 Tune-Up Kit
(Incl: 7, 9, 11, 13, 16, 25, 28, 31)
Sort By:
2050484163 Chicago Pneumatic Pin 2050484163 Chicago Pneumatic Pin

2050484163 Chicago Pneumatic Pin

Price $5.64
2050484193 Chicago Pneumatic Screw 2050484193 Chicago Pneumatic Screw

2050484193 Chicago Pneumatic Screw

Price $5.41
2050485103 Chicago Pneumatic Air Inlet 2050485103 Chicago Pneumatic Air Inlet

2050485103 Chicago Pneumatic Air Inlet

Price $8.68
2050485133 Chicago Pneumatic O Ring 2050485133 Chicago Pneumatic O Ring

2050485133 Chicago Pneumatic O Ring

Price $5.64
2050485143 Chicago Pneumatic Valve Spring 2050485143 Chicago Pneumatic Valve Spring

2050485143 Chicago Pneumatic Valve Spring

Price $5.34
2050485163 Chicago Pneumatic Exhaust Diffuser 2050485163 Chicago Pneumatic Exhaust Diffuser

2050485163 Chicago Pneumatic Exhaust Diffuser

Price $5.41
2050485223 Chicago Pneumatic Chuck Spacer 2050485223 Chicago Pneumatic Chuck Spacer

2050485223 Chicago Pneumatic Chuck Spacer

Price $5.41
2050485433 Chicago Pneumatic Work Spindle 2050485433 Chicago Pneumatic Work Spindle

2050485433 Chicago Pneumatic Work Spindle

Price $23.57
2050485443 Chicago Pneumatic Clamp Nut 2050485443 Chicago Pneumatic Clamp Nut

2050485443 Chicago Pneumatic Clamp Nut

Price $30.97
2050485833 Chicago Pneumatic Spring Pin 2050485833 Chicago Pneumatic Spring Pin

2050485833 Chicago Pneumatic Spring Pin

Price $5.34
2050485843 Chicago Pneumatic Valve Stem 2050485843 Chicago Pneumatic Valve Stem

2050485843 Chicago Pneumatic Valve Stem

Price $8.63
2050485853 Chicago Pneumatic Reverse Bushing 2050485853 Chicago Pneumatic Reverse Bushing

2050485853 Chicago Pneumatic Reverse Bushing

Price $12.68
2050485863 Chicago Pneumatic O Ring 2050485863 Chicago Pneumatic O Ring

2050485863 Chicago Pneumatic O Ring

Price $5.34
2050485873 Chicago Pneumatic Reverse Lever 2050485873 Chicago Pneumatic Reverse Lever

2050485873 Chicago Pneumatic Reverse Lever

Price $14.23
2050485883 Chicago Pneumatic Motor Gasket 2050485883 Chicago Pneumatic Motor Gasket

2050485883 Chicago Pneumatic Motor Gasket

Price $5.34
2050485893 Chicago Pneumatic End Plate 2050485893 Chicago Pneumatic End Plate

2050485893 Chicago Pneumatic End Plate

Price $22.09
2050485903 Chicago Pneumatic Rotor 2050485903 Chicago Pneumatic Rotor

2050485903 Chicago Pneumatic Rotor

Price $41.30
2050485913 Chicago Pneumatic Rotor Blades 2050485913 Chicago Pneumatic Rotor Blades

2050485913 Chicago Pneumatic Rotor Blades

Price $12.68
2050485923 Chicago Pneumatic Spring Pin 2050485923 Chicago Pneumatic Spring Pin

2050485923 Chicago Pneumatic Spring Pin

Price $5.34
2050485933 Chicago Pneumatic Cylinder 2050485933 Chicago Pneumatic Cylinder

2050485933 Chicago Pneumatic Cylinder

Price $41.30
2050485943 Chicago Pneumatic Spacer 2050485943 Chicago Pneumatic Spacer

2050485943 Chicago Pneumatic Spacer

Price $8.68
2050485953 Chicago Pneumatic Internal Gear 2050485953 Chicago Pneumatic Internal Gear

2050485953 Chicago Pneumatic Internal Gear

Price $12.68
2050485963 Chicago Pneumatic Planet Gear (Set Of 3) 2050485963 Chicago Pneumatic Planet Gear (Set Of 3)

2050485963 Chicago Pneumatic Planet Gear (Set Of 3)

Price $48.66
2050485993 Chicago Pneumatic Rubber Grip 2050485993 Chicago Pneumatic Rubber Grip

2050485993 Chicago Pneumatic Rubber Grip

Price $15.77
2050486783 Chicago Pneumatic Trigger 2050486783 Chicago Pneumatic Trigger

2050486783 Chicago Pneumatic Trigger

Price $8.63
2050487173 Chicago Pneumatic Chuck Screw 2050487173 Chicago Pneumatic Chuck Screw

2050487173 Chicago Pneumatic Chuck Screw

Price $5.34
2050487773 Chicago Pneumatic O Ring 2050487773 Chicago Pneumatic O Ring

2050487773 Chicago Pneumatic O Ring

Price $5.34
2050496733 Chicago Pneumatic Needle Bearing (For Rp9285) 2050496733 Chicago Pneumatic Needle Bearing (For Rp9285)

2050496733 Chicago Pneumatic Needle Bearing (For Rp9285)

Price $11.07
2050506543 Chicago Pneumatic Tune Up Kit Cp9790, Cp9792 2050506543 Chicago Pneumatic Tune Up Kit Cp9790, Cp9792

2050506543 Chicago Pneumatic Tune Up Kit Cp9790, Cp9792

Price $87.00
CP9790C Chicago Pneumatic 3/8" Drill Reversible CP9790C Chicago Pneumatic 3/8" Drill Reversible

CP9790 3/8" Drill Reversible - This 3/8" reversible drill has a pistol style handle, powerful motor, ergonomic grip, and an industrial quality Jacobs chuck. This is the ideal tool for drilling and screw driving applications.

Price $151.58
