You are here: Home > Chicago Pneumatic Air Hammers Chisels Scalers & Files > Chicago Pneumatic CP9705 Air File Repair Parts

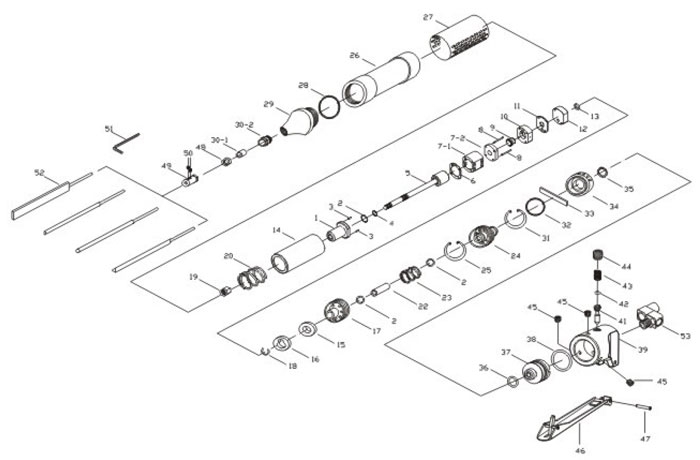

CP9705 Air File Repair Parts


Index
No.
Part No.
Description
No.
Req'd
1
2050518563 Cylinder Head Assembly
1
2
CA145067
O-Ring 3
3
CA145053
Front Dowel Pin
2
4
2050518853 O-Ring 1
5
2050518413 Piston Assembly
1
6
CA145056
Gasket
1
7-1
2050518403 Cylinder
1
7-2
2050518653 Cylinder End Plate
1
8
2050518943 Rear Dowel Pin
2
9
2050518533 Automatic Valve
1
10
CA145059
Valve Chest
1
11
CA145061
Valve Seat
1
12
2050518613 Valve Case
1
13
8940158337
Rubber Washer
1
14
2050518633 Main Liner
1
15
8940158367
Muffler
1
16
8940158366
Muffler Cap
1
17
2050518673 Adaptor
1
18
CA147121
Retaining Ring
1
19
2050519023 Guide Sleeve
1
20
2050518363 Spring
1
22
8940158413
Connecting Tube
1
23
8940158414
Spring
1
24
2050518383 Air Inlet
1
25
2050518773 Retaining Ring
1
26
2050518313 Body
1
27
2050518443 Rubber Sleeve
1
28
CA147097
O-Ring 1
29
2050518323 Front Head
1
30-1
2050518343 Sliding Sleeve
1
30-2
2050518333 Nose
1
31
8940158416
Retaining Ring
1
32
CA147144
O-Ring 1
33
2050518393 Muffler
1
34
2050518373 Exhaust Deflector
1
35
2050518883 Inverted Retaining Ring
1
36
2050518873 O-Ring 1
37
2050518453 Adaptor B
1
38
CA147068
O-Ring 1
39
2050518463 Back Head
1
41
CA145064
Valve Stem
1
42
CA145065
O-Ring
1
43
CA145066
Spring
1
44
2050518303 Screw
1
45
2050518293 Screw
3
46
2050518763 Safety Lever Assembly
1
47
2050518953 Spring Pin
1
48
2050518353 Lock Nut
1
49
2050518423 5mm File Holder
1
50
CA145076
Set Screw
2
51
CA145080
3mm Hex Wrench
1
52
2050518723 5mm Shank File - Rectangular
1
-
2050518733 5mm Shank File - Round
1
-
2050518743 5mm Shank File - Half Round
1
-
2050518753 5mm Shank File - Triangular
1
53
2050523733
Swivel Air Inlet
1
-
2050519113
5mm Shank File - Rectangular (5 pcs)
-
2050519123
5mm Shank File - Round (5 pcs)
-
2050519133
5mm Shank File - Half Round (5 pcs)
-
2050519143
5mm Shank File - Triangular (5 pcs)

Sort By:
2050518303 Chicago Pneumatic Screw 2050518303 Chicago Pneumatic Screw

2050518303 Chicago Pneumatic Screw

Price $3.89
2050518313 Chicago Pneumatic Body 2050518313 Chicago Pneumatic Body

2050518313 Chicago Pneumatic Body

Price $91.43
2050518323 Chicago Pneumatic Front Head 2050518323 Chicago Pneumatic Front Head

2050518323 Chicago Pneumatic Front Head

Price $78.17
2050518333 Chicago Pneumatic Nose 2050518333 Chicago Pneumatic Nose

2050518333 Chicago Pneumatic Nose

Price $39.84
2050518343 Chicago Pneumatic Sliding Sleeve 2050518343 Chicago Pneumatic Sliding Sleeve

2050518343 Chicago Pneumatic Sliding Sleeve

Price $10.09
2050518353 Chicago Pneumatic Lock Nut 2050518353 Chicago Pneumatic Lock Nut

2050518353 Chicago Pneumatic Lock Nut

Price $7.16
2050518363 Chicago Pneumatic Spring 2050518363 Chicago Pneumatic Spring

2050518363 Chicago Pneumatic Spring

Price $12.62
2050518373 Chicago Pneumatic Exhaust Deflector 2050518373 Chicago Pneumatic Exhaust Deflector

2050518373 Chicago Pneumatic Exhaust Deflector

Price $48.66
2050518383 Chicago Pneumatic Air Inlet 2050518383 Chicago Pneumatic Air Inlet

2050518383 Chicago Pneumatic Air Inlet

Price $76.69
2050518393 Chicago Pneumatic Muffler 2050518393 Chicago Pneumatic Muffler

2050518393 Chicago Pneumatic Muffler

Price $3.90
2050518403 Chicago Pneumatic Cylinder 2050518403 Chicago Pneumatic Cylinder

2050518403 Chicago Pneumatic Cylinder

Price $221.12
2050518413 Chicago Pneumatic Piston Assembly 2050518413 Chicago Pneumatic Piston Assembly

2050518413 Chicago Pneumatic Piston Assembly

Price $116.50
2050518423 Chicago Pneumatic 5mm File Holder 2050518423 Chicago Pneumatic 5mm File Holder

2050518423 Chicago Pneumatic 5mm File Holder

Price $70.78
2050518443 Chicago Pneumatic Rubber Sleeve 2050518443 Chicago Pneumatic Rubber Sleeve

2050518443 Chicago Pneumatic Rubber Sleeve

Price $38.35
2050518453 Chicago Pneumatic Adaptor B 2050518453 Chicago Pneumatic Adaptor B

2050518453 Chicago Pneumatic Adaptor B

Price $39.80
2050518463 Chicago Pneumatic Back Head 2050518463 Chicago Pneumatic Back Head

2050518463 Chicago Pneumatic Back Head

Price $117.93
2050518613 Chicago Pneumatic Valve Case 2050518613 Chicago Pneumatic Valve Case

2050518613 Chicago Pneumatic Valve Case

Price $39.80
2050518633 Chicago Pneumatic Main Liner 2050518633 Chicago Pneumatic Main Liner

2050518633 Chicago Pneumatic Main Liner

Price $81.06
2050518653 Chicago Pneumatic Cylinder End Plate 2050518653 Chicago Pneumatic Cylinder End Plate

2050518653 Chicago Pneumatic Cylinder End Plate

Price $42.75
2050518673 Chicago Pneumatic Adaptor 2050518673 Chicago Pneumatic Adaptor

2050518673 Chicago Pneumatic Adaptor

Price $116.50
2050518763 Chicago Pneumatic Safety Lever Assembly 2050518763 Chicago Pneumatic Safety Lever Assembly

2050518763 Chicago Pneumatic Safety Lever Assembly

Price $33.91
2050518773 Chicago Pneumatic Retaining Ring 2050518773 Chicago Pneumatic Retaining Ring

2050518773 Chicago Pneumatic Retaining Ring

Price $5.41
2050518853 Chicago Pneumatic O-Ring 2050518853 Chicago Pneumatic O-Ring

2050518853 Chicago Pneumatic O-Ring

Price $3.90
2050518873 Chicago Pneumatic O-Ring 2050518873 Chicago Pneumatic O-Ring

2050518873 Chicago Pneumatic O-Ring

Price $3.90
2050518883 Chicago Pneumatic Inverted Retaining Ring 2050518883 Chicago Pneumatic Inverted Retaining Ring

2050518883 Chicago Pneumatic Inverted Retaining Ring

Price $5.64
2050518943 Chicago Pneumatic Rear Dowel Pin (2) 2050518943 Chicago Pneumatic Rear Dowel Pin (2)

2050518943 Chicago Pneumatic Rear Dowel Pin (2)

Price $3.89
2050519023 Chicago Pneumatic Guide Sleeve 2050519023 Chicago Pneumatic Guide Sleeve

2050519023 Chicago Pneumatic Guide Sleeve

Price $30.99
8940158337 Chicago Pneumatic Rubber Washer 8940158337 Chicago Pneumatic Rubber Washer

8940158337 Chicago Pneumatic Rubber Washer

Price $3.89
8940158366 Chicago Pneumatic Muffler Cap 8940158366 Chicago Pneumatic Muffler Cap

8940158366 Chicago Pneumatic Muffler Cap

Price $3.87
8940158413 Chicago Pneumatic Connecting Tube 8940158413 Chicago Pneumatic Connecting Tube

8940158413 Chicago Pneumatic Connecting Tube

Price $8.66
8940158414 Chicago Pneumatic Spring 8940158414 Chicago Pneumatic Spring

8940158414 Chicago Pneumatic Spring

Price $10.11
8940158416 Chicago Pneumatic Retaining Ring 8940158416 Chicago Pneumatic Retaining Ring

8940158416 Chicago Pneumatic Retaining Ring

Price $3.87
CA145053 Chicago Pneumatic Pin-Dowel CA145053 Chicago Pneumatic Pin-Dowel

CA145053 Chicago Pneumatic Pin-Dowel

Price $3.87
CA145056 Chicago Pneumatic Gasket CA145056 Chicago Pneumatic Gasket

CA145056 Chicago Pneumatic Gasket

Price $7.18
CA145059 Chicago Pneumatic Valve CA145059 Chicago Pneumatic Valve

CA145059 Chicago Pneumatic Valve

Price $33.89
CA145061 Chicago Pneumatic Seat-Valve CA145061 Chicago Pneumatic Seat-Valve

CA145061 Chicago Pneumatic Seat-Valve

Price $16.22
CA145064 Chicago Pneumatic Stem-Throttle Valve CA145064 Chicago Pneumatic Stem-Throttle Valve

CA145064 Chicago Pneumatic Stem-Throttle Valve

Price $5.35
CA145065 Chicago Pneumatic 0-Ring CA145065 Chicago Pneumatic 0-Ring

CA145065 Chicago Pneumatic 0-Ring

Price $3.30
CA145066 Chicago Pneumatic Spring-Throttle Valve CA145066 Chicago Pneumatic Spring-Throttle Valve

CA145066 Chicago Pneumatic Spring-Throttle Valve

Price $3.88
CA145067 Chicago Pneumatic O-Ring CA145067 Chicago Pneumatic O-Ring

CA145067 Chicago Pneumatic O-Ring

Price $2.80
CA145080 Chicago Pneumatic Wrench-Hex CA145080 Chicago Pneumatic Wrench-Hex

CA145080 Chicago Pneumatic Wrench-Hex

Price $7.01
CA147068 Chicago Pneumatic O-Ring P22 CA147068 Chicago Pneumatic O-Ring P22

CA147068 Chicago Pneumatic O-Ring P22

Price $3.87
CA147097 Chicago Pneumatic O-Ring S28 CA147097 Chicago Pneumatic O-Ring S28

CA147097 Chicago Pneumatic O-Ring S28

Price $5.41
CA147121 Chicago Pneumatic Ring-Snap CA147121 Chicago Pneumatic Ring-Snap

CA147121 Chicago Pneumatic Ring-Snap

Price $3.89
CA147144 Chicago Pneumatic O-Ring S30 CA147144 Chicago Pneumatic O-Ring S30

CA147144 Chicago Pneumatic O-Ring S30

Price $5.41
CP9705 Chicago Pneumatic 0.2" Air File CP9705 Chicago Pneumatic 0.2" Air File

CP9705 0.2" Air File - This air file is loaded with outstanding features like: lock-off lever to prevent unintentional starts, full 360 degree swiveling air inlet, comfortable rubber grip and it comes with four file types (flat, half round, round and triangular).

Price $307.72
