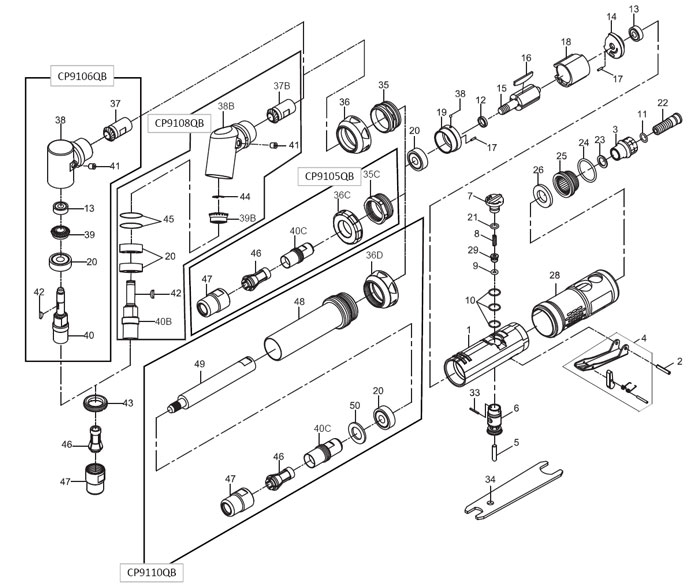

CP9110Q 1/4" Extended Die Grinder Repair Parts
Index
No.
|
Part No.
|
Description
|
No.
Req'd
|
-
|
8940168865
|
Housing Kit
|
1
|
|
Motor Housing
|
1
|
28
|
|
Grip
|
1
|
-
|
8940168866
|
Inlet Kit
|
3
|
|
Air Inlet
|
1
|
11
|
|
O-Ring (7.5 x 1.5)
|
1
|
22
|
|
Fixed Shaft
|
1
|
23
|
|
Washer
|
1
|
24
|
|
O-Ring (22.8 x 2)
|
1
|
25
|
|
Deflector
|
1
|
26
|
|
Damping Material
|
1
|
-
|
8940168867
|
Lever Kit
|
2
|
|
Lever Pin (3 x 18)
|
1
|
4
|
|
Throttle Lever Assembly
|
1
|
-
|
8940168868
|
Reverse Kit
|
5
|
|
Valve Shaft
|
1
|
6
|
|
Valve
|
1
|
7
|
|
Knob
|
1
|
8
|
|
Spring
|
1
|
9
|
|
O-Ring (3.8 x 1.9)
|
1
|
10
|
|
O-Ring (10.5 x 1)
|
3
|
21
|
|
O-Ring (6 x 1.5)
|
1
|
29
|
|
Throttle Valve
|
1
|
33
|
|
Spring Pin (1.5 x 12)
|
1
|
-
|
8940168869
|
Motor Kit
|
12
|
|
Rotor Spacer
|
1
|
15
|
|
Rotor
|
1
|
16
|
2050484373
|
Rotor Vane Set
|
4
|
18
|
|
Cylinder
|
1
|
-
|
8940168870
|
Rear Plate Kit
|
13
|
|
Ball Bearing (696ZZ)
|
1
|
14
|
|
Rear End Plate
|
1
|
17
|
|
Spring Pin (1.5 x 6)
|
1
|
-
|
8940168871
|
Front Plate Kit
|
19
|
|
Front End Plate
|
1
|
20
|
|
Ball Bearing (608ZZ)
|
1
|
17
|
|
Spring Pin (1.5 x 6)
|
1
|
-
|
8940168872
|
Front Coupling Kit
CP9106Q-B & CP9108Q-B
|
35
|
|
Front Coupling
|
1
|
36
|
|
Front Cap
|
1
|
-
|
8940168873
|
Front Coupling Kit
CP9105Q-B
|
35C
|
|
Front Coupling
|
1
|
36C
|
|
Front Cap
|
1
|
-
|
8940168874
|
Head Kit CP9106Q-B (Incl:
41, 42, 43)
|
40
|
2050484463
|
Spindle
|
1
|
38
|
|
Head
|
1
|
-
|
8940168875
|
Bevel Kit CP9106Q-B
|
13
|
|
Ball Bearing (696ZZ)
|
1
|
20
|
|
Ball Bearing (608ZZ)
|
1
|
37
|
|
Pinion Gear
|
1
|
39
|
2050484433
|
Bevel Gear
|
1
|
-
|
8940168876
|
Head Kit CP9108Q-B
|
38B
|
|
Head
|
1
|
40B
|
2050484523
|
Spindle
|
1
|
-
|
8940168877
|
Bevel Kit
|
20
|
|
Ball Bearing (608ZZ)
|
2
|
37B
|
|
Pinion Gear
|
1
|
39B
|
|
Bevel Gear
|
1
|
44
|
|
Crescent Ring
|
1
|
45
|
|
Shim
|
2
|
-
|
8940168878
|
Head Kit CP9110Q-B
|
20
|
|
Ball Bearing (608ZZ)
|
1
|
48
|
|
Exterior Housing
|
1
|
49
|
|
Tension Shaft
|
1
|
50
|
|
Washer
|
1
|
-
|
34
|
2050484423
|
Spanner
|
2
|
36D
|
2050487083
|
Front Cap CP9110Q-B
|
1
|
43
|
2050484443
|
Lock Ring
|
1
|
46
|
2050484293
|
Collet (1/4")
|
1
|
-
|
2050495833
|
Collet (6mm)
|
1
|
47
|
2050484413
|
Collet Nut
|
1
|
40C
|
2050484533
|
Spindle
|
1
|
-
|
8940168879
|
Tune-Up Kit CP9105Q-B
& CP9110Q-B
(Incl: 2, 9, 10, 11, 13, 16, 17(x2), 20, 21, 24, 26)
|
-
|
8940168880
|
Tune-Up Kit CP9106Q-B
& CP9108Q-B
(Incl: 2, 9, 10, 11, 13, 16, 17(x2), 20, 21, 39, 24, 26, 42)
|
|
|
