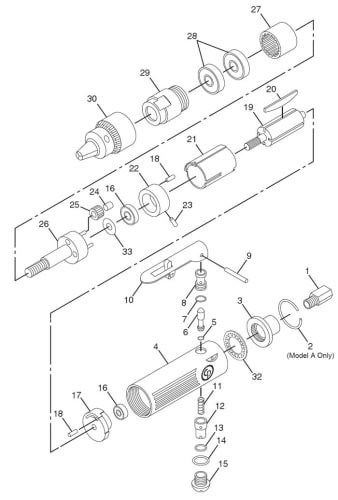

CP887 In-Line Drill Repair Parts


Index
No. 		Part No. Description No.
Req'd
1 CA144870 Bushing - Air Inlet (Model A) 1
- CA157739 Bushing - Air Inlet (Model B) 1
2 CA144871 Ring - Retaining (Model A Only) 1
3 CA144872 Deflector - Exhaust (Model A) 1
- CA157734 Deflector - Exhaust (Model B) 1
4 CA144915 Housing - Motor (Model A) 1
- CA157737 Housing - Motor (Model B) 1
5 CA144874 O-Ring 1
6 CA144875 Valve - Throttle 1
7 CA144876 O-Ring 1
8 CA144877 Bushing - Throttle Valve 1
9 CA144878 Pin - Roll 1
10 CA144879 Lever - Throttle 1
11 CA144880 Spring - Throttle Valve 1
12 CA144881 Regulator - Air 1
13 CA144882 O-Ring 1
14 CA144883 O-Ring 1
15 CA144884 Plug - Throttle Valve 1
16 CA144885 Bearing - Ball 2
17 CA144886 Plate - Rear End
(Incl Index No: 18) 		1
18 CA144887 Pin - Roll 2
19 CA144916 Rotor 1
20 CA144889 Blade Set - Rotor (4) 1
21 CA144891 Liner 1
22 CA144917 Plate - Front End
(Incl Index Nos: 18 & 23) 		1
23 CA144893 Pin - Roll 1
25 CA144919 Gear - Idler 3
26 CA144920 Spindle 1
27 CA144921 Gear - Internal 1
28 CA145309 Bearing - Ball 2
29 CA144922 Nut - Clamp 1
30 CA144898 Chuck - Drill 3/8" 1
31 CA144813 Decal - Safety Warning (Not Shown) 1
32 CA157735 Silencer 1
33 8940158831 Washer 1
- CA144918 Motor Assembly (Model A)
Incl Index Nos: 16, 17, 19, 20, 21 & 22) 		1
- CA127175 Rear Exhaust Accessory Kit (Model A) 1
- CA121582 Chuck - Key (Not Shown) 1
