CP825 Chicago Pneumatic 1/4" Ratchet Small

CP825 Chicago Pneumatic 1/4" Ratchet Small

Part #: T023145


Product Code: CPTCP825
Discontinued See CP825C

Description

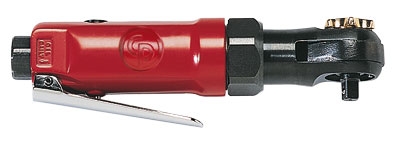

CP825 1/4" Ratchet Small - This 1/4" square drive air ratchet has a progressive teasing throttle, conveniently located forward / reverse button and is small in size (only 6.5" long). This is the tool to have for getting into those limited space applications.
Product Features
  • 1/4" ratchet
  • Progressive tease throttle
  • Small ratchet, only 6.5" (165 mm) long
  • Convenient forward and reverse button
  • Ideal for tight access applications
  • Compact and lightweight

Specifications:

  • Model: CP825
  • Square drive: 1/4"
  • Working torque Range: 5-15 ft-lbs (6-21 Nm)
  • Max torque: 15 ft.lbs (21 Nm)
  • Free speed: 200 rpm
  • Net weight: 1.9 lb (0.9 kg)
  • Length: 6.5" (165mm)
  • Average air consumption: 2 3/4 cfm (78 l/min)
  • Actual air consumption: 11 cfm (312 l/min)
  • Actual air consumption: 11 cfm (5.1 l/s)
  • Air inlet thread size: 0.25"
  • Min. hose size: 3/8" (10mm)
  • Sound DBA pressure: 98 db(A)
  • Noise level: 87 db(A)
  • Vibration (ISO-8662-7): 5 m/sē
  • Vibration α (ISO-28927-2): 3 m/sē
  • Vibration K (ISO-28927-2): 1.2 m/sē
  • Sound DBA pressure: 98
