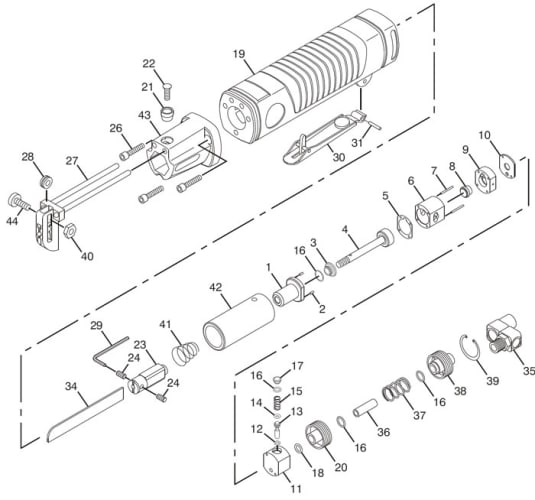

CP7901 Reciprocating Saw Repair Parts


Index
No.
Part No. Description No.
Req'd
1 CA145052 Cylinder Head Assembly 1
2 CA145053 Pin - Dowel 2
3 CA145054 Bumper 1
4 CA145055 Piston
Incl Index No: 3
1
5 CA145056 Gasket 1
6 CA145057 Cylinder 1
7 CA145058 Pin - Dowel 2
8 CA145059 Valve 1
9 CA145060 Valve - Assembly
Incl Index No: 8
1
10 CA145061 Seat Valve 1
11 8940158401 Body - Throttle Valve 1
12 CA145063 O-Ring 1
13 8940158402 Stem - Throttle Valve 1
14 CA145065 O-Ring 1
15
8940158403 Spring - Throttle Valve 1
16 CA145067 O-Ring 4
17 CA145068 Cap - Throttle Valve 1
18 8940158337 Rubber Washer 1
19 8940158404 Housing - Motor 1
20 8940158405 Bushing - Air Inlet Assembly
(Incl: 8940158366 Muffler Cap &
8940158367 Muffler)
1
21 8940158406 Spacer 1
22 8940158407 Screw 1
23 CA145074 Holder - Blade 1
24 CA145075 Set - Screw 2
26 8940158408 Screw 3
27 8940158409 Guard - Blade 1
28 8940158410 Guide - Wheel 1
29 CA145080 Wrench - Hex 1
30 8940158411 Lever - Throttle 1
31 CA145082 Spring Pin 1
34 8940158775 Blade - Saw (18T) (5) 1
- 8940158776 Blade - Saw (24T) (5) 1
- 8940158777 Blade - Saw (32T) (5) 1
35 8940158412 Universal Swivel Air Inlet Joint 1
36 8940158413 Connecting Tube 1
37 8940158414 Spring 1
38 8940158415 Air Inlet 1
39 8940158416 Retaining Ring 1
40 8940158417 Nylon Nut 1
41 8940158418 Shock Absorbent Spring 1
42 8940158419 Main Liner 1
43 8940158420 Front Head 1
44 8940158421 Screw 1
- 8940158363 Decal - Warning Safety (Not Shown) 1
Sort By:
MIL1001-4 Milton Industries Tool Oil 4oz. Flip Top 1001-4 Milton Industries Tool Oil 4oz. Flip Top

Extends life and performance of air tools, lubricators, valves and cylinders. Prevents seizure of air tools and pneumatic equipment. Recommended for tools requiring a 10 weight non-detergent lubricant. Working temperature: 5° F to 350° F.

Price $5.15
8940158337 Chicago Pneumatic Rubber Washer 8940158337 Chicago Pneumatic Rubber Washer

8940158337 Chicago Pneumatic Rubber Washer

Price $3.89
8940158401 Chicago Pneumatic Body-Throttle Valve 8940158401 Chicago Pneumatic Body-Throttle Valve

8940158401 Chicago Pneumatic Body-Throttle Valve

Price $19.16

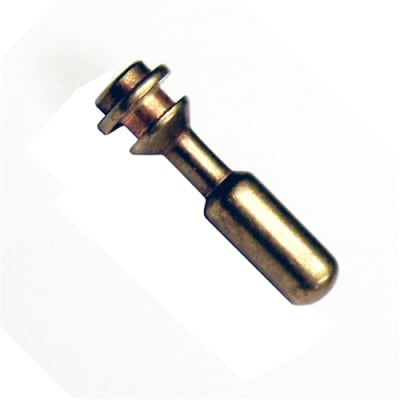

8940158402 Chicago Pneumatic Stem-Throttle Valve 8940158402 Chicago Pneumatic Stem-Throttle Valve

8940158402 Chicago Pneumatic Stem-Throttle Valve

Price $3.87
8940158403 Chicago Pneumatic Spring-Throttle Valve 8940158403 Chicago Pneumatic Spring-Throttle Valve

8940158403 Chicago Pneumatic Spring-Throttle Valve

Discontinued See CA145066
8940158404 Chicago Pneumatic Housing-Motor 8940158404 Chicago Pneumatic Housing-Motor

8940158404 Chicago Pneumatic Housing-Motor

Price $89.90
8940158405 Chicago Pneumatic Bushing-Air Inlet As 8940158405 Chicago Pneumatic Bushing-Air Inlet As

8940158405 Chicago Pneumatic Bushing-Air Inlet As

Price $38.34
8940158406 Chicago Pneumatic Spacer 8940158406 Chicago Pneumatic Spacer

8940158406 Chicago Pneumatic Spacer

Price $11.09
8940158407 Chicago Pneumatic Screw 8940158407 Chicago Pneumatic Screw

8940158407 Chicago Pneumatic Screw

Price $3.89
8940158408 Chicago Pneumatic Screw 8940158408 Chicago Pneumatic Screw

8940158408 Chicago Pneumatic Screw

Price $3.89
8940158409 Chicago Pneumatic Guard-Blade 8940158409 Chicago Pneumatic Guard-Blade

8940158409 Chicago Pneumatic Guard-Blade

Price $27.40
8940158410 Chicago Pneumatic Guide Wheel 8940158410 Chicago Pneumatic Guide Wheel

8940158410 Chicago Pneumatic Guide Wheel

Price $10.00
8940158411 Chicago Pneumatic Lever-Throttle 8940158411 Chicago Pneumatic Lever-Throttle

8940158411 Chicago Pneumatic Lever-Throttle

Price $23.56
8940158413 Chicago Pneumatic Connecting Tube 8940158413 Chicago Pneumatic Connecting Tube

8940158413 Chicago Pneumatic Connecting Tube

Price $8.66
8940158414 Chicago Pneumatic Spring 8940158414 Chicago Pneumatic Spring

8940158414 Chicago Pneumatic Spring

Price $10.11
8940158415 Chicago Pneumatic Air Inlet 8940158415 Chicago Pneumatic Air Inlet

8940158415 Chicago Pneumatic Air Inlet

Price $23.56
8940158416 Chicago Pneumatic Retaining Ring 8940158416 Chicago Pneumatic Retaining Ring

8940158416 Chicago Pneumatic Retaining Ring

Price $3.87
8940158417 Chicago Pneumatic Nylon Nut 8940158417 Chicago Pneumatic Nylon Nut

8940158417 Chicago Pneumatic Nylon Nut

Price $3.89
8940158418 Chicago Pneumatic Shock Absorbent Spri 8940158418 Chicago Pneumatic Shock Absorbent Spri

8940158418 Chicago Pneumatic Shock Absorbent Spri

Price $16.20
8940158419 Chicago Pneumatic Main Liner 8940158419 Chicago Pneumatic Main Liner

8940158419 Chicago Pneumatic Main Liner

Price $29.54
8940158420 Chicago Pneumatic Front Head 8940158420 Chicago Pneumatic Front Head

8940158420 Chicago Pneumatic Front Head

Price $45.72
8940158421 Chicago Pneumatic Screw 8940158421 Chicago Pneumatic Screw

8940158421 Chicago Pneumatic Screw

Price $3.89
8940158455 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease 100Gm Tube 8940158455 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease 100Gm Tube

8940158455 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease 100Gm Tube

Price $29.28
8940158456 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease Cartridge 8940158456 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease Cartridge

8940158456 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease Cartridge

Price $36.54

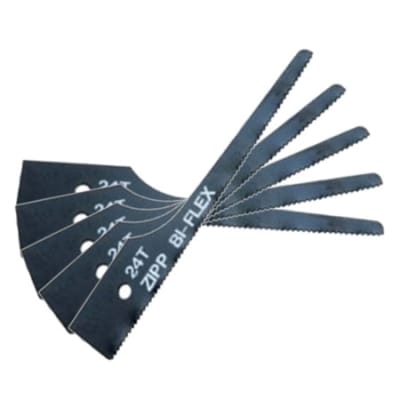

8940158776 Chicago Pneumatic Blade-Saw 24 Tooth Per Inch Set (5Pcs) 8940158776 Chicago Pneumatic Blade-Saw 24 Tooth Per Inch Set (5Pcs)
