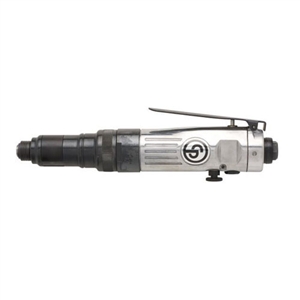

CP782 Chicago Pneumatic In-Line Screwdriver High Torque

CP782 Chicago Pneumatic In-Line Screwdriver High Torque

Price $445.79
Part #: T025097


Product Code: CPTCP782
Qty:

Description Prop65

CP782 In-Line Screwdriver High Torque - This in-line pneumatic screw driver has features like: straight cushion clutch, external clutch adjustment, 1/4" hex quick-change chuck and it delivers up to 44 in-lbs of torque.
Product Features
  • Straight Cushion clutch Screwdriver
  • External clutch adjustment
  • Built-in 1/4" Female Hexagonal quick-change
  • Convenient one-hand forward/reverse valve
  • High torque: 44 in.lbs (5 Nm)
  • Progressive lever start and suspension bail
  • Reliable cushion clutch
  • Comfortable use thanks to low weight
  • Faster cycle times with 1,800 rpm
  • Ideal tool for general assembly operations on metal, wood, PVC, or any repair applications

Specifications:

  • Model: CP782
  • Output drive: 1/4"
  • Handle type: Straight
  • Bit holder: Quick Change Hexagonal Female
  • Clutch type: Cushion
  • VSTFreeSpeed_rpm: 1800 rpm
  • Free speed: 1800 rpm
  • Max working torque: 4.97 Nm
  • Min working torque: 3.5 Nm
  • Net weight: 2 1/2 lb (1.13 kg)
  • Length: 9.63" (245mm)
  • Diameter: 0.76" (30mm)
  • Min. hose size: 3/8" (10mm)
  • Noise level: 93.9 db(A)
  • Sound Power: 104.9 db(A)
  • Vibration (ISO-8662-7): 12 m/sē
  • Vibration α (ISO-28927-2): <2.5 m/sē
  • Vibration K (ISO-28927-2): - m/sē
  • Average air consumption: 4 cfm (1.9 l/s)
  • Average air consumption: 4 cfm (113 l/min)
  • Actual air consumption: 16 cfm (7.6 l/s)
  • Actual air consumption: 16 cfm (453 l/min)
  • VSTFreeSpeedAirConsumption_ls: 7.6 l/s
  • Free speed air consumption: 16.1 cfm (7.6 l/s)
  • Air inlet thread size: 0.25"
