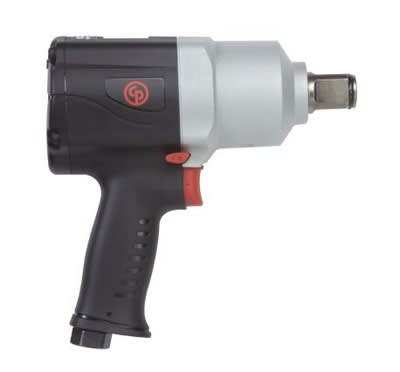

CP7779 Chicago Pneumatic 1" Impact Wrench S2S Composite

CP7779 Chicago Pneumatic 1" Impact Wrench S2S Composite

Price $736.00
Part #: 8941077790


Product Code: CPTCP7779
Qty:

Description Prop65

CP7779 1" Impact Wrench S2S Composite - This 1" square drive impact wrench has some outstanding features like: a dual retainer, 1,440 ft-lbs of torque, a low consumption motor, lightweight yet durable construction and a full teasing trigger.
Product Features
  • 1" composite impact wrench with dual retainer (hole + ring)
  • 1,440 ft.lbs (1,950Nm) of maximum torque in reverse
  • Low consumption air motor at 31 cfm (14.7 l/s)
  • Insulating and lightweight composite handle
  • S2S easy forward reverse
  • Full teasing developed trigger
  • Powerful impact for General Maintenance
  • Maximize operator comfort: lightweight and balanced design
  • Energy savings: low air consumption

Specifications:

  • Output drive: 1" Square
  • Working Torque Range (fwd): 300-1,080 ( 407-1,464 Nm)
  • Maximum Torque (reverse): 1440 ft.lbs (1950 Nm)
  • Free speed: 7000 rpm
  • Blows per minute: 1200
  • Net weight: 7.7 lb (3.5 kg)
  • Power/weight ratio: 187 ft.lb/lb (557.1 Nm/kg)
  • Length: 8.7" (221mm)
  • Side to center: 1.53" (39mm)
  • Average air consumption: 7.75 cfm (3.7 l/s)
  • Actual air consumption: 31 cfm (14.7 l/s)
  • Air inlet thread size: 0.375"
  • Min. hose size: 1/2" (13mm)
  • Noise level: 97 db(A)
  • Sound Power: 108 db(A)
  • Vibration α (ISO-28927-2): 12.6 m/sē
  • Vibration K (ISO-28927-2): 3.4 m/sē
  • Socket retainer: Dual
  • Clutch type: Twin hammer
  • Box dimensions: 10" x 10" x 4.6" (253mm x 253mm x 117mm)
