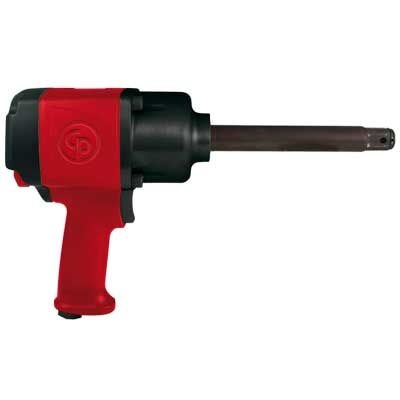

CP7763-6 Chicago Pneumatic 3/4" Impact Wrench with 6" Extended Anvil

CP7763-6 Chicago Pneumatic 3/4" Impact Wrench with 6" Extended Anvil

Price $650.37
Part #: 8941077636


Product Code: CPTCP7763-6
Qty:

Description Prop65

CP7763-6 3/4" Impact Wrench with 6" Extended Anvil - This 3/4" square drive impact wrench has: a 6" extended anvil, twin hammer clutch,1,200 ft-lbs of torque, combined forward / reverse valve and power regulator and has a powerful motor with a durable clutch.
Product Features
  • 3/4" impact wrench
  • with 6" extended anvil (ring socket retainer)
  • Twin hammer clutch
  • High power: 1,200 ft.lbs (1,627 Nm)
  • Combined power regulator with forward/reverse
  • Powerful motor and durable clutch
  • Operator comfort
  • Ideal for spring work, pinion nut, tractor pad removal, truck tire work, and major engine teardowns

Specifications:

  • Model: CP7763-6
  • Handle type: Pistol
  • Square drive: 3/4"
  • Working Torque Range (fwd): 100-950 ft-lbs (136-1,288 Nm)
  • Maximum Torque (reverse): 1200 ft-lbs (1630 Nm)
  • Free speed: 6300 rpm
  • Blows per minute: 900
  • Net weight: 13.85 lb (6.28 kg)
  • Power/weight ratio: 86.6 ft.lb/lb (259.1 Nm/kg)
  • Length: 15" (381mm)
  • Side to center: 1.8" (45mm)
  • Average air consumption: 7.5 cfm (3.5 l/s)
  • Actual air consumption: 30 cfm (14.2 l/s)
  • Air inlet thread size: 0.375"
  • Min. hose size: 1/2" (13mm)
  • Noise level: 96 db(A)
  • Sound Power: 107 db(A)
  • Vibration (ISO-8662-7): 9 m/sē
  • Vibration α (ISO-28927-2): 10.4 m/sē
  • Vibration K (ISO-28927-2): 4.2 m/sē
  • Socket retainer: Dual
  • Clutch type: Twin hammer
