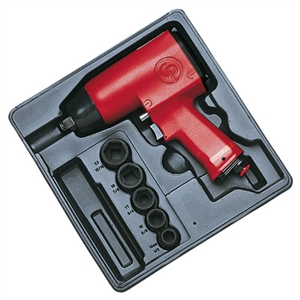

CP7620KM Chicago Pneumatic 1/2" Impact Wrench Kit Metric

CP7620KM Chicago Pneumatic 1/2" Impact Wrench Kit Metric

Part #: 8941276201


Product Code: CPTCP7620KM
Discontinued

Description Prop65

CP7620Km 1/2" Impact Wrench Kit Metric - This 1/2" square drive impact wrench kit has the DYNA-PACT clutch, one hand operation of the forward / reverse button, four power settings, full power in reverse, exhaust air is ported through the handle and it has a full 360 degree swiveling air inlet. This tool is ideal for all general repair applications.
Product Features
  • 1/2" impact wrench
  • DYNA-PACT clutch mechanism in oil bath
  • One-handed push button forward/reverse with 4 positive power settings
  • Full power in reverse
  • Through handle air exhaust and 360° air inlet swivel
  • Power and speed
  • Operator comfort with smooth clutch mechanism
  • A powerful yet economical tool ideal for general repair, transmission work, exhaust systems, and body shops

Kit Includes:

  • CP7620 1/2" Square Drive Impact Wrench
  • 5 Metric Sockets Sized:
    • 14mm
    • 16mm
    • 17mm
    • 19mm
    • 22mm
  • Storage / carrying case

Specifications:

  • Model: CP7620 Kit Metric
  • Handle type: Pistol
  • Square drive: 1/2"
  • Working Torque Range (fwd): 25-310 ft-lbs (34-420 Nm)
  • Working Torque Range (reverse): 425 ft.lbs (576 Nm)
  • Maximum Torque (fwd): 2.33 ft.lbs (5.13 Nm)
  • Maximum Torque (reverse): 425 ft.lbs (576 Nm)
  • Free speed: 8,400 rpm
  • Net weight: 5.13 lb (2.33 kg)
  • Power/weight ratio: 82.8 ft.lb/lb (247.2 Nm/kg)
  • Length: 7.5" (191mm)
  • Actual air consumption: 15 cfm (7.1 l/s)
  • Air inlet thread size: 0.25"
  • Min. hose size: 3/8" (10mm)
  • Noise level: 93 db(A)
  • Sound Power: 104 db(A)
  • Vibration (ISO-8662-7): 3.4 m/sē
  • Socket retainer: Friction ring
  • Clutch type: Pin clutch
