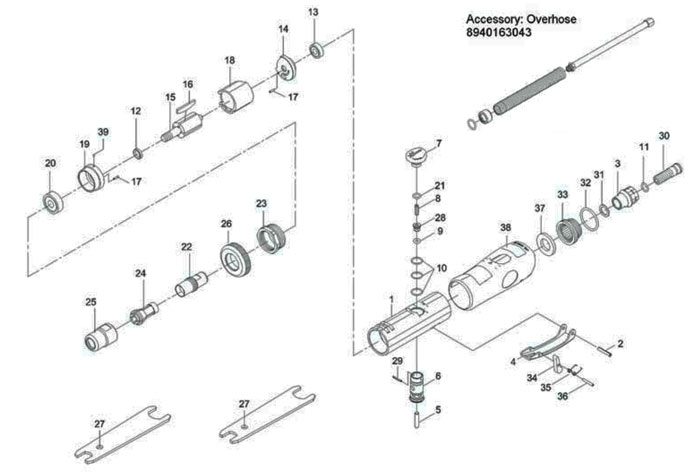

CP7556 Angle Grinder Repair Parts


Index
No.		 Part No. Description No.
Req'd
1 8940162910 Motor Housing 1
2 2050484203 Lever Pin (3 x 18L) 1
3 8940162911 Air Inlet 1
4 8940162912 Throttle Lever 1
5 8940162913 Valve Shaft 1
6 8940162914 Valve 1
7 8940162915 Knob 1
8 2050486193 Spring 1
9 2050485623 O-Ring 3.8 x 1.9) 1
10 2050484483 O-Ring (3) (10.5 x 1.0) 1
11 2050485603 O-Ring (7.5 x 1.5) 1
12 2050484343 Rotor Spacer 1
13 2050486853 Ball Bearing (696ZZ) 1
14 2050484353 Rear End Plate 1
15 2050484363 Rotor 1
16 2050484373 Vane (4) 1
17 2050484133 Spring Pin (1.5 x 6) 2
18 2050484383 Cylinder 1
19 2050484393 Front End Plate 1
20 2050486823 Ball Bearing (608ZZ) 1
21 8940162916 O-Ring (6 x 1.5) 1
22 2050484403 Spindle 1
23 2050486243 Front Coupling 1
24 2050484293 Collet (1/4") 1
24 2050485833 Collet (6mm) 1
25 2050484413 Collet Nut 1
26 2050486313 Front Cap 1
27 2050484423 Spanner 2
28 2050486283 Throttle Valve 1
29 8940162917 Spring Pin (1.5 x 12L) 1
30 8940162918 Fixed Shaft 1
31 8940162919 Washer 1
32 8940162920 O-Ring (22.8 x 2) 1
33 8940162921 Deflector 1
34 8940162922 Safety Bar 1
35 2050486213 Spring 1
36 2050486233 Spring Pin (2 x 15L) 1
37 8940162923 Damping Material 1
38 8940162924 Grip 1
39 2050484493 Steel Ball 1
