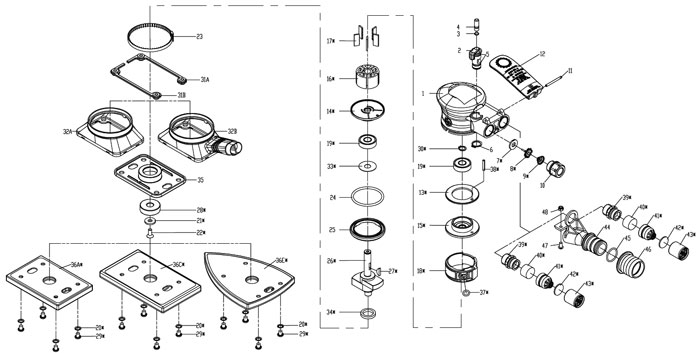

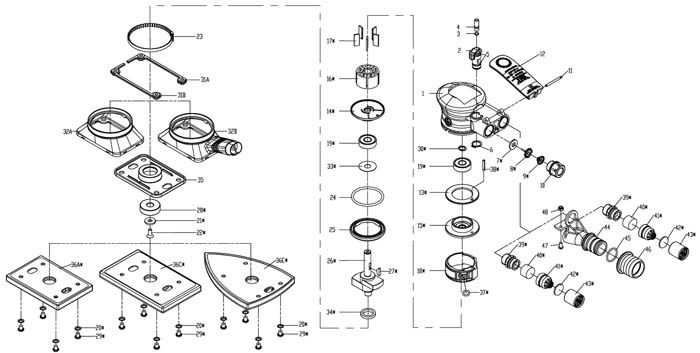

CP7264 Random Orbital Sander Repair Parts


Index
No.
 Part No.
Description
No.
Req'd
-
8940168367 THROTTLE KIT
2

Regulator
1
3

Valve Stem
1
4

O-Ring
1
5

O-Ring 2
6

Retaining Ring
1
-
8940168368 VALVE SEAL KIT
7

Valve Seat
1
8

Tip Valve
1
9

Conical Spring
1
-
8940169040
EXHAUST KIT (for NV & CV)
39

Muffler Screw
1
40

Foam
1
41

Nozzle
1
42

Muffler
1
43

Muffler Cap
1
-
8940169041
ECO CHANGE MOTOR KIT
13

Front Ring
1
14

Rear End Plate
1
15

Front End Plate
1
16

Rotor
1
17
8940163417
Blades Set
5
18

Cylinder
1
19

Bearing
2
24

O-Ring 1
25

Lock Ring
1
26
8940169032
Motor Shaft Balancer
1
27

Rotor Key
1
30

Snap Ring
1
33

Anti-Dust Washer
1
37

O-Ring 1
38

Pin
1
-
8940169232
CENTRAL VACUUM KIT
44

Vacuum Adapter
1
45

O-Ring 1
46

Revolving Connector
1
47

Screw
1
48

U Nut
1
-
1
8940163399
Housing
1
10
8940163409
Air Inlet
1
11
8940163494
Spring Pin
1
12
8940169027
Lever
1
20
8940169028
Washer
4
21
8940169029
Flat Washer
1
22
8940169030
Screw
1
23
8940169031
Lace
1
28
8940169033
Bearing
1
29
8940169034
Screw
4
31A
8940169485
Skirt fixation (right)
1
31B
8940169486
Skirt fixation (left)
1
32A
8940169036
Skirt
1
32B
8940169037
Skirt
1
34

Washer
1
35
8940169039
Pad Plate
1
36A
8940168998
74mm x 109mm CV H&L Pad Set CP7263CVE
1
36A
8940168997
74mm x 109mm NV H&L Pad Set CP7263E 1
36C
8940169000
80mm x 130mm CV H&L Pad Set CP7266CVE 1
36C
8940168999
80mm x 130mm NV H&L Pad Set CP7267 series
1
36E
8940169001
80mm x 130mm CV H&L Pad Set CP7263CVE 1
-
8940169002
70mm x 198mm CV H&L Pad Set CP7264 series
1
-
6158727980
Warning Label (not shown)
1
-
8940163459 TUNE-UP KIT
-
8940163460 MAINTENANCE KIT

8940163525
Pad Wrench
1

8940163579
Locking Ring Wrench
1

8940163578
Motor Extractor
1
