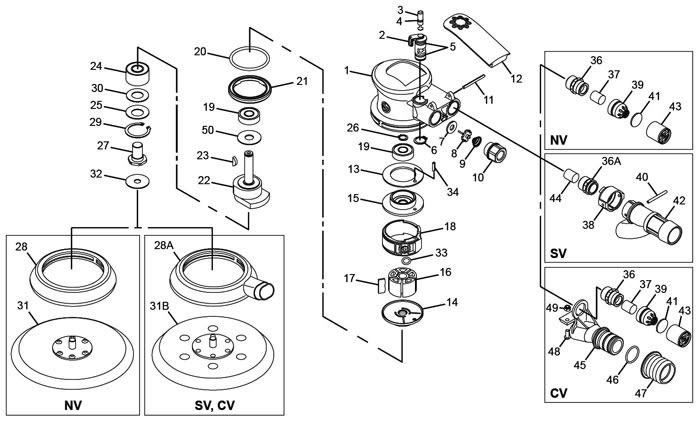

Index
No.
|
Part
No.
|
Description
|
No.
Req'd
|
-
|
8940168367
|
Throttle Kit
|
2
|
|
Regulator
|
1
|
3
|
|
Valve Stem
|
1
|
4
|
|
O-Ring
|
1
|
5
|
|
O-Ring
|
2
|
6
|
|
Retaining Ring
|
1
|
-
|
8940168368
|
Valve Seat Kit
|
7
|
|
Valve Seat
|
1
|
8
|
|
Tip Valve
|
1
|
9
|
|
Conical Spring
|
1
|
-
|
8940168369
|
Exhaust Kit (for NV
& CV)
|
36
|
|
Muffler Screw
|
1
|
37
|
|
Muffler
|
1
|
39
|
|
Nozzle
|
1
|
41
|
|
Muffler
|
1
|
43
|
|
Muffler Cap
|
1
|
-
|
|
ECO Change Motor Kit
Composition
|
13
|
|
Front Ring
|
1
|
14
|
|
Rear End Plate
|
1
|
15
|
|
Front End Plate
|
1
|
16
|
|
Rotor
|
1
|
17
|
8940163417
|
Blades Set (5 pcs)
|
1
|
18
|
|
Cylinder
|
1
|
19
|
|
Bearing
|
2
|
20
|
8940163420
|
O-Ring
|
1
|
22
|
|
Motor Shaft Balancer (see detail
below **)
|
1
|
23
|
|
Rotor Key
|
1
|
24
|
|
Bearing
|
1
|
25
|
|
Bearing Shield
|
1
|
26
|
|
Snap Ring
|
1
|
27
|
|
Balancer Shaft
|
1
|
29
|
|
Snap Ring
|
1
|
30
|
|
Bearing Seal
|
1
|
33
|
8940163435
|
O-Ring
|
1
|
34
|
|
Pin
|
1
|
50
|
|
Anti-Dust Washer
|
1
|
**
|
8940168372
|
ECO Change Motor Kit
CP7255
|
22
|
|
Motor Shaft Balancer 3/16” (5mm)
orbital
|
1
|
**
|
8940168373
|
ECO Change Motor Kit
CP7215
|
22
|
|
Motor Shaft Balancer 3/8" (10mm)
orbital
|
1
|
**
|
8940168374
|
ECO Change Motor Kit
CP7225
|
22
|
|
Motor Shaft Balancer 3/32”
(2.5mm) orbital
|
1
|
-
|
1
|
8940163399
|
Housing Assembly red color
|
1
|
10
|
8940163409
|
Air Inlet
|
1
|
11
|
8940163494
|
Spring Pin
|
1
|
12
|
8940163410
|
Lever 3/32" (2.5mm) orbital
|
1
|
-
|
8940163411
|
Lever 3/16" (5mm) orbital
|
1
|
-
|
8940163412
|
Lever 3/8" (10mm) orbital
|
1
|
31
|
8940163455
|
6” (150mm) Pad PSA w/ central
hole
|
1
|
-
|
8940163456
|
6” (150mm) Pad Hook & Loop
w/ central hole
|
1
|
31B
|
8940163457
|
6” (150mm) Pad PSA w/ 6 holes
|
1
|
-
|
8940163458
|
6” (150mm) Pad Hook & Loop
w/ 6 holes
|
1
|
32
|
|
Heat Isolation Washer
|
*
|
28
|
|
Skirt
|
1
|
28A
|
|
Skirt (for SV & CV)
|
1
|
-
|
|
Skirt (for CP7215SV, CP7215SVE)
|
1
|
21
|
8940163421
|
Lock Ring
|
1
|
36A
|
|
Muffler Screw (for SV)
|
1
|
38
|
|
Connector (for SV)
|
1
|
40
|
|
Pin (for SV)
|
1
|
41
|
8940163444
|
Muffler
|
1
|
42
|
|
Vacuum Adapter (for SV)
|
1
|
44
|
8940163447
|
Muffler (for SV)
|
1
|
45
|
|
Vacuum Adapter (for CV)
|
1
|
46
|
|
O-Ring (for CV)
|
1
|
47
|
|
Revolving Connector (for CV)
|
1
|
48
|
|
Screw (for CV)
|
1
|
49
|
|
U nut (for CV)
|
1
|
-
|
8940163525
|
Pad Wrench (not shown)
|
1
|
-
|
8940163495
|
Dust Bag Unit (for SV) (not
shown)
|
1
|
-
|
8940163497
|
Dust Hose (for SV) (not shown)
|
1
|
-
|
8940163220
|
Warning Label (not shown)
|
1
|
-
|
8940163459
|
Tune-Up Kit (Incl: 7,
17, 19, 20, 23, 26, 33 & 50)
|
-
|
8940163460
|
Maintenance Kit
|
-
|
8940163525
|
Pad Wrench
|
1
|
-
|
|
Lock Ring Wrench
|
1
|
-
|
|
Extractor
|
1
|
