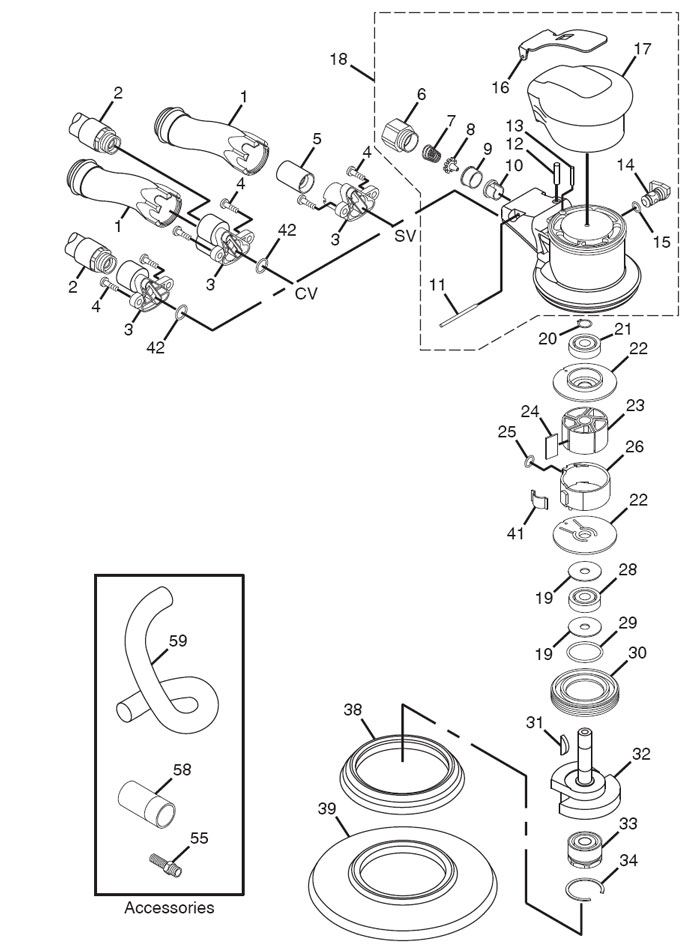

CP7220 - 7250 Palm Sander Repair Parts
Index
No.
|
Part No.
|
Description
|
No.
Req'd
|
|
1
|
6153071510
|
Collector
Tube
|
1
|
|
2
|
6153962560
|
Silencer
|
1
|
|
3
|
6153071480
|
Collector
Silencer (CV)
|
1
|
|
-
|
6153071490
|
Collector
Silencer (SV)
|
1
|
|
-
|
6153071500
|
Collector
Silencer
|
1
|
|
4
|
6156140780
|
Tapping
Screw
|
2
|
|
5
|
6153211910
|
Venturi
|
1
|
|
6
|
6157460720
|
Complete
Adapter
|
1
|
|
7
|
6156810890
|
Valve
Spring
|
1
|
|
8
|
6151550100
|
Valve
|
1
|
|
9
|
6154300220
|
Inlet
Tube
|
1
|
|
10
|
6153211680
|
Valve
Seat
|
1
|
|
11
|
6156371580
|
Roll
Pin
|
1
|
|
12
|
6157900340
|
Valve
Pin
|
1
|
|
13
|
6157900260
|
Pin
|
1
|
|
14
|
6153211930
|
Plug
Valve
|
1
|
|
15
|
6156570050
|
O-Ring
|
1
|
|
16
|
6153212070
|
Lever
|
1
|
|
17
|
6153031110
|
Medium
- Size Handle
|
1
|
|
18
|
8940158339
|
Motor
Handle Assembly
|
1
|
|
19
|
6156540360
|
Dust
Felt
|
2
|
|
20
|
6156880130
|
Circlip
|
1
|
|
21
|
6157580520
|
Ball
Bearing
|
1
|
|
22
|
6154201370
|
End
Plate
|
2
|
|
23
|
6154261060
|
Rotor
|
1
|
|
24
|
8940158347
|
Blade
Set - (5)
|
1
|
|
25
|
6156570040
|
O-Ring
|
1
|
|
26
|
6154001360
|
Cylinder
|
1
|
|
28
|
6157580520
|
Ball
Bearing
|
1
|
|
29
|
6156570180
|
O-Ring
|
1
|
|
30
|
6156731170
|
Motor
Plug
|
1
|
|
31
|
6156300240
|
Woodruff
Key
|
1
|
|
32
|
6155801370
|
Rotor
Shaft (CP7220)
|
1
|
|
-
|
6155801340
|
Rotor
Shaft (CP7250)
|
1
|
|
33
|
6153962550
|
Crankpin
Assembly
|
1
|
|
34
|
6156890530
|
Retainer
Ring
|
1
|
|
35
|
8940158351
|
PSA
Pad 6" (Not Shown)
|
1
|
|
-
|
8940158621
|
PSA
Pad 6" w/ holes (Not Shown)
|
1
|
|
-
|
8940158689
|
Velcro
Sanding Pad
|
1
|
|
-
|
8940158690
|
Velcro
Sanding Pad - Vacuum
|
1
|
|
37
|
8940158352
|
Flat
Wrench (Not Shown)
|
1
|
|
38
|
6153501020
|
Suction
Cap, ID 6" Small
|
1
|
|
39
|
6153501180
|
Suction
Cap, ID 6" Large (CV)
|
1
|
|
40
|
6158726920
|
Nameplate
(Not Shown)
|
1
|
|
41
|
6155740510
|
Silencer
(SV)
|
1
|
|
42
|
6156580860
|
O-Ring
|
1
|
|
44
|
6158726870
|
Warning
Label (Not Shown)
|
1
|
|
55
|
6157050090
|
Nipple
|
1
|
|
58
|
6153501170
|
Vacuum
Hose Adapter
|
1
|
|
59
|
6153962630
|
Hose
Assembly
|
1
|
|
Tune-Up Kit
|
8940158345
|
Incl
Index Nos: 19, 20, 24, 25, 28, 29, 31, 34 & 42
|
|
Maintenance Kit
|
8940158346
|
Incl
Items Not Shown: 6159611730 Baseplate, 6159611640 Pin Wrench,
6159611670 Shouldered Chuck, 6159611690 Extractor,
6159611680 Chuck & 6155952020 Lever
|
|
Dust Extraction Kit
|
8940158430
|
Incl
Items Not Shown: Dust Bag, Clamp & Hose Assembly
|
|
|
|
