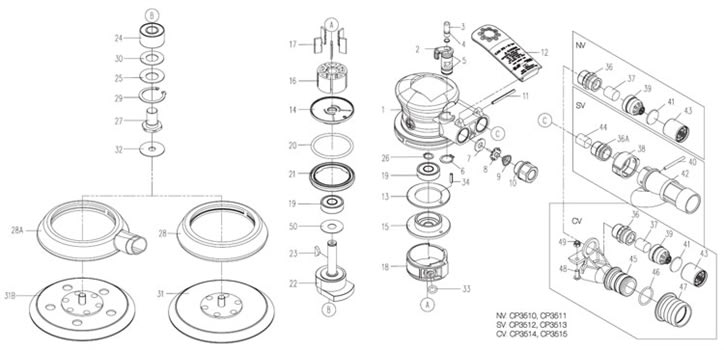

Index
No.
|
Part
No.
|
Description
|
No.
Req'd
|
-
|
8940168367
|
Throttle Kit
|
2
|
|
Regulator
|
1
|
3
|
|
Valve Stem
|
1
|
4
|
|
O-Ring
|
1
|
5
|
|
O-Ring
|
2
|
6
|
|
Retaining ring
|
1
|
-
|
8940168368
|
Valve Seat Kit
|
7
|
|
Valve Seat
|
1
|
8
|
|
Tip Valve
|
1
|
9
|
|
Conical Spring
|
1
|
-
|
8940168369
|
Exhaust Kit (for
CP3510, CP3511, CP3514, CP3515)
|
36
|
|
Muffler Screw
|
1
|
37
|
|
Muffler
|
1
|
39
|
|
Nozzle
|
1
|
41
|
|
Muffler
|
1
|
43
|
|
Muffler Cap
|
1
|
-
|
8940168372
|
ECO Change Motor Kit
CP35
|
13
|
|
Front Ring
|
1
|
14
|
|
Rear End Plate
|
1
|
15
|
|
Front End Plate
|
1
|
16
|
|
Rotor
|
1
|
17
|
8940163417
|
Blades set (5 pcs.)
|
1
|
18
|
|
Cylinder
|
1
|
19
|
|
Bearing
|
2
|
20
|
8940163420
|
O-Ring
|
1
|
21
|
8940163421
|
Lock Ring
|
1
|
22
|
|
Motor Shaft Balancer 3/16" (5mm)
orbital
|
1
|
23
|
|
Rotor Key
|
1
|
24
|
|
Bearing
|
1
|
25
|
|
Bearing Shield
|
1
|
26
|
|
Snap Ring
|
1
|
27
|
|
Blalancer Shaft
|
1
|
29
|
|
Snap Ring
|
1
|
30
|
|
Bearing Seal
|
1
|
33
|
8940163435
|
O-Ring
|
1
|
34
|
|
Pin
|
1
|
50
|
|
Anti-Dust Washer
|
1
|
-
|
-
|
-
|
-
|
1
|
8940163399
|
Housing
Assembly Red Color
|
1
|
10
|
8940163409
|
Air Inlet
|
1
|
11
|
8940163494
|
Spring Pin
|
1
|
12
|
8940163411
|
Lever 3/16" (5mm) orbital
|
1
|
31
|
8940166665
|
5"(125mm) Pad PSA w/o hole
|
1
|
-
|
8940166666
|
5"(125mm) Pad Hook & Loop
w/o hole
|
1
|
31B
|
8940166667
|
5"(125mm) Pad PSA w/ 5 holes
(for SV & CV)
|
1
|
-
|
8940166668
|
5"(125mm) Pad Hook & Loop w/
5 holes (for SV & CV)
|
1
|
32
|
|
Heat Isolation Washer
|
1
|
28
|
|
Skirt
|
1
|
28A
|
|
Skirt (for SV & CV)
|
1
|
36A
|
|
Muffler Screw (for CP3512,
CP3513)
|
1
|
38
|
|
Connector (for CP3512, CP3513)
|
1
|
40
|
|
Pin (for CP3512, CP3513)
|
1
|
41
|
8940163440
|
Muffler
|
1
|
42
|
|
Vacuum Adapter (for CP3512,
CP3513)
|
1
|
44
|
8940163447
|
Muffler (for CP3512, CP3513)
|
1
|
45
|
|
Vacuum Adapter (for CP3514,
CP3515)
|
1
|
46
|
|
O-Ring (for CP3514, CP3515)
|
1
|
47
|
|
Revolving Connector (for CP3514,
CP3515)
|
1
|
48
|
|
Screw (for CP3514, CP3515)
|
1
|
49
|
|
U nut (for CP3514, CP3515)
|
1
|
-
|
8940163525
|
Pad Wrench (not shown)
|
1
|
-
|
8940163495
|
Dust Bag Unit (for CP3512,
CP3513) (not shown)
|
1
|
-
|
8940163497
|
Dust Hose (for CP3512, CP3513)
(not shown)
|
1
|
-
|
8940163220
|
Warning label (not shown)
|
1
|
-
|
8940163459
|
Tune-Up Kit
(Incl: 7, 17, 19, 20, 23, 26, 33 & 50)
|
-
|
8940163460
|
Maintenance Kit
|
-
|
8940163525
|
Pad Wrench (not shown)
|
1
|
-
|
8940163579
|
Lock Ring Wrench
|
1
|
-
|
8940163578
|
Motor Extractor
|
1
|
