CC240W CPS COMPUTE-A-CHARGE? 240 lb Wireless Refrigerant Scale

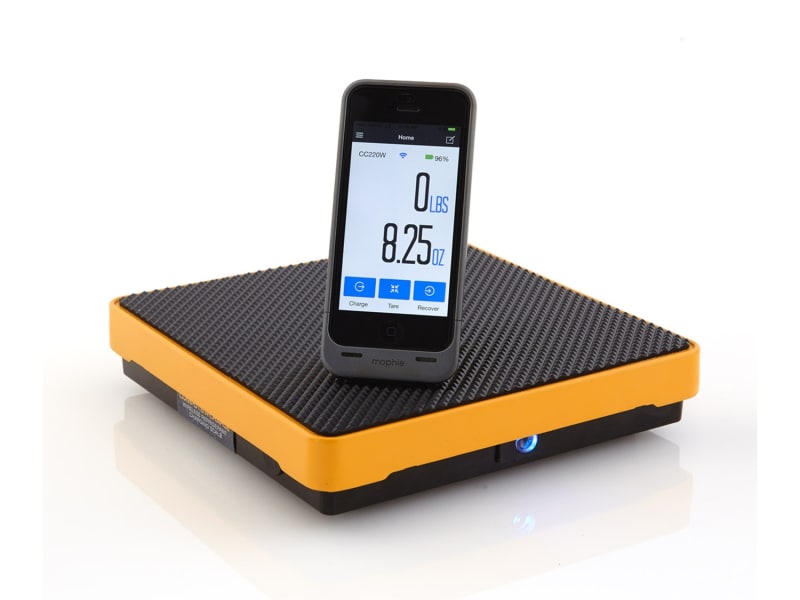

CC240W CPS COMPUTE-A-CHARGE® 240 lb Wireless Refrigerant Scale

Alternative Views:
Price $357.01


Product Code: CPSCC240W
Qty:

Description Prop65

CC240W CPS COMPUTE-A-CHARGE® 240 lb Wireless Refrigerant Scale Has the latest, most advanced technology for unparalleled accuracy, precision and reliability. Recommended by OEMs and professional service technicians for over 30 years, the Compute-A-Charge series of scales have become the preferred tool for accurate, reliable charging of todays advanced AC/R systems. The range consists of fully automatic programmable or manually operated units, with or without wireless remote hand held controls. Models include variations in capacity and resolution specifications to meet all your job specific needs.

• Small size scales with large weight capacities
• Weigh, and recover refrigerants with convenient Scale Link™ app and Android or iOS mobile device
• Patented modular test and measurement system technology (US Patent No. 9,043,161)
• Weight Resolution: ±0.25 oz (5 g)
• Factory calibrated and traceable to strict NIST standards
• Battery operated (4 AA included)
• Indoor/outdoor use
Product Features
  • Operates in the international ISM band for worldwide use
  • Remotely controlled scale platform eliminates clutter
  • Advanced communication software ensures uninterrupted connectivity between hand held display unit and scale platform
  • Powerful 2.4GHz wireless technology for a generous operation range of 30 ft (9m)
  • All controlling functions are on the app creating a more robust charging unit
  • User selectable Imperial or Metric measurement
  • Protective carrying case for storage included
  • Calibrated to strict NIST standards
  • Expanded 240lb / 110kg capacity accommodates most cylinder sizes
  • Full electronic and mechanical overload protection
  • Best in class accuracy: 0.05% of reading or ± 0.2oz / (± 5g) whichever is greater
  • High resolution of ± 0.25 oz (± 10g) through the entire range
  • Operates on four AA alkaline batteries (scale platform) and one 9 volt alkaline battery (display unit)
  • Operates up to 30 continuous hours with one set of batteries (included)
  • Operating temperature: 14 ˚F to 122 ˚F / -10 ˚C to 50 ˚C
  • Operating humidity: 0 to 95% non-condensing
  • Platform dimensions: 10" x 10" x 2"
  • Unit dimensions: 16" x 14" x 3" (Case included)
  • Unit weight: CC240RF (8 lb 14.5 oz) CC840RF (9 lb 13 oz)
  • Made in America
Specifications

CC220W CC240W CC840W
Type Wireless for use with mobile device
Programmable Solenoids No Yes
Maximum Load 220 lb (100 kg) 240 lb (108 kg)
Platform Dimensions 8.75"x8.75"
(22.3 x 22.3 cm)		 10"x10"
(25.4 cm x 25.4 cm)
Display to Scale Connection Patented Wireless CPS Link™' Technology
Transmission Range 30’ (9.1 m)
Frequency Range 2.4 GHz, ISM Band (Worldwide)
Power Source Scale Platform: (4) AA Alkaline (Included)
Display Resolution, oz (g) Increments .25 oz/5g
Weight Accuracy 0.05% of reading
or ± 0.25 oz/5 g (whichever greater)
Unit Weight 5.35 lb (2.4 kg) 8.64 lb (4 kg)
Maximum Working Pressure n/a 500 Psig 34,5 Bar
Maximum Operating Differential n/a 485 Psig 33,5 Bar
Installed Alkaline Battery Life (Continuous On) 75 hr
Installed Alkaline Battery Life (Scale/ Device Disconnected) Up to 1 Year
Battery Status Indicator via CPS Link™ app
Insulating Rubber Platform Cover Yes
Weight Readout lb & oz, or kg & g
Protective Case Soft Case Molded Case
Tare (Empty) Weight Mode Yes
Overload Protection Mechanical (Internal Overload Stop)
Operating Temperature Range 14°F to 122°F (-10°C to 50°C)
Operating Humidity Range 0% to 95% (Non-Condensing)
Approvals FCC, CE, ICES, AS\NZS
