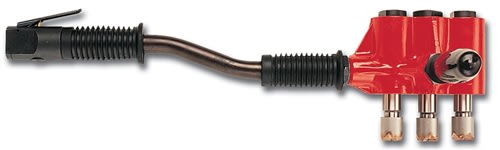

B23 Chicago Pneumatic Triple Head Industrial Piston Scaler

B23 Chicago Pneumatic Triple Head Industrial Piston Scaler

Price $1,275.00
Part #: 6151740420


Product Code: CPTB23
Qty:

Description Prop65

B23 Chicago Pneumatic Triple Head Industrial Piston Scaler - Easy to handle thanks to simple design. Designed for intensive removal applications. Ideal for removal of thick scale, heavy corrosion, and hard coating.
Product Features

Features:

  • Triple head piston scaler for heavy industrial application
  • Furnished tungsten carbide tipped cross bit
  • Furnished side handle for applying head hard to works

Benefits:

  • Easy to handle thanks to simple design
  • Designed for intensive removal applications
  • Ideal for removal of thick scale, heavy corrosion, and hard coating

B23 Specifications:

Part number
 6151740420
Model
 B23
Power (joules)
 5.7 joule
Blows per minute
 2800
Bore
 1.06" (27 mm)
Stroke
 1.04" (26.5 mm)
Chisel rivet set shank
 -
Net weight
 8.1 lb (3.7 kg)
Length
 17.95" (456 mm)
Average air consumption 4 cfm (1.9 l/s)
Actual air consumption 16 cfm (0.1 l/s)
Actual air consumption 16 cfm (7.5 l/min)
Air inlet thread size
 0.25"
Min. hose size
 3/8" (10 mm)
Sound DBA pressure
 92 db(A)
Sound Power
 93 db(A)
Vibration (ISO-8662-14)
 17.6 m/sē
Vibration a (ISO-28927-9) 23.18 m/sē
Vibration K (ISO-28927-9) 32.45 m/sē
