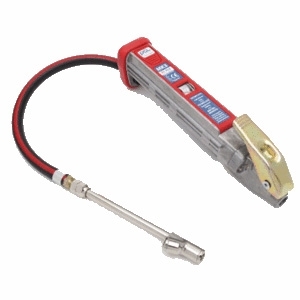

ALG3A19 PCL Air Technology Heavy Duty Tire Inflator 0-138 Psi 21" Hose Straight & Angled Chuck

ALG3A19 PCL Air Technology Heavy Duty Tire Inflator 0-138 Psi 21" Hose Straight & Angled Chuck

Price $55.10


Product Code: PCLALG3A19
Qty:

Description Prop65


PCL Air Technology ALG3A19 Heavy Duty Tire Inflator 0-138 Psi with 21" Hose and Twin Straight and Angled Chuck - The highly regarded, classic MK3 Heavy Duty Tire Inflator has become industry standard in garages, gas stations, and tire shops, and is popular amongst operators and tire installers for its reliability and accuracy, and sturdy yet slim line design.

The MK3 Tire Inflator, is robust and highly accurate, offering leading inflation and deflation rates and high performance both indoor and outdoor. Meanwhile the redesigned valve arrangement and larger hose allows air flows up to 30% faster, representing substantial labor-savings for operators.

The MK3 Tire Inflators are available with a wide choice of tire chucks and hose lengths to suit all tire inflation applications.

Product Features
  • Extremely accurate with testing standards greater than +/- 2 psi (complies with EC Directive 86/217)
  • Each unit comes complete with its own individual testing calibration certificate
  • Each unit is serialized with date code tied to manufacturing date
  • Compliant to the current California Tire Pressure Proposal
  • In a side by side comparison - 30% faster than anything on the market today
  • Inflate and deflate air pressure while staying engaged on the tire valve stem
    • Press the trigger all the way to inflate
    • Press the trigger 1/2 way to deflate
    • Release the trigger to get a reading
  • Various Hose Lengths available
  • Various Tire Chucks available
  • Hose has male NPT threads to allow customer to change out connectors
  • Can inflate tires up to 138 psi
  • Larger capacity units can inflate up to 300 psi

SPECIFICATIONS

  • Accuracy: Exceeds EC Directive 86/217
  • Reading Accuracy: 2 psi
  • Max Inlet Pressure: 232 psi
  • Inflation Flow: 18 cfm @ 190 psi supply
  • Hose Length: 21"
  • Chuck Type: Twin Straight and Angled
  • Calibration: 0 to 138 psi in 2 psi units
  • Operating Temperature: 14°F to 140°F (-10°C to 60°C)
  • Storage Temperature: -22°F to 176°F (-30°C to 80°C)
    • 100% Tested to 2 psi Standard

Approvals

  • Compliance: EC Directive 86/217 and BS EN 12645:1999

Dimensions

  • Length: 10.4"
  • Width: 1.9"
  • Weight: 1.34 lbs
