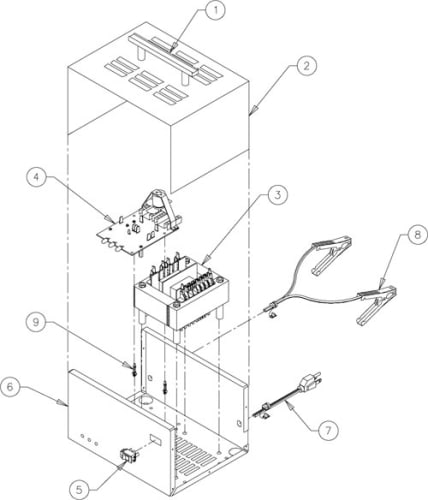

MODEL 9420 REPAIR PARTS

  1. Handle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 610619
  2. Cabinet top . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 610755
  3. Transformer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 610925
  4. Circuit board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 610926
  5. Rate Selector Switch . . . . . . . . . . . . . . . . . . . . . . . . . 610620
  6. Cabinet base . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 610927
  7. A.C. Cord . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 610928
  8. D.C. Cord . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 610886
  9. Stand-off (Set of 2) . . . . . . . . . . . . . . . . . . . . . . . . . . 610759
MAINTENANCE INSTRUCTIONS
Worn clamps should be replaced. Worn parts can lead to poor connections and present a safety hazard. See parts list for part number of D.C.
Cord kit. Any Maintenance or repair of this unit that involves disassembly of the cabinet should be done only by a qualified serviceman.
Incorrect reassembly may result in a risk of electric shock when the unit is subsequently used.
Sort By:
Page of 1
610619 Associated Battery Charger Handle 610619 Associated Battery Charger Handle

610619 Associated Battery Charger Handle

Price $18.17
610620 Associated Selector Switch 610620 Associated Selector Switch

Associated Selector Switch

Price $18.30
610759 Associated Stand Off (Set Of 2) 610759 Associated Stand Off (Set Of 2)

610759 Associated Stand Off (Set Of 2)

Price $10.53
610886 Associated DC Cable Set With Clamps 610886 Associated DC Cable Set With Clamps

Associated DC Cable Set

Price $116.05
610925 Associated Transformer 12V 20A No Crnk 9420 610925 Associated Transformer 12V 20A No Crnk 9420

610925 Associated Transformer 12V 20A No Crnk 9420

Price $213.03
610926 Associated PC Board Assembly 610926 Associated PC Board Assembly

Associated PC Board Assembly. For new style units only. Your unit must have connections matching this board to work properly. Identify your new style unit by the momentary mode switch on the front of the unit.

Price $270.50
610928 Associated 7ft 115 Volt AC Power Cord 610928 Associated 7ft 115 Volt AC Power Cord

610928 Associated 7ft 115 Volt AC Power Cord

Price $67.30
9425 Associated 20 Amp 12 Volt Automotive Battery Charger With Intellamatic III 9425 Associated 20 Amp 12 Volt Automotive Battery Charger With Intellamatic III

Made in the USAThis automotive charging system can perform the function of a battery charger, trickle charger, and a battery tender (can be left connected to battery to maintain charge) as well as "DEEP DISCHARGE RECOVERY" and best of all it's Made in America.

Price $407.19
