9038A IPA Relay Bypass Switch w/ Amp Loop

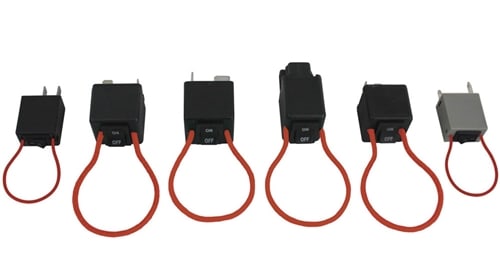

9038A IPA Relay Bypass Switch Kit with Amp Loop

Price $126.95


Product Code: IPA9038A
Qty:

Description Prop65

The Relay Bypass Switch with Amp Loop energizes fuel pumps and any 12V relay by powering a DC motor for testing. It also makes DC motor actuation and current monitoring easy. By attaching an Amp Clamp or Lab Scope, you can monitor the current or amperage readings. It allows a technician to judge the health of the DC electric motor to identify if a motor is drawing more current than specified, or if the current load is inconsistent during operation.
Product Features
  • Controls relay circuit independent of Key On systems
  • Run all automotive
  • 12V DC motors with a push of a switch
  • Simplifies fuel injection testing
  • Use in conjunction with clamp-on Amp Probes and Lab Scopes
  • Operating range: Up to 20 amp continuous, 30 amp surge (12V); covers most makes and models
  • Includes: #9036-1A - Small Spade; #9036-2A - Medium Spade Relay; #9036-3A - Large Spade Relay; #9037-1A - Small Rectangular Relay; #9037-2A - Square Relay; #9037-3A - Large Rectangular Relay
