9037 IPA Fuel Pump Relay Bypass Kit II

9037 IPA Fuel Pump Relay Bypass Kit II

Price $52.95


Product Code: IPA9037
Qty:

Description Prop65

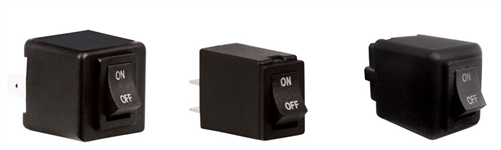

The Relay Bypass Switch plugs in place of the fuel pump relay and provides direct control over the fuel pump circuit. It can be used to actuate the fuel pump when the engine is not running, allowing the fuel pressure to be read. Operating Range: 20 Amp Continuous, 30 Amp Surge (12V)
Product Features
  • Allows easy testing of fuel injection pressure by energizing the fuel pump while the engine is off
  • Relay Bypass allows a technician to control fuel pump independent of Key On systems
  • Operating range: 20 amp Continuous, 30 amp Surge (12V), Plugs in place of relay
  • Includes: (#9037-1) Small Spade Relay - For use on GM, Chrysler, and Japanese 1985-2008; (#9037-2) Medium Spade Relay - For use on BMW 1995-2006; (#9037-3) Large Rectangular Relay - For use on GM, Chrysler, and Japanese 1995-2007
