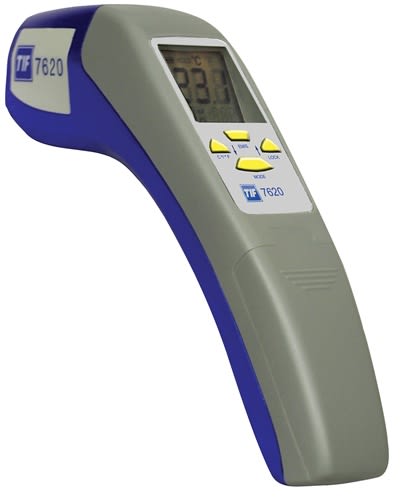

7620 TIF IR Thermometer Pro - 20:1 -76 to +1400ºF

7620 TIF IR Thermometer Pro - 20:1 -76 to +1400°F

Price $105.27


Product Code: TIF7620
Qty:

Description Prop65

To measure a surface temperature, the user aims the IR Thermometer at the target, presses a button, and reads the temperature display. The device has an optical lens that collects the radiated infrared energy from the object and focuses it on the detector. The detector converts the energy into an electrical signal that's amplified and displayed as a temperature reading. An infrared thermometer measures temperature by sensing the magnitude of radiated energy at infrared frequencies. Using this data and the actual temperature of the detector, the thermometer calculates the temperature of the surface that emitted the energy.
Product Features
  • Distance: Spot - 20: 1
  • SoC (System-on-a-Chip)Technology – Complete IR design is incorporated inside of a single chip, reducing space and enable to create compact and light weight units
  • Innovative optical lens – high accuracy measurements; wide temperature range
  • Laser pointer – Easy to define the target area to be measured
  • Extend temperature – includes a thermocouple interface that can extend the temperature up to 1999°F.
  • Simple and easy to operate – Simply point at desired target and press the trigger button for a temperature reading.
  • Set alarm temperatures (Low and High Temperatures) to receive alert information when the you are measured out of the range.
  • Maximum (MAX), Minimum (MIN), Different between MAX and MIN (DIF) and Average (AVG) modes.
  • The new TIF IR thermometers incorporate visual low battery indication and simple operation of two “AAA” batteries.

Measurement Range:     -76 to +1400°F (-60 to +760°C)
Thermocouple Measurement Range:     -83.2 to +1999°F (-64 to +1400°C)
Accuracy: Tobj=59°-95°F (15-35°C) Tamb=77°F (25°C):     ±1.8°F (1.0°C)
Accuracy: Tobj= -27-932°F (-33-500°C) Tamb= 73°F ±5°F (23 ± 3°C):     ±2% of reading or 4°F (2°C) whichever is greater
Thermocouple Accuracy:     ±1% of reading or 1.8°F (1°C) whichever is greater (Test under Tamb=73±11°F [23+6°C])
Emissivity:     Adjustable
Resolution: 14.2° F~199.9° F (-9.9~199.9°C):     0.1°F/0.1°C (1° below 9.9 and above 199.9)
Spectral Response:     8 ~ 14ìm
Response Time (90%):     .5 sec
Distance:Spot:     20:1
