Product Features

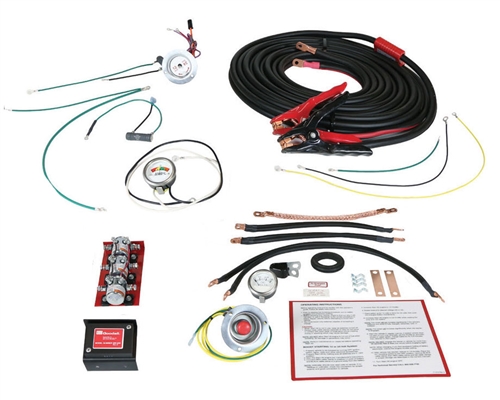

- Upgrade kit for 11-716 and 11-718 dual cable set Start-All units
- For 12-volt only boosting
- This kit contains the parts needed to convert the older two cable system to a single cable, fully voltage regulated system.
- The benefits include:
- Regulated voltage (eliminates over voltage possibility)
- Easier to use, user friendly (all controls and instructions mounted on one side)
- One ON/OFF switch
- One set of cables with polarity indicator and Antizap® protection (Easier for operator to hook up with correct/incorrect warning lights. Full power realized through single cable set.)
- 800 amp clamps with full-power jaws, 30 ft. 1/0 cable
- Low battery warning light
- Surge protection
- Volt and amp meters to monitor boosting output
Shipping Weight: 38 lbs.
61-800 Parts List
|
Item
|
Part
No.
|
Qty
|
Description
|
1
|
890-635S
|
1
|
Voltage Control Module
|
2
|
710-514
|
1
|
Instruction Label
|
3
|
710-527
|
1
|
Unit-On-Up-Off-Center Label
|
4
|
71-520S
|
1
|
Ammeter
|
5
|
71-506S
|
1
|
Voltmeter 0-18 VDC
|
6
|
890-344
|
1
|
Switch Assembly
|
7
|
77-321S
|
1
|
Resistor Assembly
|
8
|
890-818
|
1
|
Wire Assembly, Red Jumper 2.5"
|
9
|
890-304
|
1
|
Wire Assembly, Brown Jumper 2" |
10
|
70-436S
|
1
|
Cable Assembly, 1/0 with 800A Clamps
|
11
|
890-316
|
1
|
Wire Assembly, 18", 18 gauge, Black
|
12
|
890-317
|
1
|
Wire Assembly, 21" / 11", Green |
13
|
890-342
|
1
|
Wire Assembly, 28.5", Yellow |
14
|
890-990
|
1
|
Wire Assembly, 11", Green |
15
|
890-420
|
1
|
Wire Assembly, 13", 4 gauge
|
16
|
890-419
|
1
|
Wire Assembly Generator to Finish
Assembly
|
17
|
880-205
|
3
|
Shunt Strap 1/16" Thick
|
18
|
680-049
|
1
|
Loop Cable Clamp
|
19
|
680-494
|
1
|
Grommet, Round Rubber
|
20
|
77-181S1
|
2
|
Solenoid
|
21
|
FORM 744
|
1
|
61-800 Upgrade Manual
|
|
|
|
|
|
|
