6042 Associated Carbon Pile Tester Parts Listing (Old Style)

  1. 15 carbons; 7 cupped - 8 flat; older units have 4 wire amp pickup.
  2. The p/n 610301 is an inductive pickup calibrated to the circuit board. If you purchase the pickup or circuit board individually you must have the 610319 calibration fixture.
  3. There are two versions of this unit, inspect your unit for proper fitment before purchasing parts
Part # Description
610290 Field Switch
610291 Volts Switch
610292 Zero Adjust Switch
610293 Load Knob (3/8 shaft diameter)
610293 Ext. Volt Leads
610294 Pilot Light
610295 Zero Adjust Knob
610296 Circuit Breaker
610297 Load Cables
610298 External Volt Leads
610299 Field Wire
610300 Carbon Pile Assy (1/4 ID Shaft)
610301 Circuit Board w/Pickup
610302 Carbon Stack (3/8 diameter)
610303 Wheel w/lnsert
610305 Handle
610315 Inductive Pickup (4 Wire)
610319 Calibration Fixture
610509 Ceramic Tube (3/8 inside diameter)
610809 Load Knob (1/4 shaft diameter)
610816 Carbon Stack (1/4 diameter)
610817 Ceramic Tube (1/4 inside diameter)
610873 Inductive Pickup Only (4 wire)
017-0032 Heyco for Inductive Pickup
017-0062 Heyco for External Lead Set
020-0245 .25" Shaft Only
076-0031 Return Spring
132-0030 Circuit Board Only
Sort By:
Page of 1
6042 Associated Battery/Electrical System Tester 12/24v 500a Digital 6042 Associated Battery Electrical System Tester 12/24V 500A Digital

Made In USADesigned with highest quality and versatility in mind. Interprets data from the charging/starting system on easy-to-read LED display voltmeter and ammeter. Also shows +/- amps for easy diagnosis of current leakage problems. The 500 amp, carbon pile variable load capability, provides accurate load testing for up to 1,000 CCA batteries. A great time-saver for testing electrical systems on 12, 12/24 and 24 volt vehicles. Features include Large, easy to read, LED digital AMPS and VOLTS meters. Displays voltages to ±99.9 volts DC on the EXT position and up to 35.0 volts DC on the INT position. The AMP meter displays DC currents up to 999 amps and reads both + and - amps for easy diagnosis of leakage current problems. The carbon pile is rated 500 amps on 12 volt batteries for load testing batteries up to 1000 CCA capacity. Curved carbon discs allow better low end resolution of current and longer life. Defective Diode indicator light lets you know when alternator output diodes or GM diode trios have failed.

Price $2,310.81
Free Shipping
6043 Associated Inductive Amp Clamp Accessory 1000 Amp 6043 Associated Inductive Amp Clamp Accessory 1000 Amp

Made In USAThe Associated 6043 inductive amp probe is capable of measurements up to 1000A. The large 2" jaw opening allows for easy use on the largest set of cables.  Compatible with most Digital Multimeters, the unit comes with a 10 ft. coiled cord with standard banana plugs.  The unit has two settings 200A and 1000A for improved accuracy and a zeroing button for use on DC circuits.  LED's indicators include a power "ON" as well as a "LOW BATTERY".  Unit is powered by a standard 9V battery for long life.

Price $216.61
610290 Associated Rocker Field Switch 610290 Associated Rocker Field Switch

Rocker Field Switch

Price $31.30
610291 Associated Rocker Volt Switch (Momentary) 610291 Associated Rocker Volt Switch (Momentary)

Associated Rocker Volt Switch

Price $31.70
610292 Associated Zero Adjust Switch With Knob 610292 Associated Zero Adjust Switch With Knob

Potentiometer with Resistance of 100kΩ. Includes (3) panel nuts and a friction washer for mounting and a set screw knob.

Price $63.40
610293 Associated Load Knob 3/8" Shaft 610293 Associated Load Knob 3/8" Shaft

610293 Associated Load Knob 3/8" Shaft

Price $25.70
610294 Associated Indicator Light 610294 Associated Indicator Light

Associated 610294 INDICATOR LIGHT

Price $20.60
610295 Associated Zero Adjust Knob 610295 Associated Zero Adjust Knob

ZERO ADJUST KNOB

Price $20.60
610297 Associated 4 AWG Output DC Cable Clamp Assembly 96" Set 500 Amp 610297 Associated 4 AWG Output DC Cable Clamp Assembly 96" Set 500 Amp

610297 Associated 4 AWG Output DC Cable Clamp Assembly 96" Set 500 Amp
Stranded Copper Leads, 96" Long & "Flexi-Spring" 500 Amp Clamps,
Side Post Terminal Adapters Included.

Price $254.30
610298 Associated External Voltage Leads 610298 Associated External Voltage Leads

610298 Associated External Voltage Leads

Price $54.25
610299 Associated Field Wire Lead 610299 Associated Field Wire Lead

610299 Associated Field Wire Lead

Price $31.80
610300 Associated Carbon Pile Assembly (1/4" I.D. Shaft) 610300 Associated Carbon Pile Assembly (1/4" I.D. Shaft)

610300 Associated Carbon Pile Assembly (1/4" I.D. Shaft)

Price $530.40
610301 Associated Circuit Board With Pickup 610301 Associated Circuit Board With Pickup

Replacement Printed Circuit Board Inductive Amp Clamp. Replaces older unit That Require Clamp Only Replacement (obsoleted). Requires Calibration When Installed.

Discontinued
610302 Associated Carbon Pile Stack (3/8" Diameter) 610302 Associated Carbon Pile Stack (3/8" Diameter)

610302 Associated Carbon Pile Stack (3/8" Diameter)

Price $247.60
610303 Associated Wheel W/Insert 6042 610303 Associated Wheel W/Insert 6042

610303 Associated Wheel W/Insert 6042

Price $42.14
610305 Associated Handle 6042 610305 Associated Handle 6042

610305 Associated Handle 6042

Price $37.42
610319 Associated Amp Clamp Circuit Board Calibration Tool 610319 Associated Amp Clamp Circuit Board Calibration Tool

Associated Amp Clamp Circuit Board Calibration Tool. Calibrated amp fixture for 6042 and others. An absolute necessary tool when istalling a new amp pickup clamp or circuit board .

Price $191.30
610509 Associated Ceramic Tube 3/8" I.D. 610509 Associated Ceramic Tube 3/8" I.D.

610509 Associated Ceramic Tube 3/8" I.D.

Price $16.80
610809 Associated Load Knob 1/4" Shaft 610809 Associated Load Knob 1/4" Shaft

610809 Associated Load Knob 1/4" Shaft

Price $36.60
610816 Associated Carbon Pile Stack (1/4" Diameter) 610816 Associated Carbon Pile Stack (1/4" Diameter)

610816 Associated Carbon Pile Stack (1/4" Diameter)

Price $246.80
610817 Associated Ceramic Tube 1/4" I.D. 610817 Associated Ceramic Tube 1/4" I.D.

610817 Associated Ceramic Tube 1/4" I.D.

Price $15.20

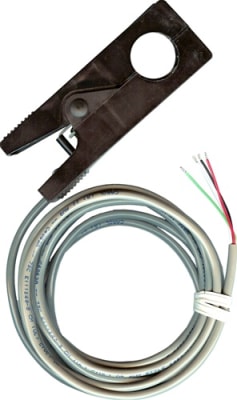

610873 Associated 4 Wire Inductive Pickup 610873 Associated 4 Wire Inductive Pickup

610873 Associated 4 Wire Inductive Pickup. Does not include the circuit board. Calibration to the unit is required. (See tool # 610319)
Notice: If the circuit board and clamp need replacing, please read the following. Any 6042 with a serial number of 004500 and earlier will need to be returned to Associated for retrofit if the repair requires replacing the Circuit Board, the retrofit replaces both board and a new pickup clamp with a new style Current Clamp board assembly. This affects all 6042 units manufactured before June 2007.

Price $185.50
611156 Associated Circuit Board 6042 Sn# 004501 & Up 611156 Associated Circuit Board 6042 Sn# 004501 & Up

Circuit Board 6042 Sn# 004501 & Up

Price $991.30
